DTC P0505: Idle Control System Malfunction

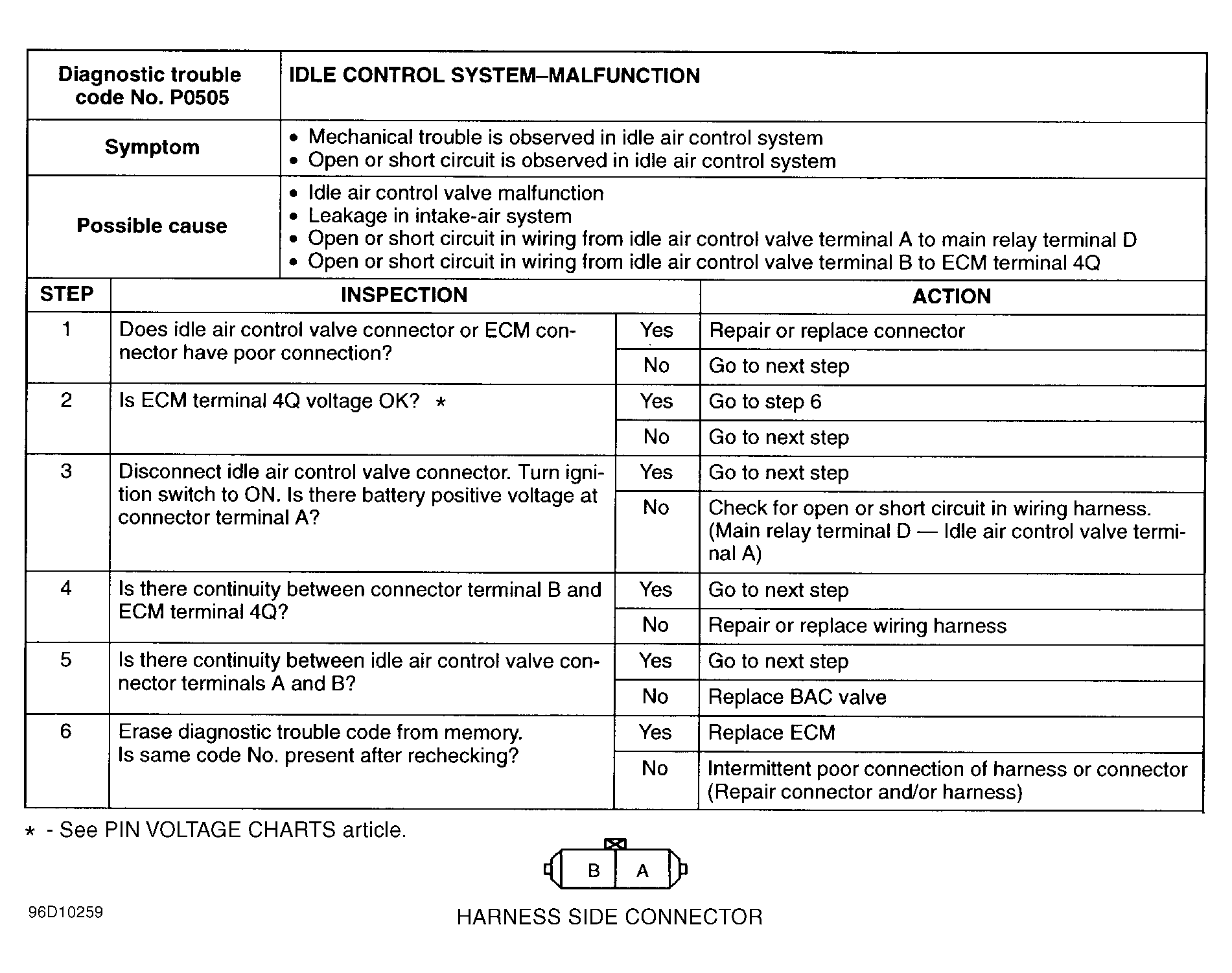

Fig 1: DTC P0505 Idle Control System Malfunction

G96D10259

Courtesy of MAZDA MOTORS CORP.
