DTC P0440: EVAP Control System Malfunction

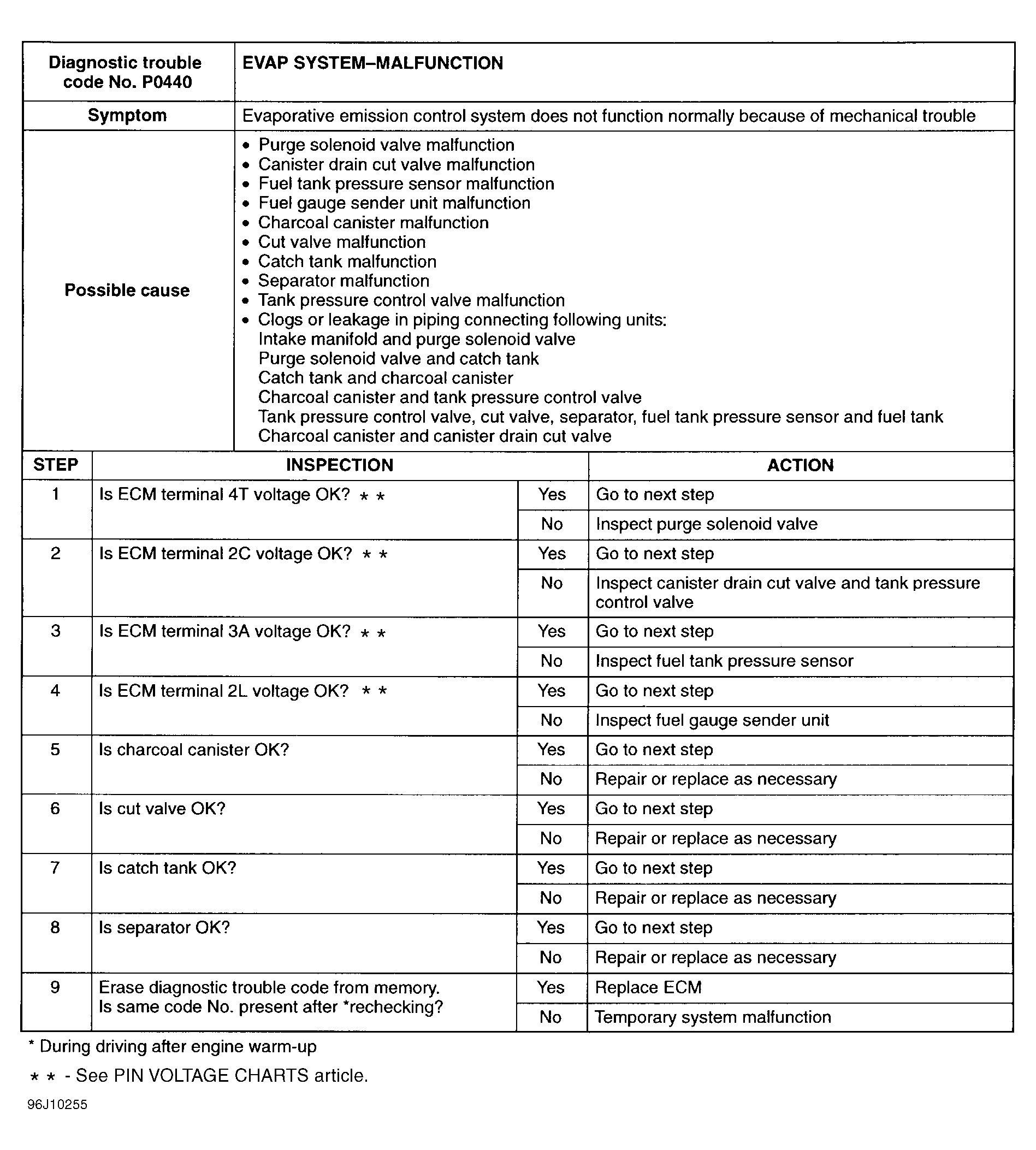

Fig 1: DTC P0440 EVAP Control System Malfunction

G96J10255

Courtesy of MAZDA MOTORS CORP.
