DTC P1170: Front Heated Oxygen Sensor - Inversion

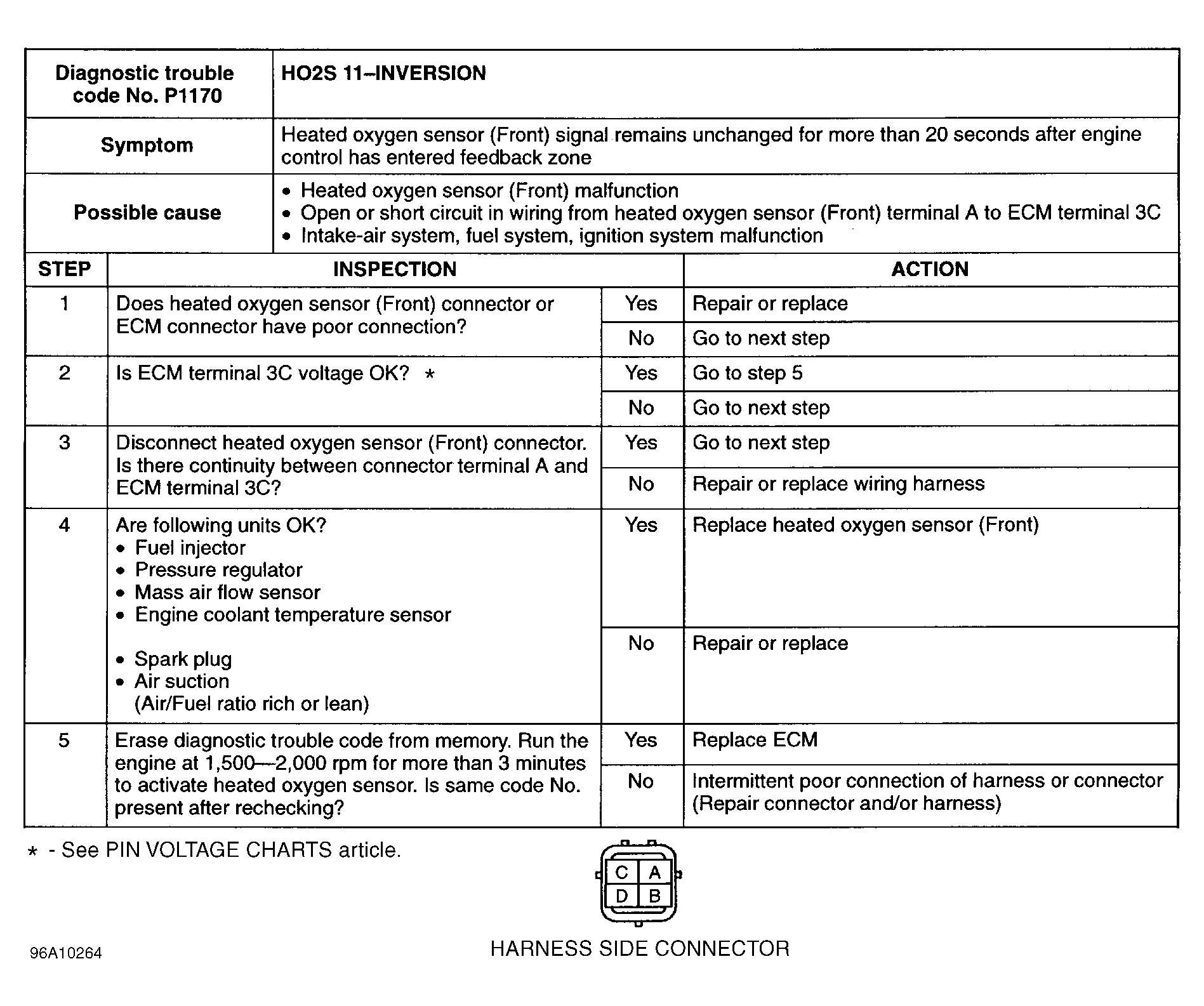

Fig 1: DTC P1170 Front Heated Oxygen Sensor - Inversion

G96A10264

Courtesy of MAZDA MOTORS CORP.
