Home >> Mazda >> 1996 >> MPV DX >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Diagnostic Trouble Code Charts >> DTC P1110: Intake Air Temperature Sensor - Dynamic Chamber

DTC P1110: Intake Air Temperature Sensor - Dynamic Chamber

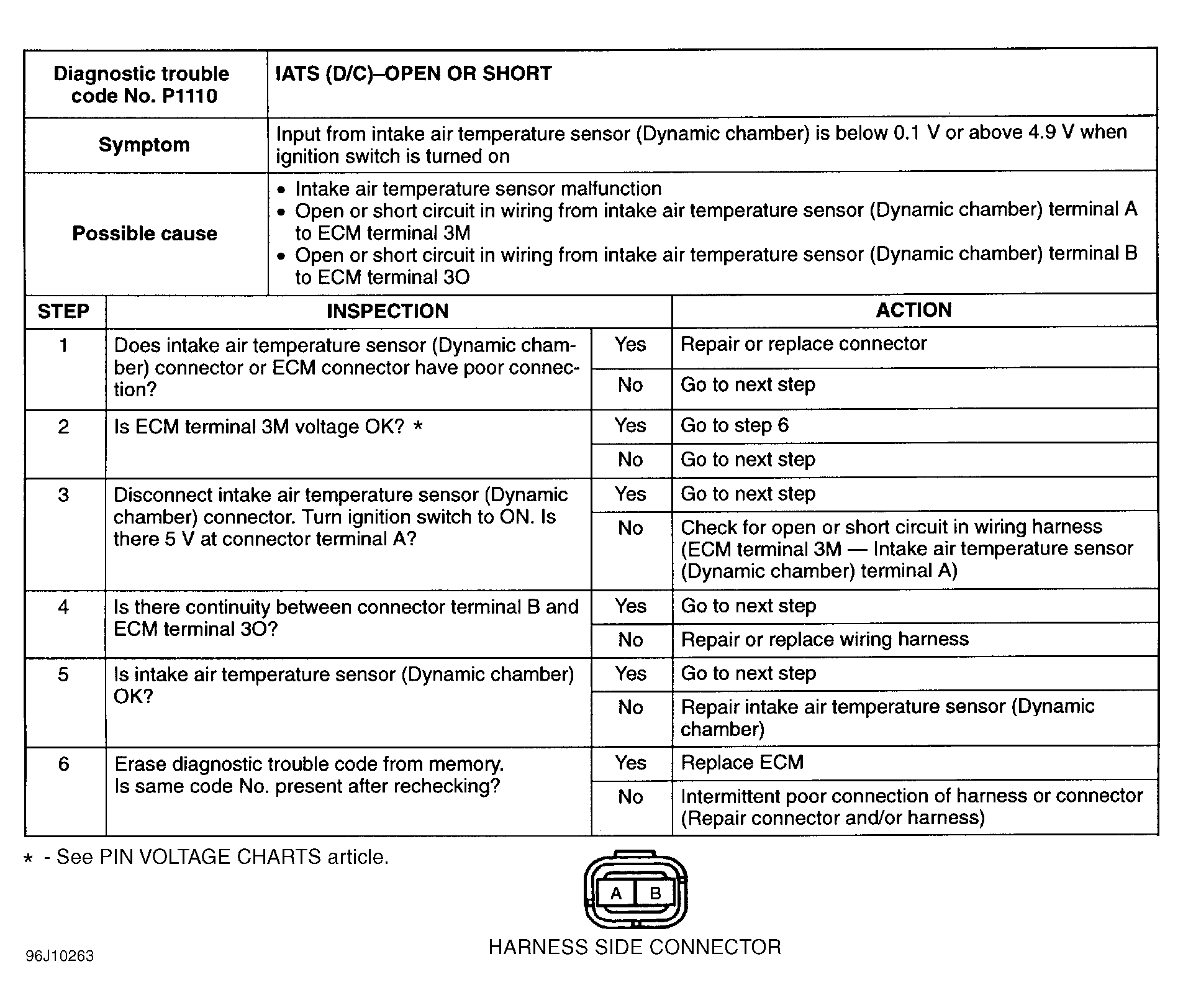

Fig 1: DTC P1110 Intake Air Temperature Sensor - Dynamic Chamber

G96J10263

Courtesy of MAZDA MOTORS CORP.
