Home >> Mazda >> 1996 >> MPV DX >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Diagnostic Trouble Code Charts >> DTC P0703: Brake Switch Input Malfunction

DTC P0703: Brake Switch Input Malfunction

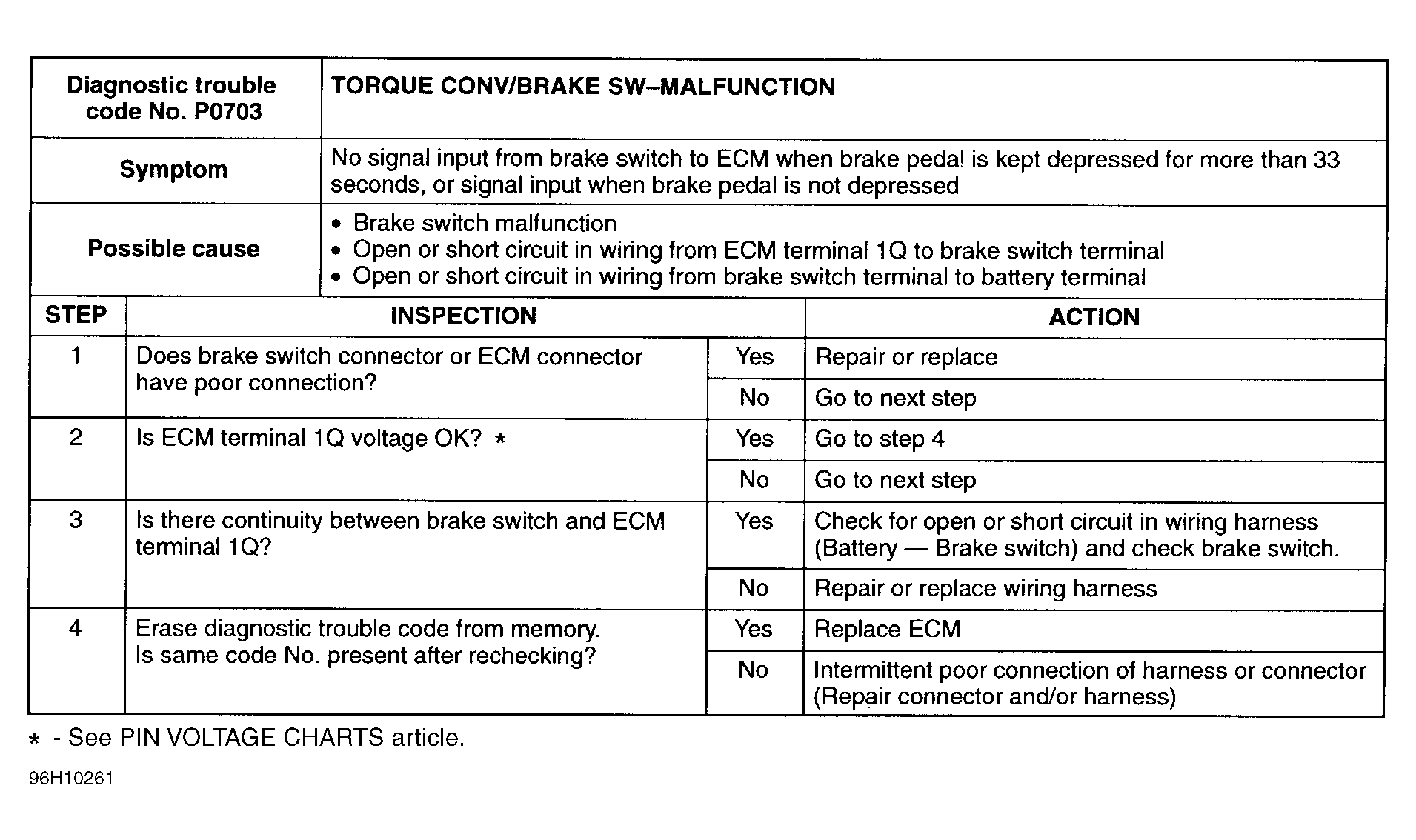

Fig 1: DTC P0703 Brake Switch Input Malfunction

G96H10261

Courtesy of MAZDA MOTORS CORP.
