DTC P0443: EVAP System Purge Control Valve CKT Malfunction
DTC P0443: EVAP System Purge Control Valve CKT Malfunction

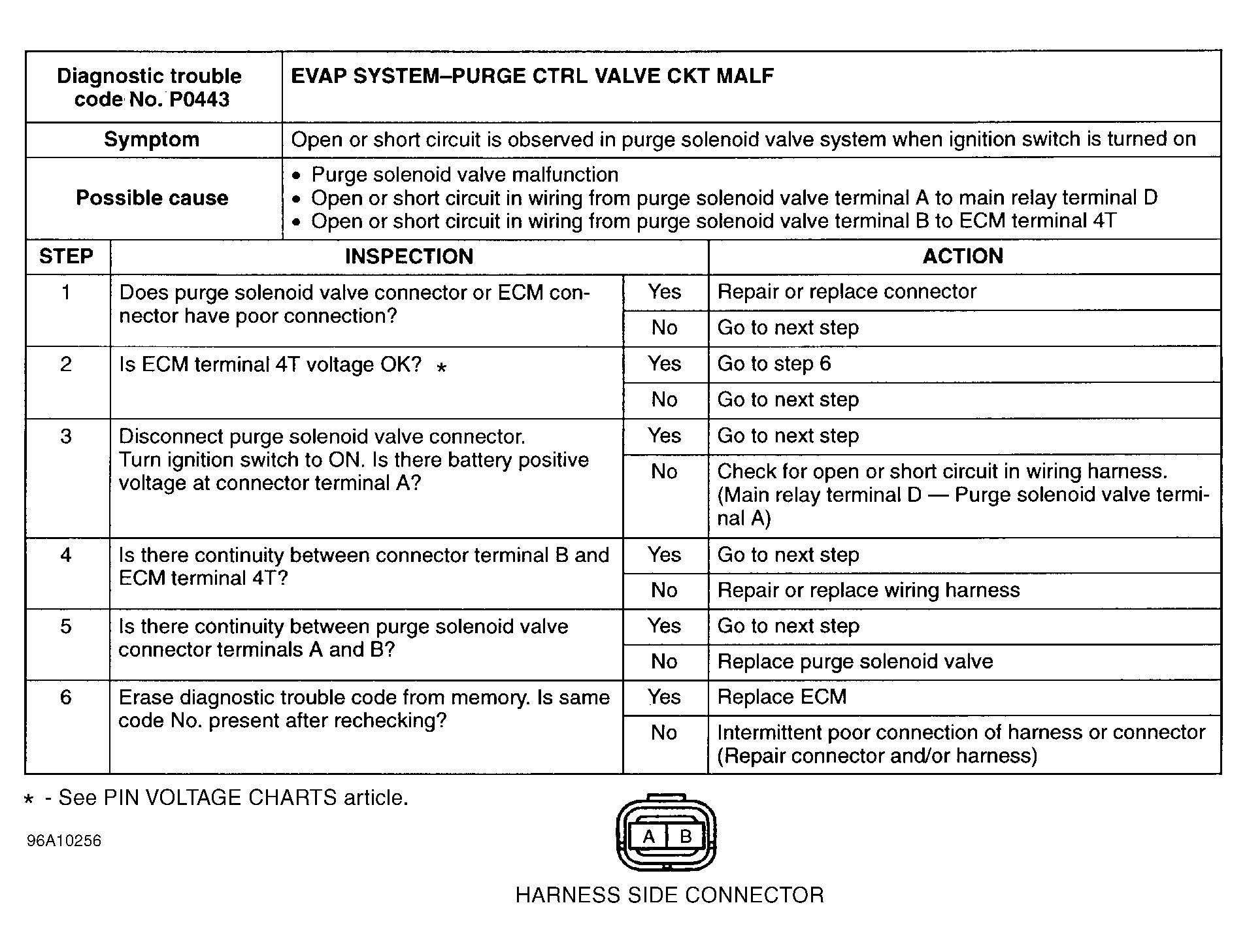

Fig 1: DTC P0443 EVAP System Purge Control Valve CKT Malfunction
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
