DTC P0120: Throttle Position CKT Malfunction

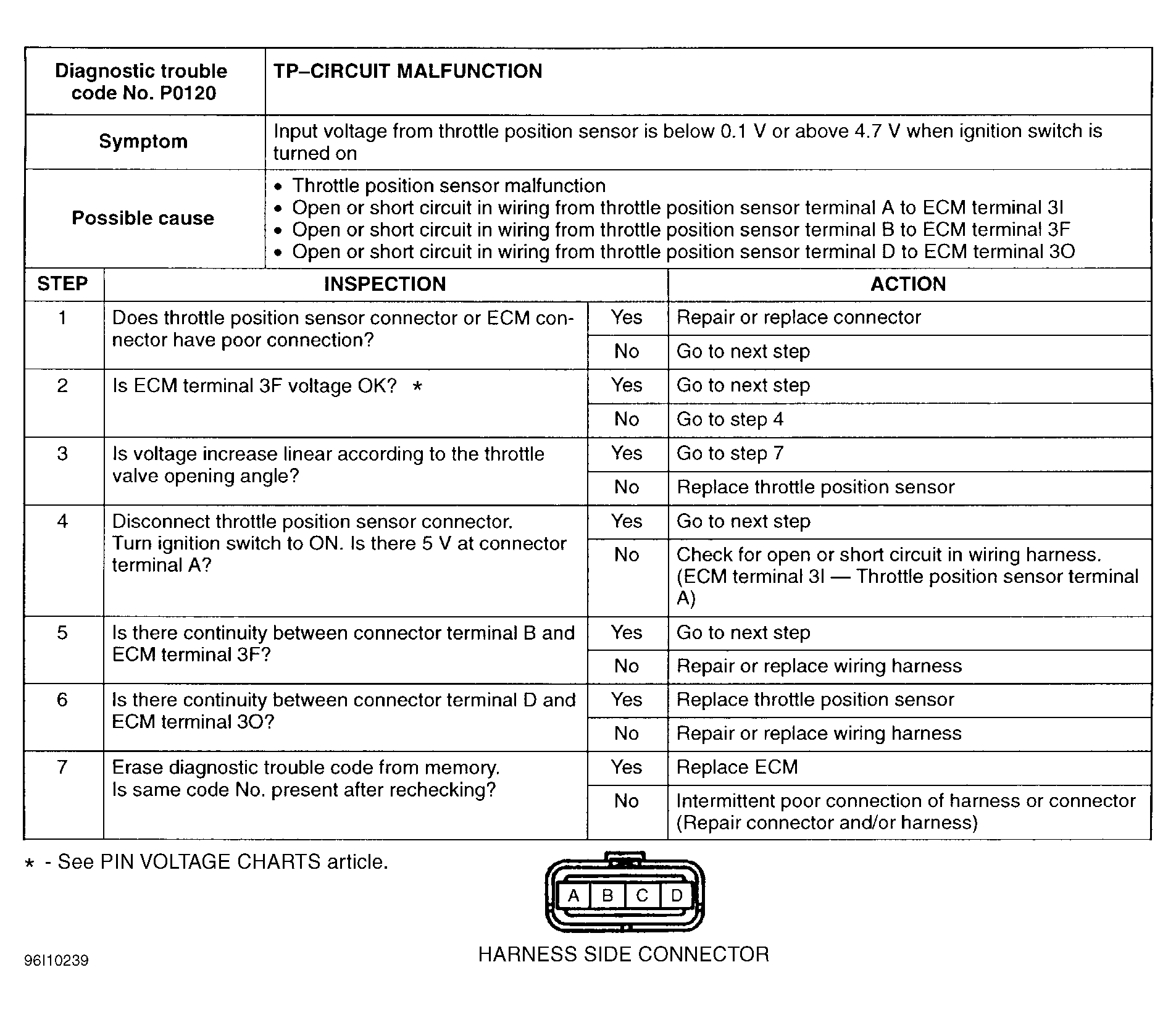

Fig 1: DTC P0120 Throttle Position CKT Malfunction

G96I10239

Courtesy of MAZDA MOTORS CORP.
