Home >> Mazda >> 1996 >> MPV DX >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Diagnostic Trouble Code Charts >> DTC P0110: Intake Air Temperature CKT Malfunction

DTC P0110: Intake Air Temperature CKT Malfunction

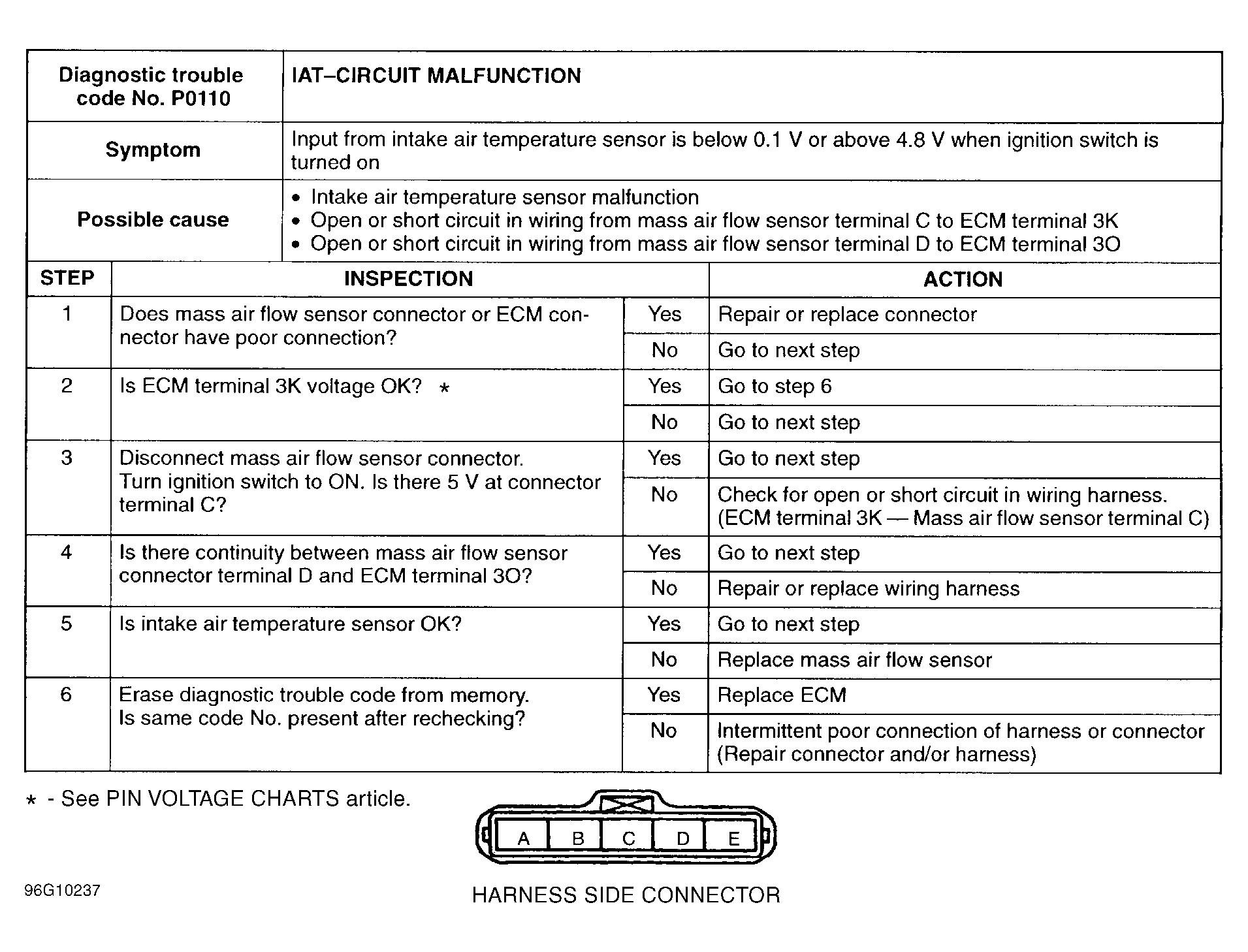

Fig 1: DTC P0110 Intake Air Temperature CKT Malfunction

G96G10237

Courtesy of MAZDA MOTORS CORP.
