Starter - Reduction Gear: Overhaul

NOTE: Overhaul procedures are not available from manufacturer. See illustrations for exploded views of starters. See Fig 1 or Fig 2 .

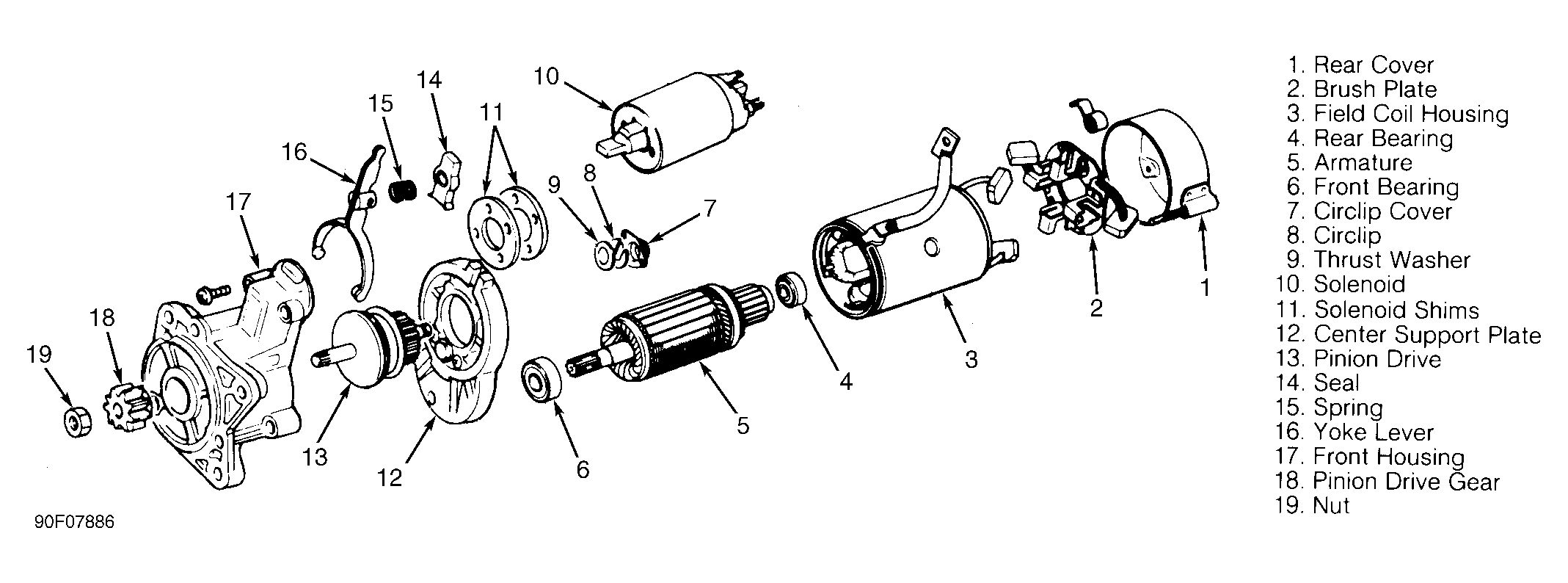

Fig 1: Exploded View Of Coaxial Planetary Gear Type Starter (V6)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Exploded View Of Offset Gear Drive Type Starter (4-Cyl.)

Courtesy of MAZDA MOTORS CORP.
