Power Distribution Box Identification (1994): Notes

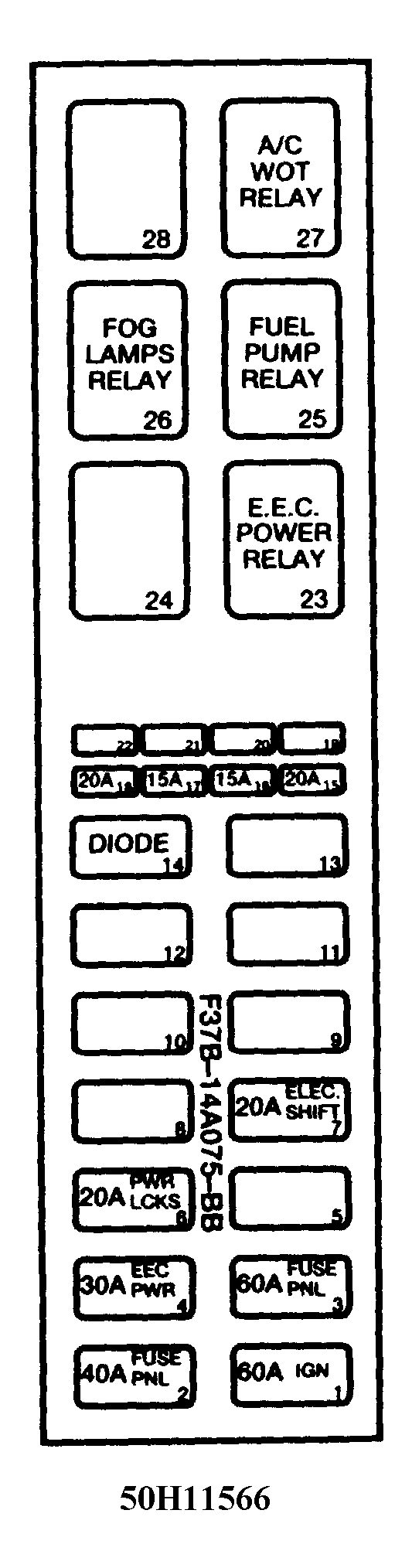

Fig 1: Main Underhood Fuse Block

Courtesy of MAZDA MOTOR OF AMERICA, INC.

WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
