Rear Door Release Handle Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door lower trim. (See REAR DOOR LOWER TRIM REMOVAL/INSTALLATION .)
  2. Remove the rear door upper trim. (See REAR DOOR UPPER TRIM REMOVAL/INSTALLATION .)
  3. Remove the bolts, then remove the rear door release handle.
  4. Detach the rear door upper and lower latch cables.
  5. Install in the reverse order of removal.

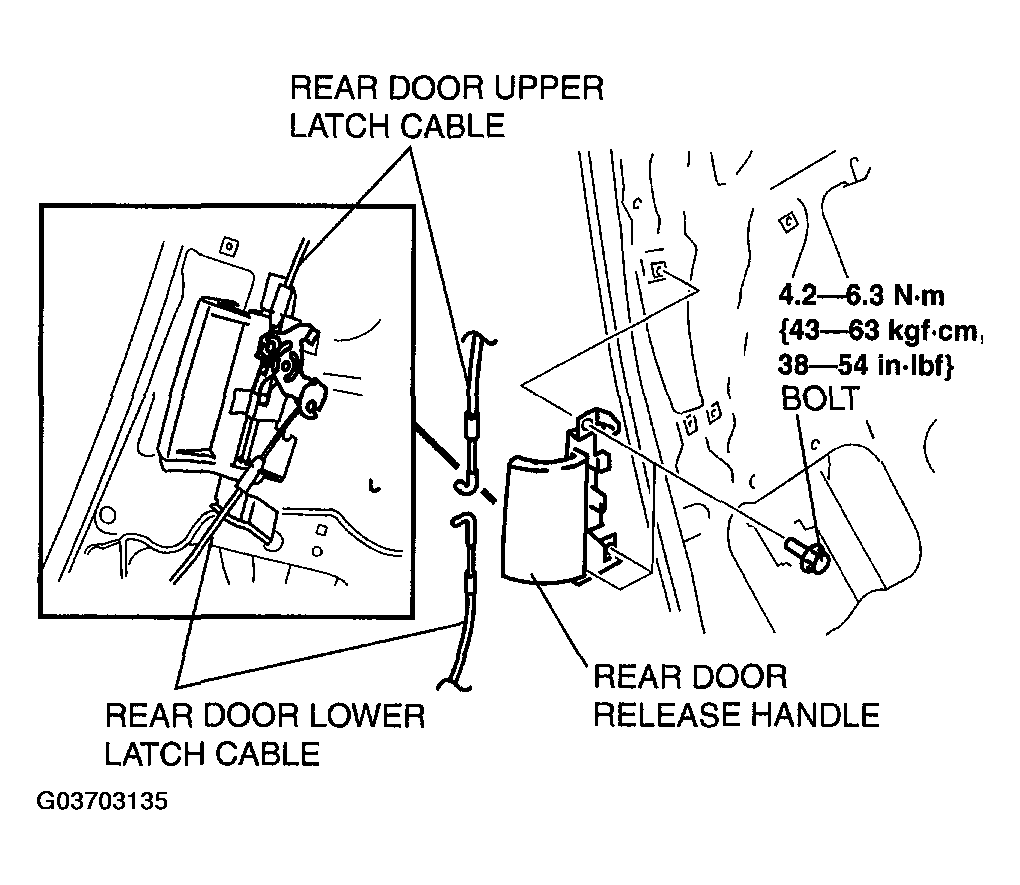

    Fig 1: Detaching Rear Door Upper And Lower Latch Cables With Torque Specification
    G03703135Courtesy of MAZDA MOTORS CORP.
