DTC P1506: IAC System Circuit Malfunction

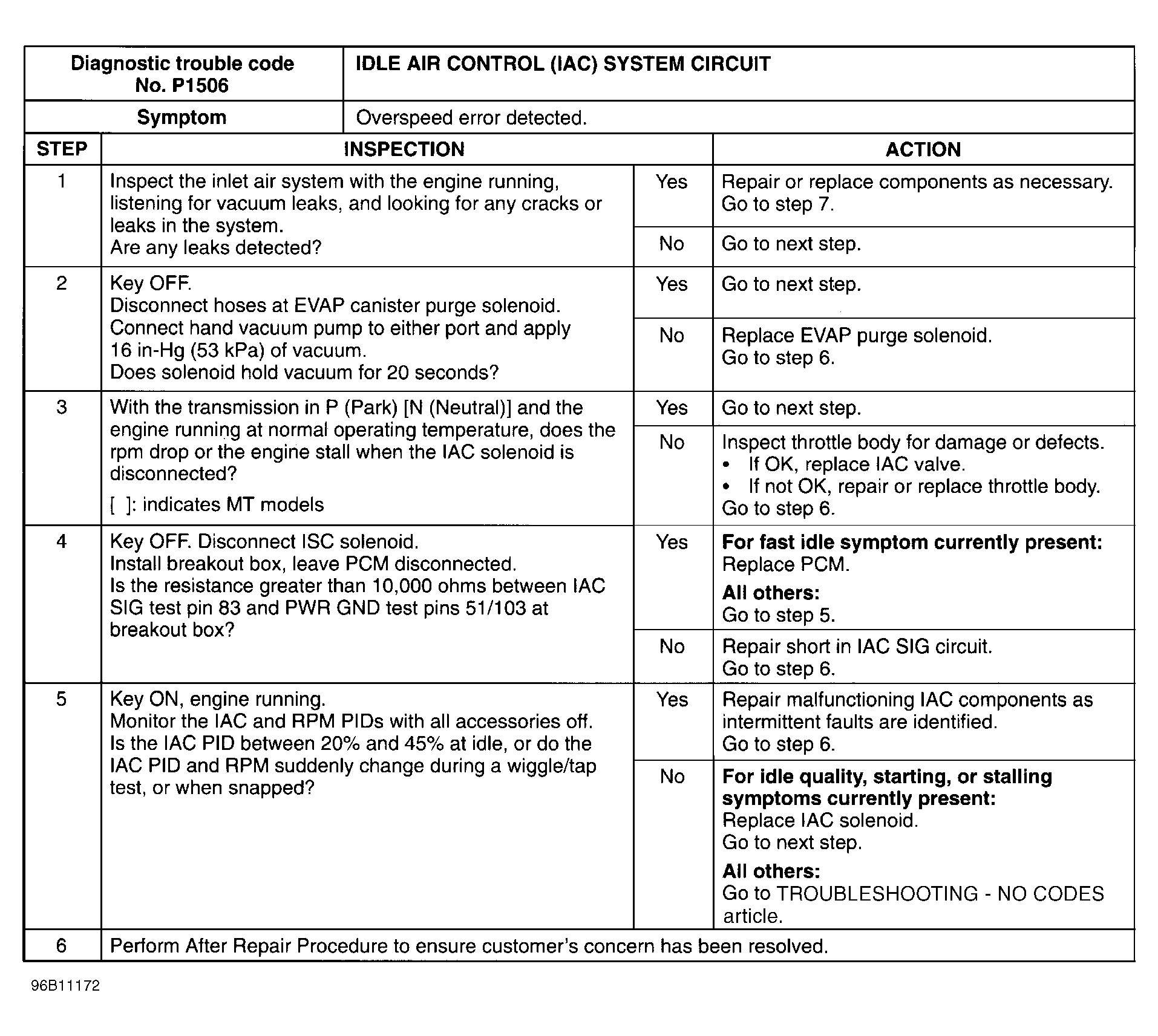

Fig 1: DTC P1506 IAC System CIRCUIT Malfunction

G96B11172

Fig 2: IAC Solenoid CIRCUIT Diagram

G95G34641
