DTC P1443: Purge Flow System Circuit Malfunction

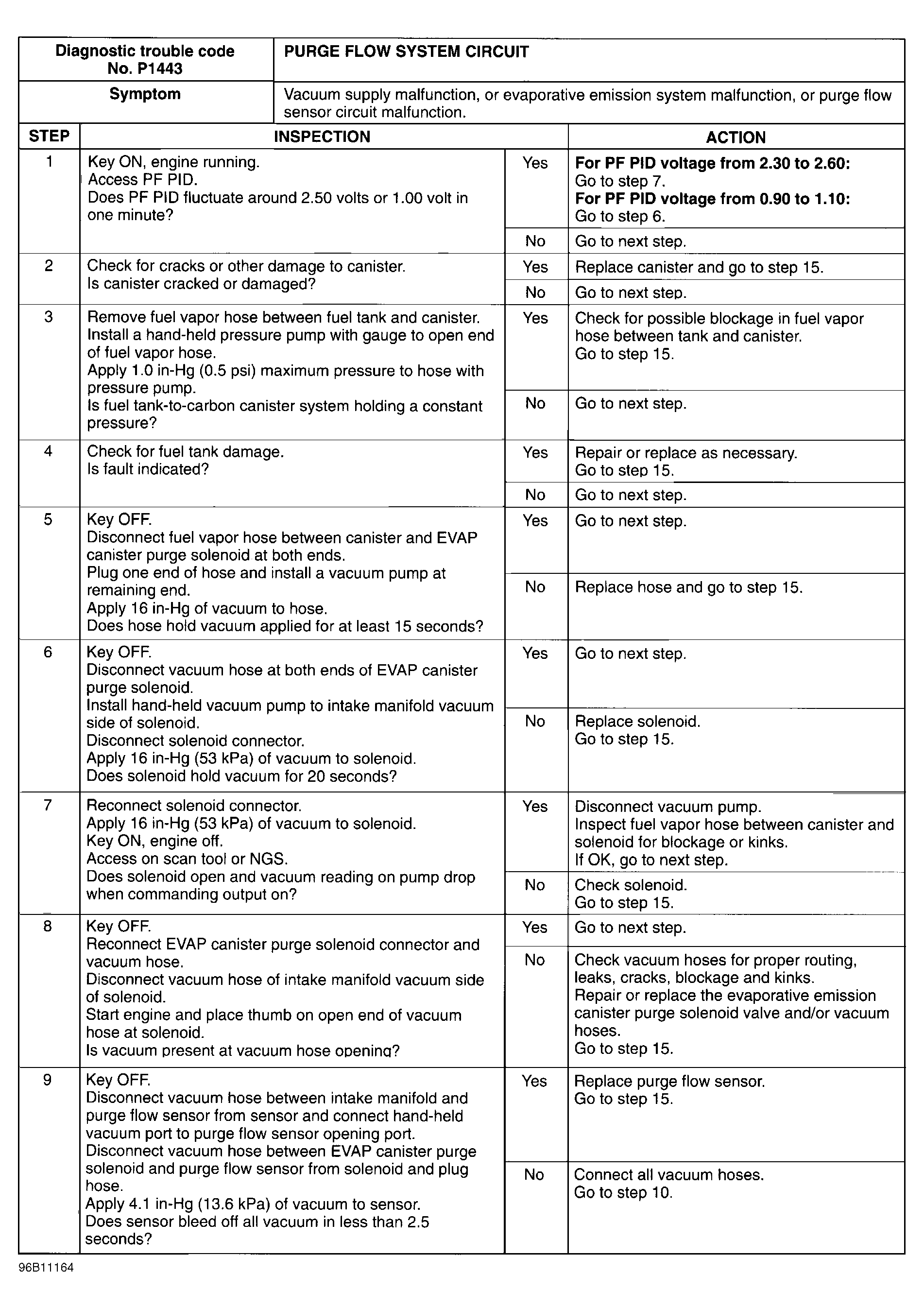

Fig 1: DTC P1443 Purge Flow System CIRCUIT Malfunction (1 OF 2)

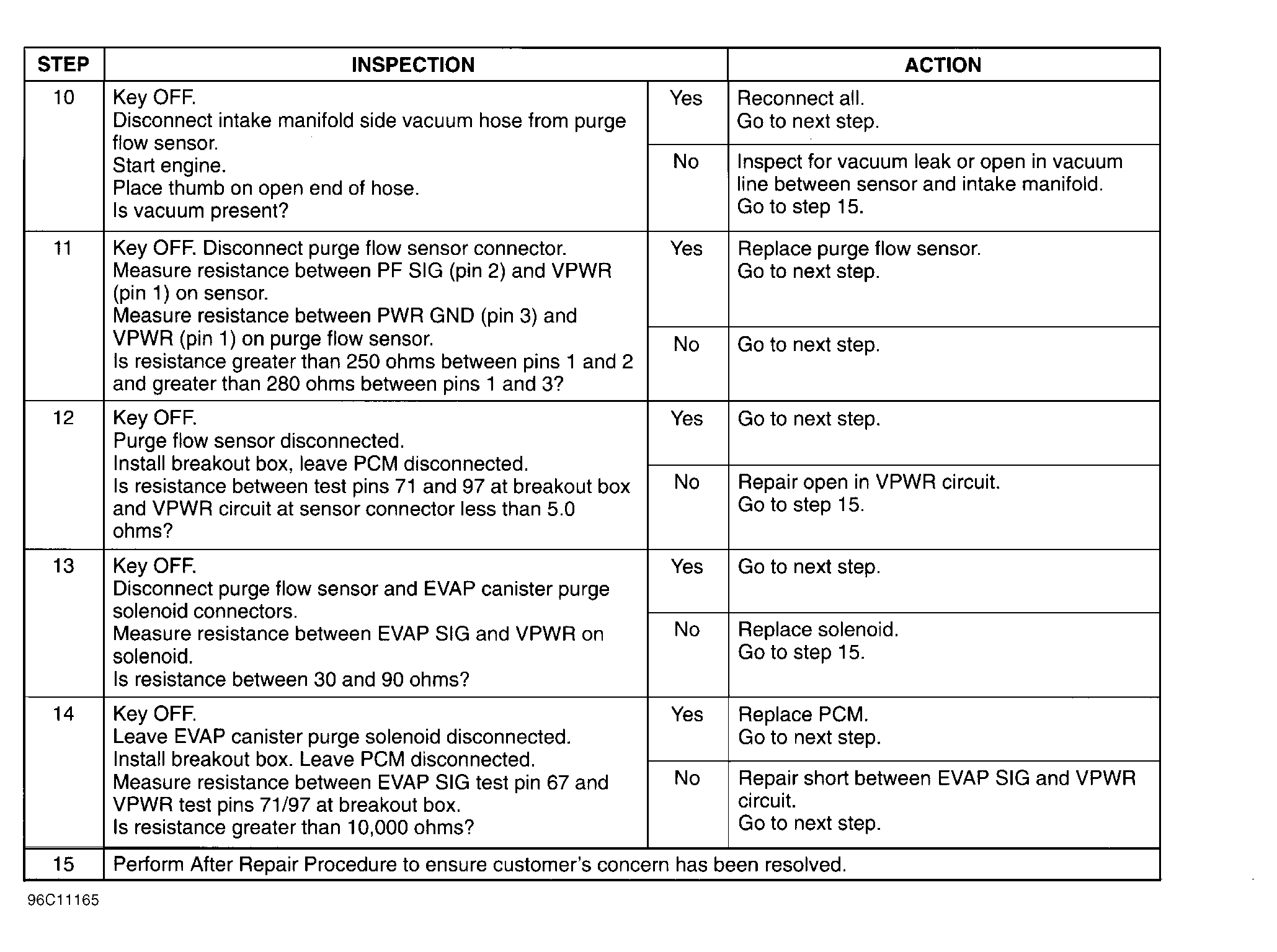

Fig 2: DTC P1443 Purge Flow System CIRCUIT Malfunction (2 OF 2)

Fig 3: EVAP Canister Purge Solenoid CIRCUIT Diagram
