DTC P1390: Octane Adjust Circuit Malfunction

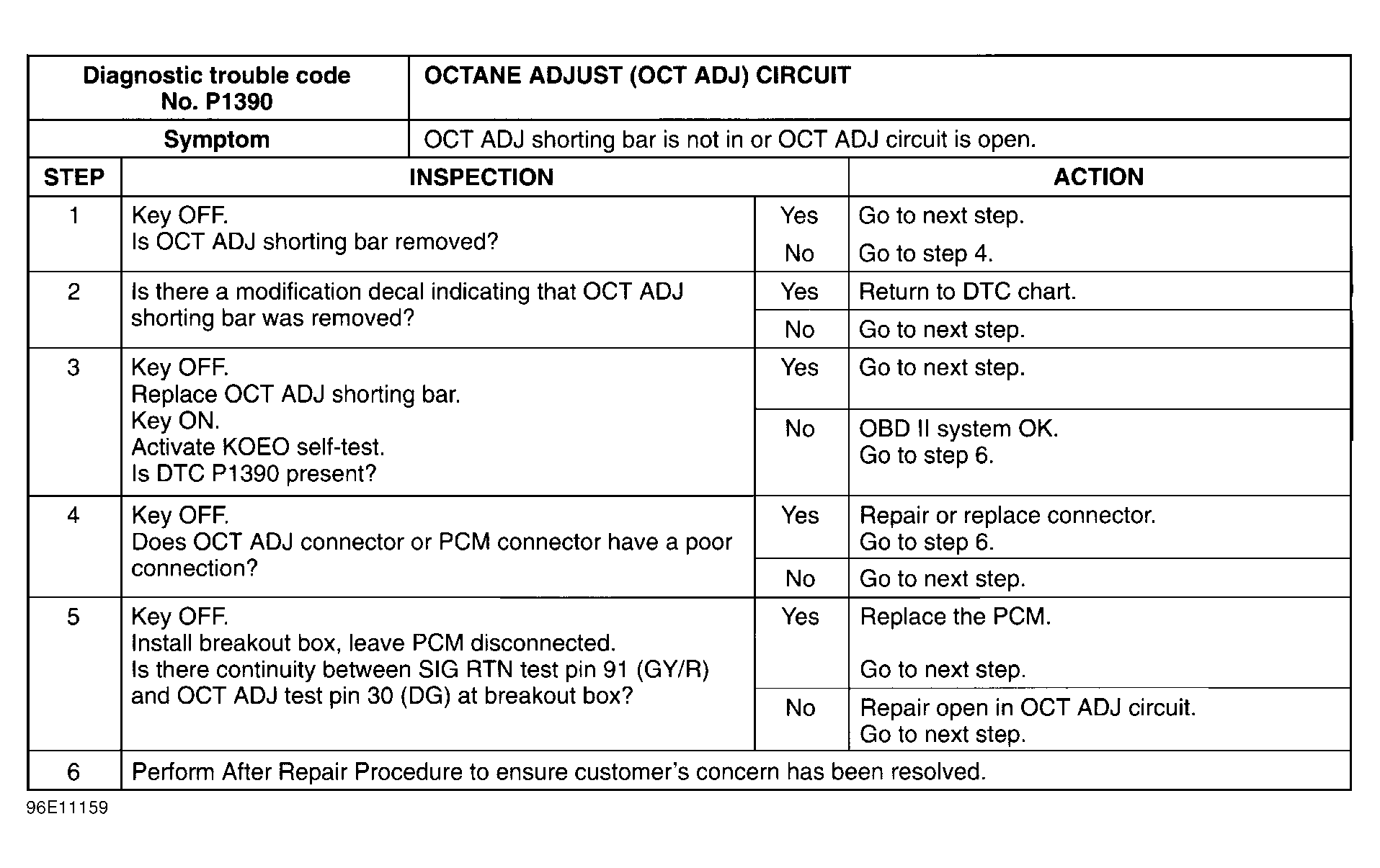

Fig 1: DTC P1390 Octane Adjust CIRCUIT Malfunction

G96E11159

Fig 2: Octane Adjust (OCT ADJ) CIRCUIT Diagram

G95C34662
