DTC P1001: Data Link Connector Malfunction

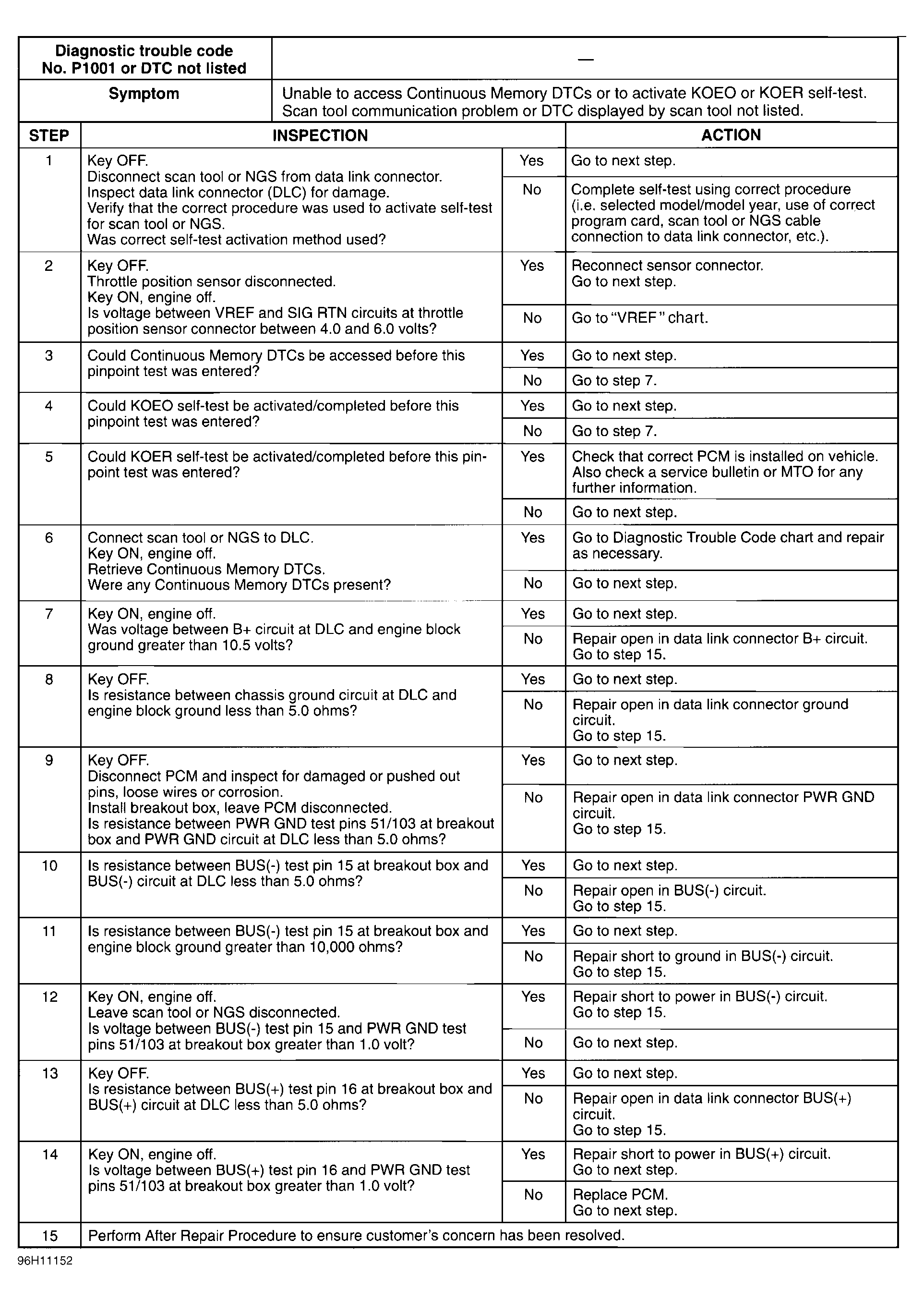

Fig 1: DTC P1001 Data Link Connector Malfunction

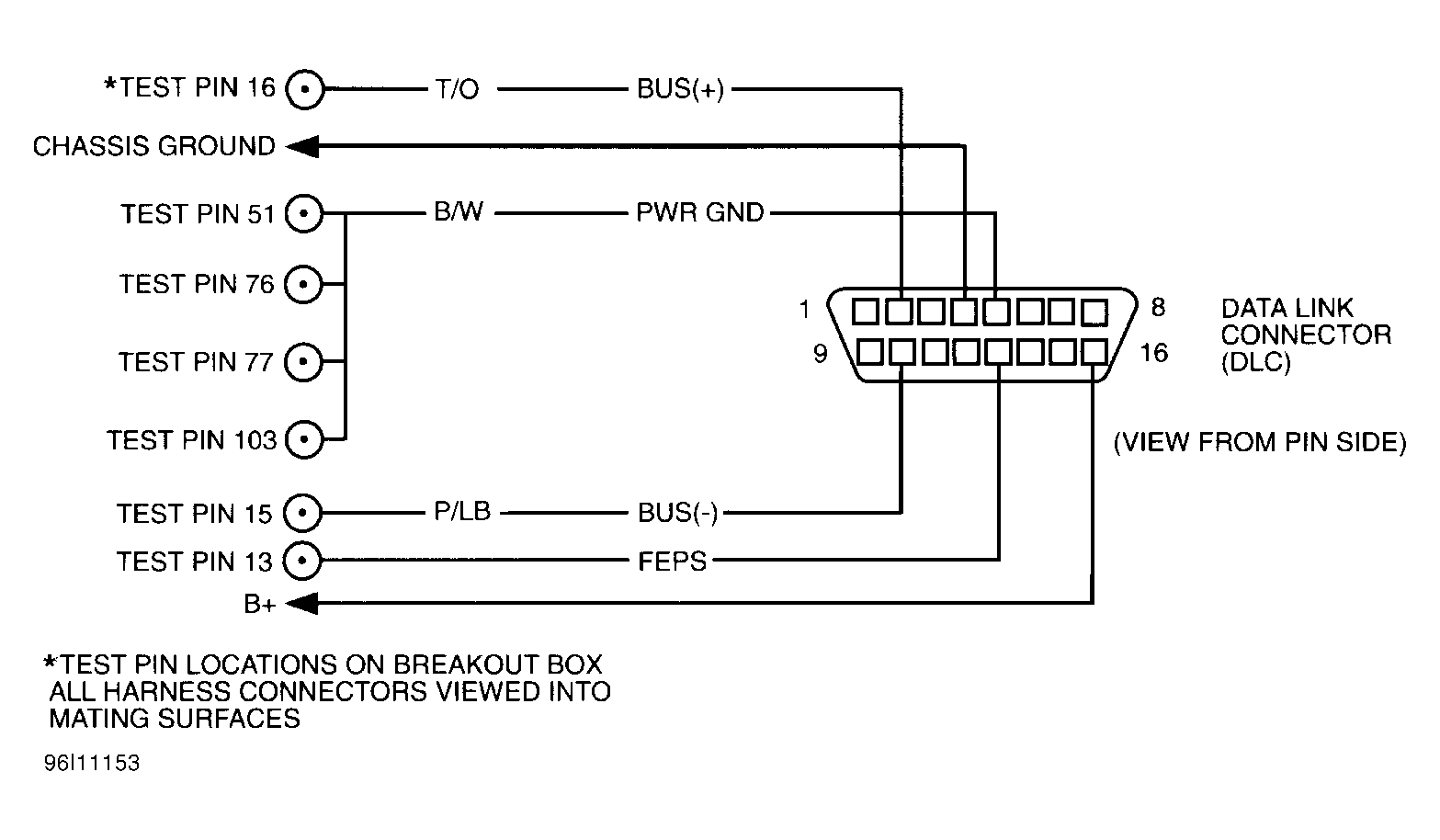

Fig 2: Data Link Connector (DLC) CIRCUIT Diagram
