DTC P0420: Catalyst Efficiency Monitor Malfunction
DTC P0420: Catalyst Efficiency Monitor Malfunction

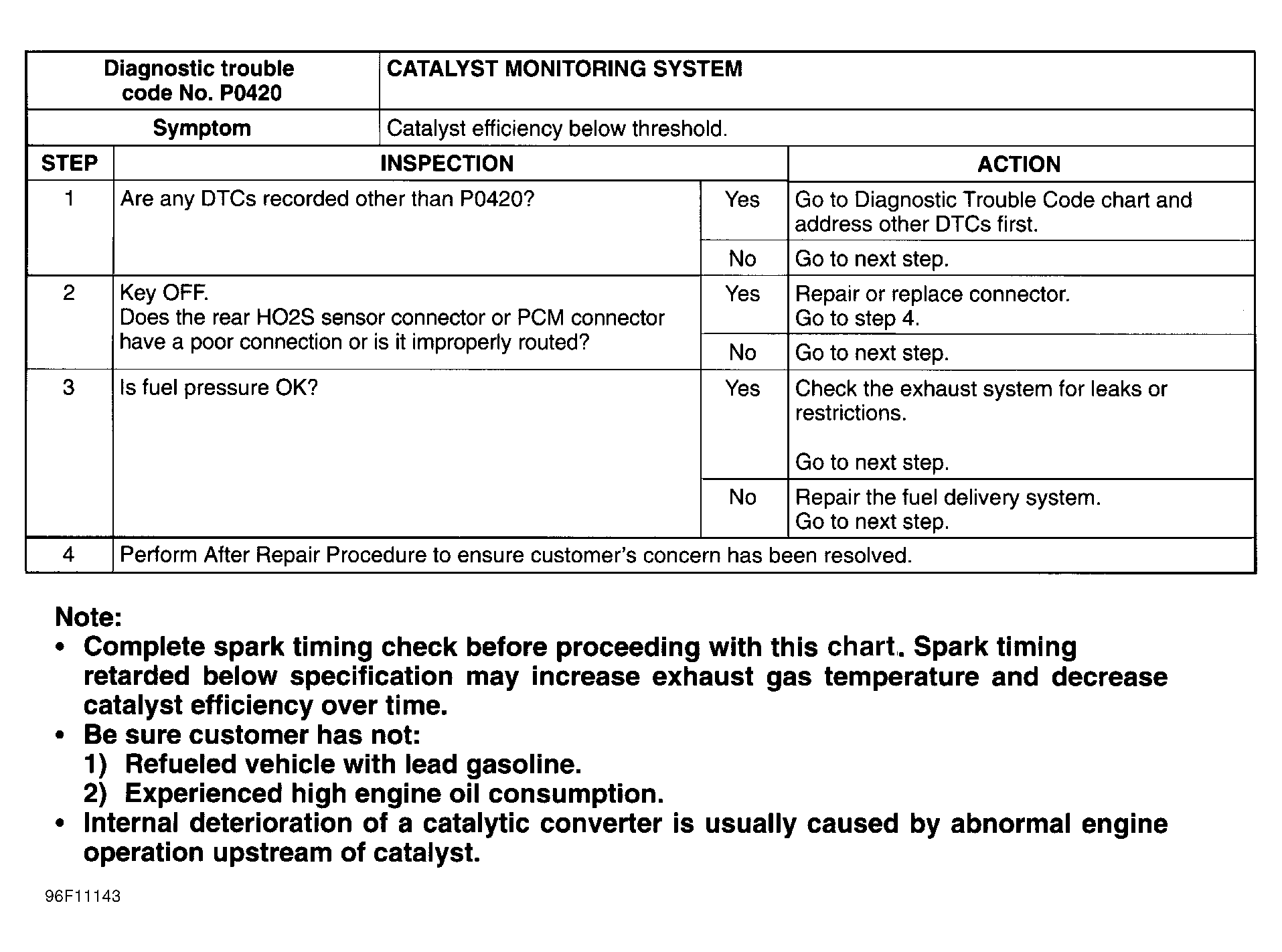

Fig 1: DTC P0420 Catalyst Efficiency Monitor Malfunction
