DTC P0400: Exhaust Gas RECIRCULATION System Malfunction

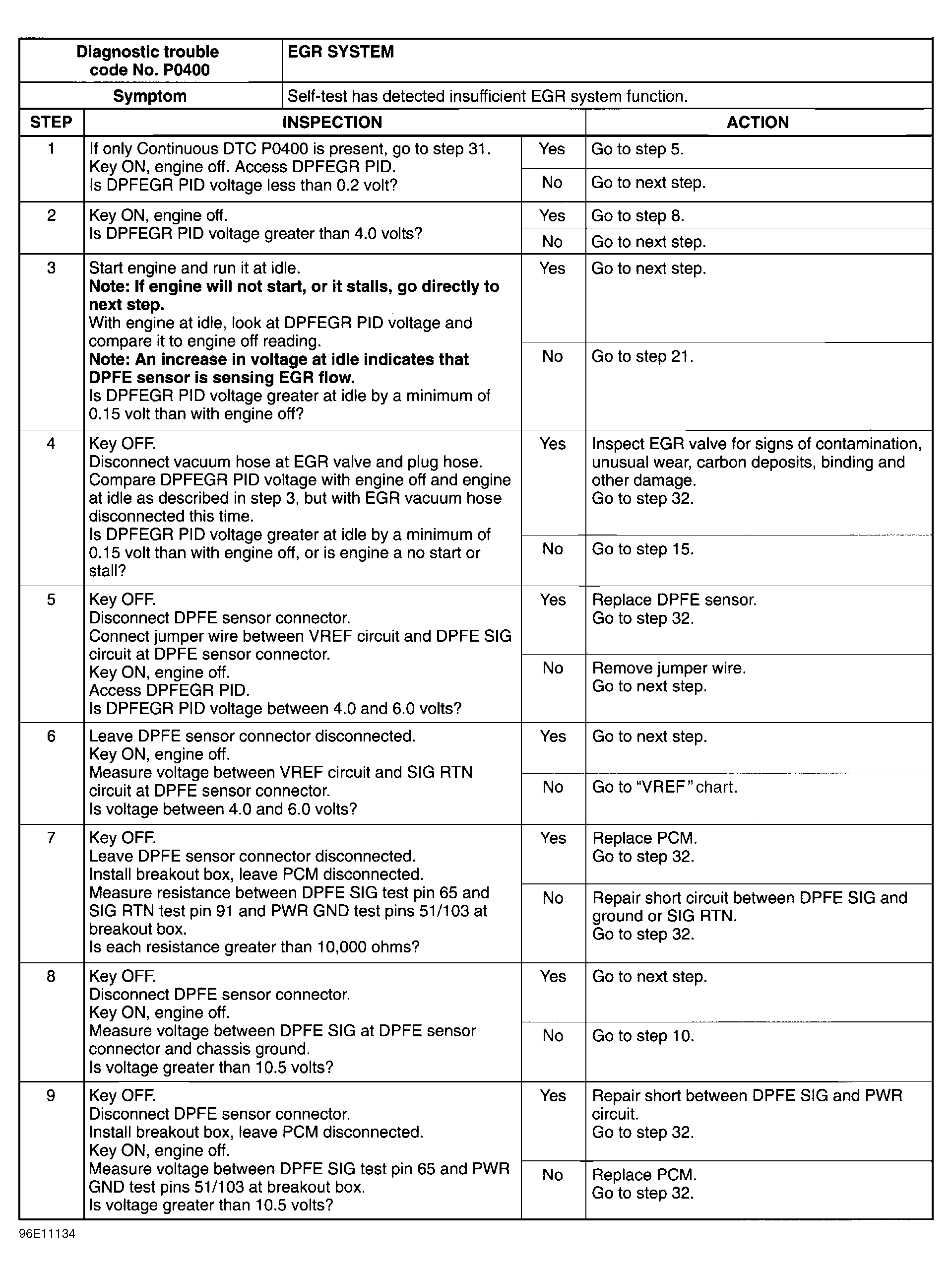

Fig 1: DTC P0400 (1 OF 4)

G96E11134

Fig 2: DTC P0400 (2 OF 4)

G96F11135

Fig 3: DTC P0400 (3 OF 4)

G96G11136

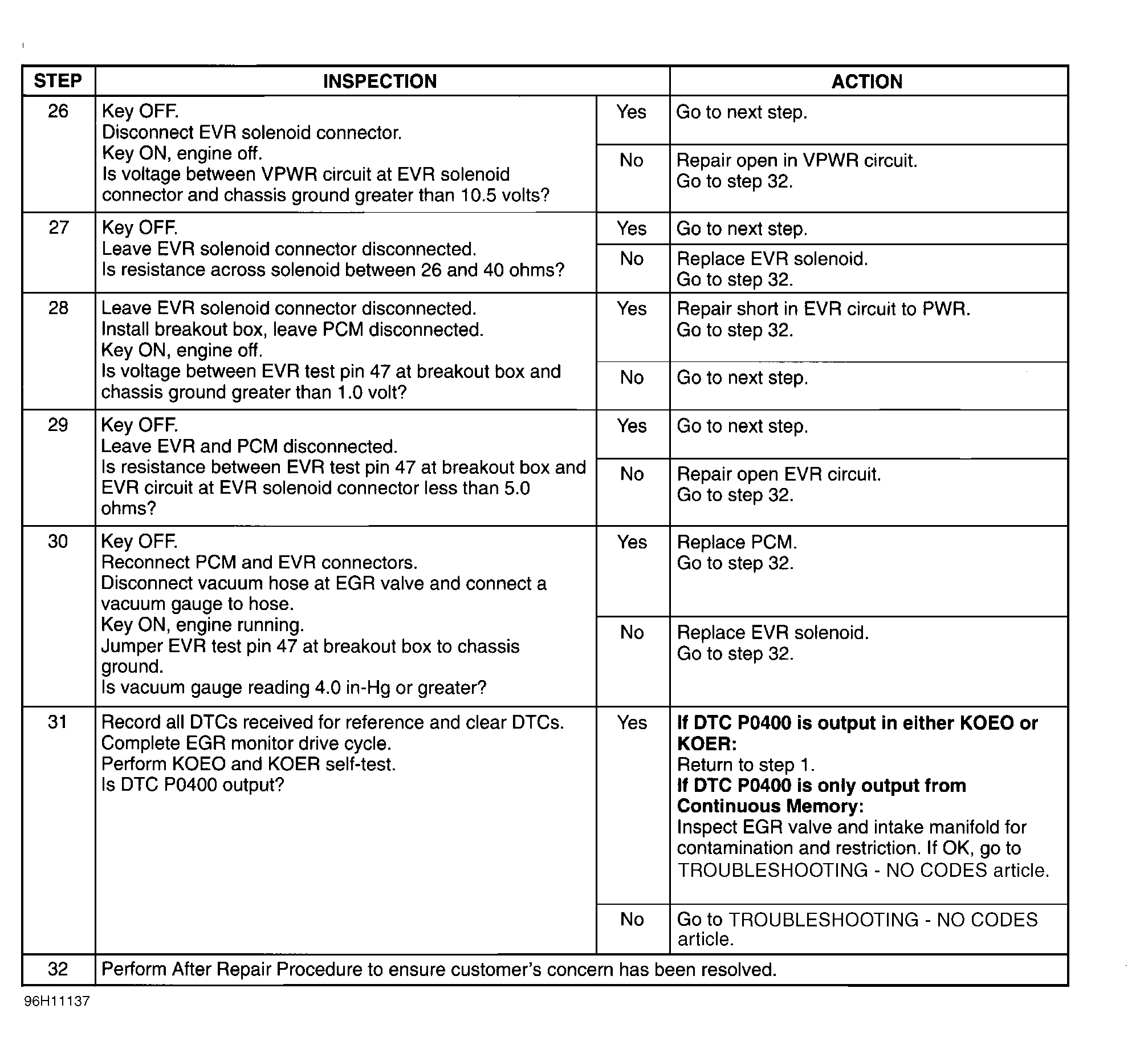

Fig 4: DTC P0400 (4 OF 4)

G96H11137
