Pin Voltage Charts
Pin Voltage Charts

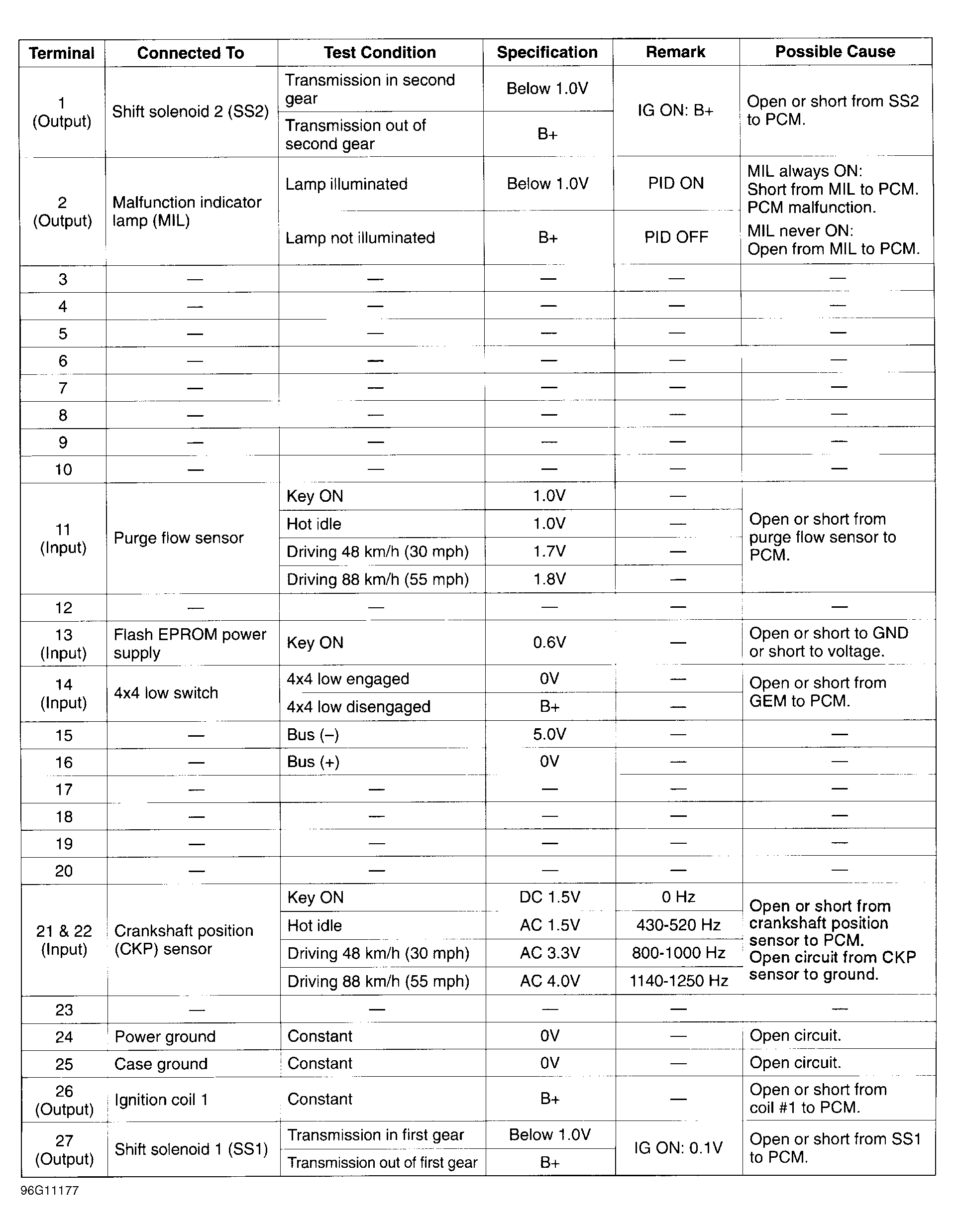

Fig 1: PCM Pin Voltage Chart (1 Of 5)
Courtesy of MAZDA MOTORS CORP.

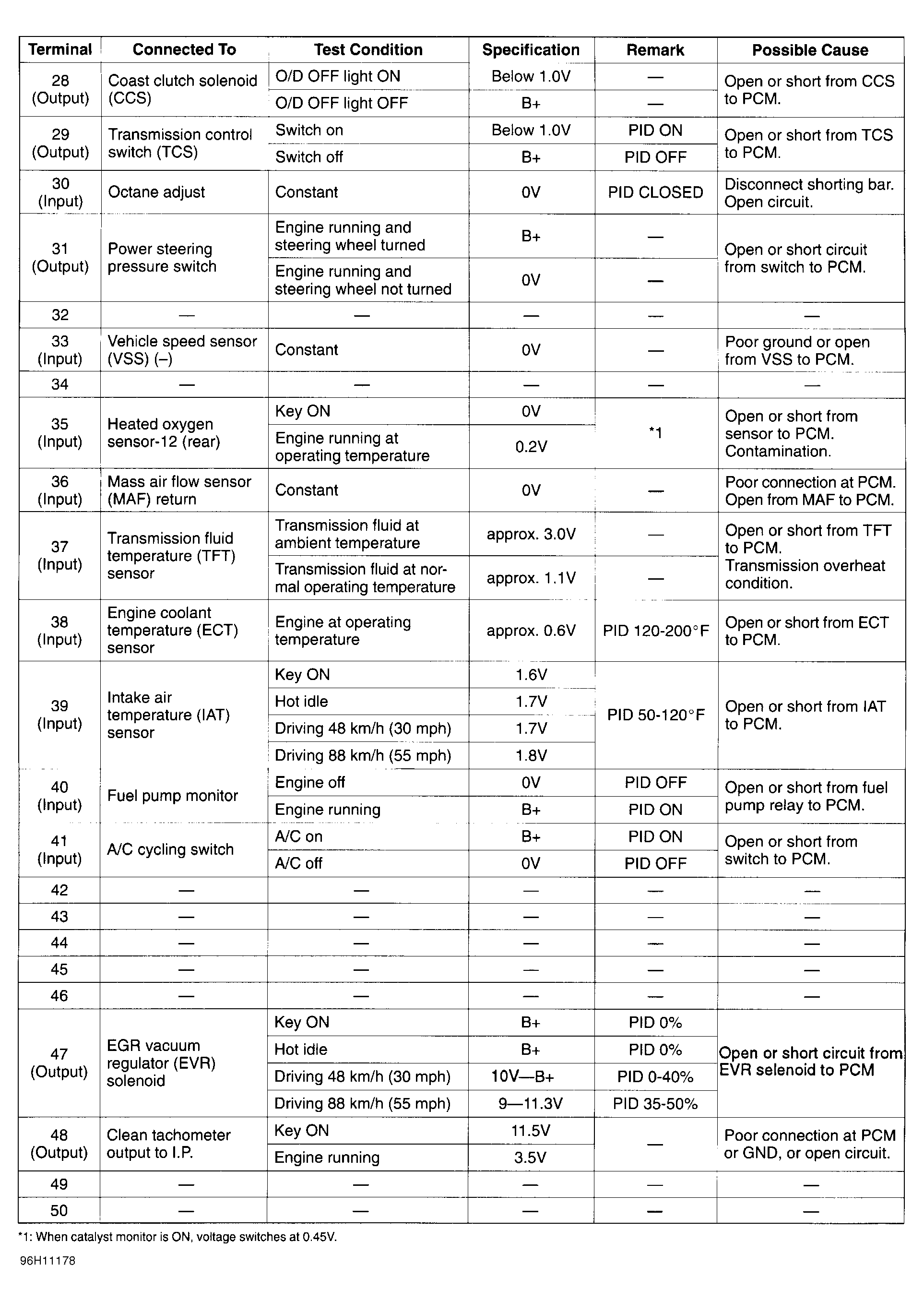

Fig 2: PCM Pin Voltage Chart (2 Of 5)
Courtesy of MAZDA MOTORS CORP.

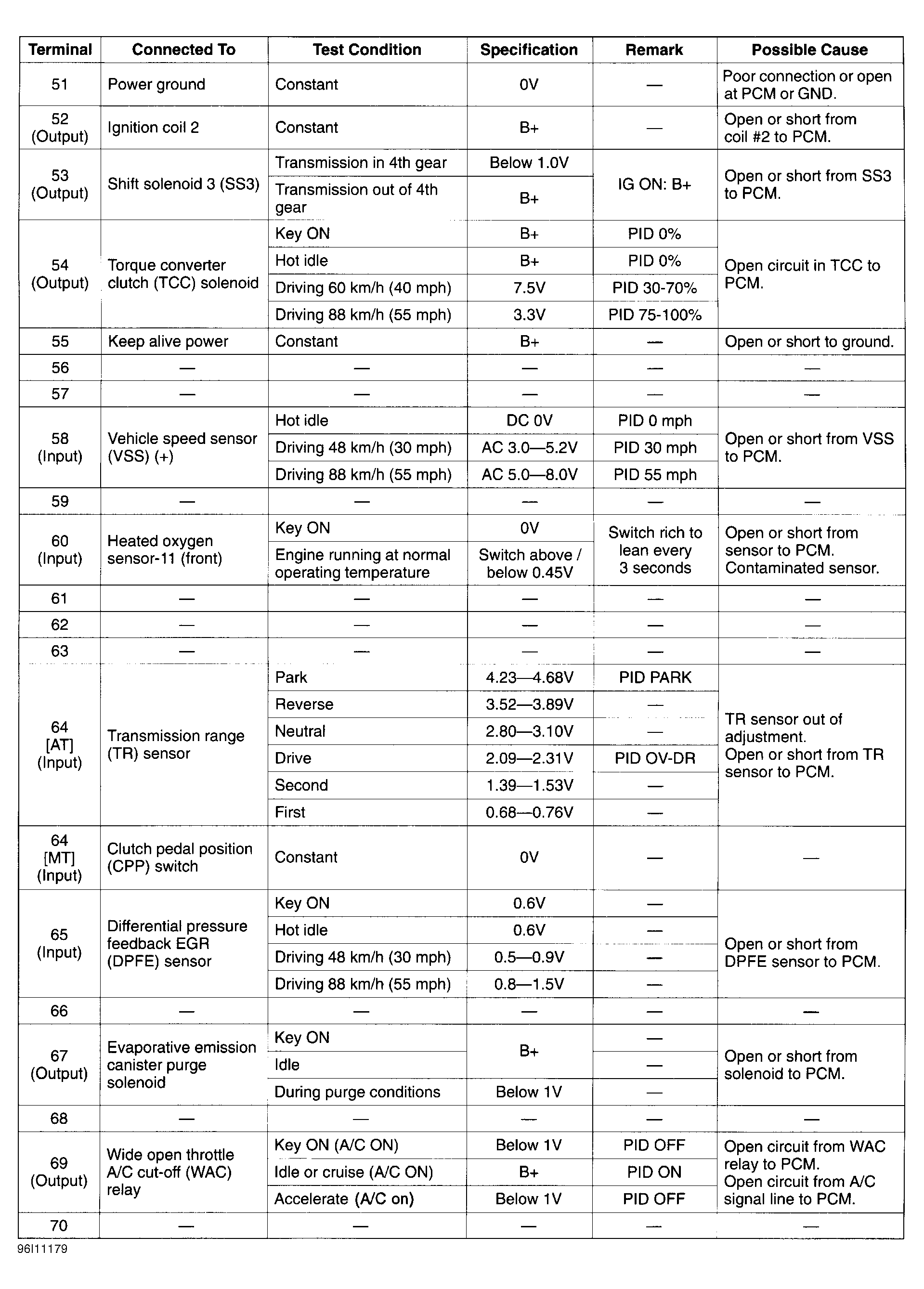

Fig 3: PCM Pin Voltage Chart (3 Of 5)
Courtesy of MAZDA MOTORS CORP.

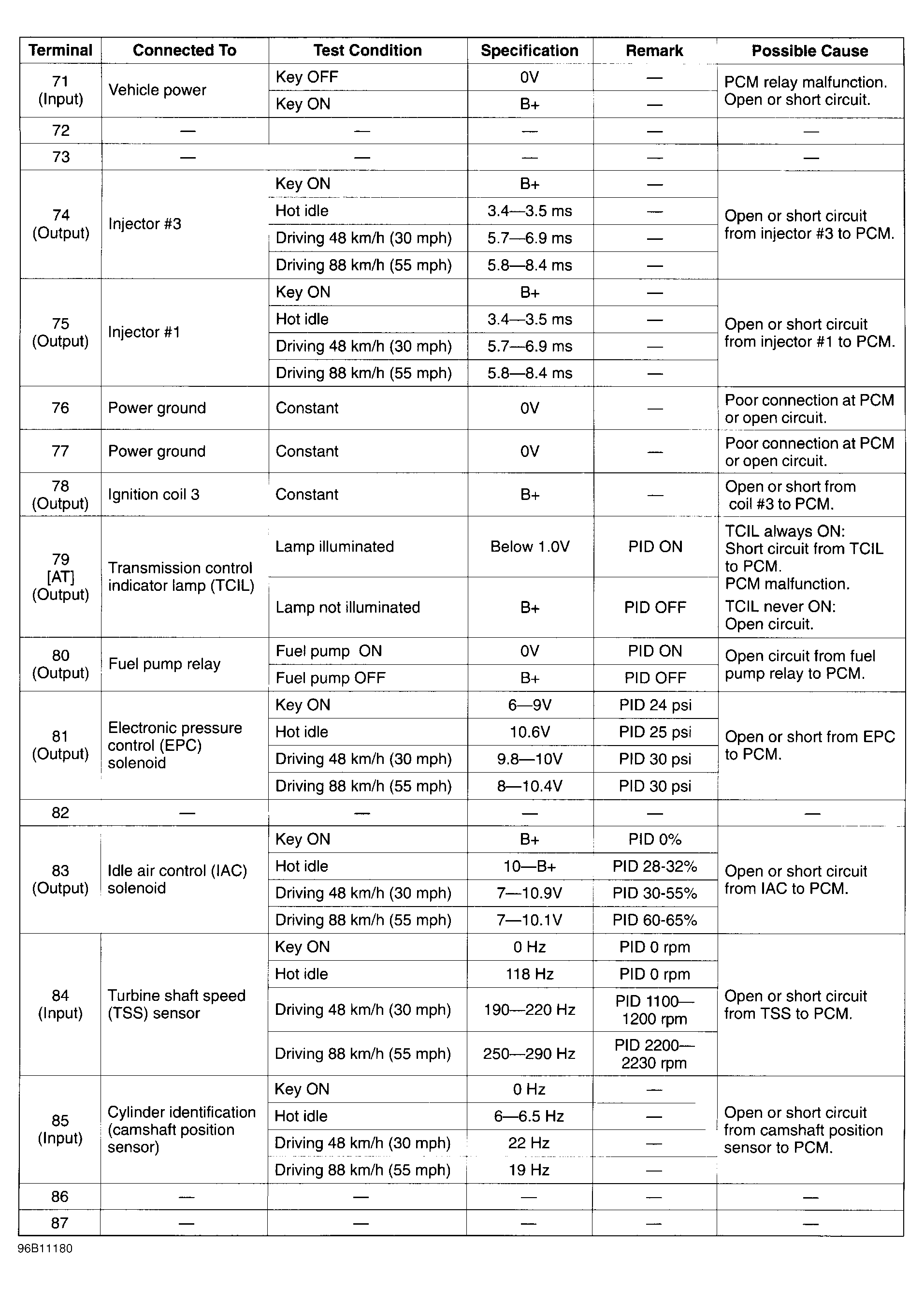

Fig 4: PCM Pin Voltage Chart (4 Of 5)
Courtesy of MAZDA MOTORS CORP.

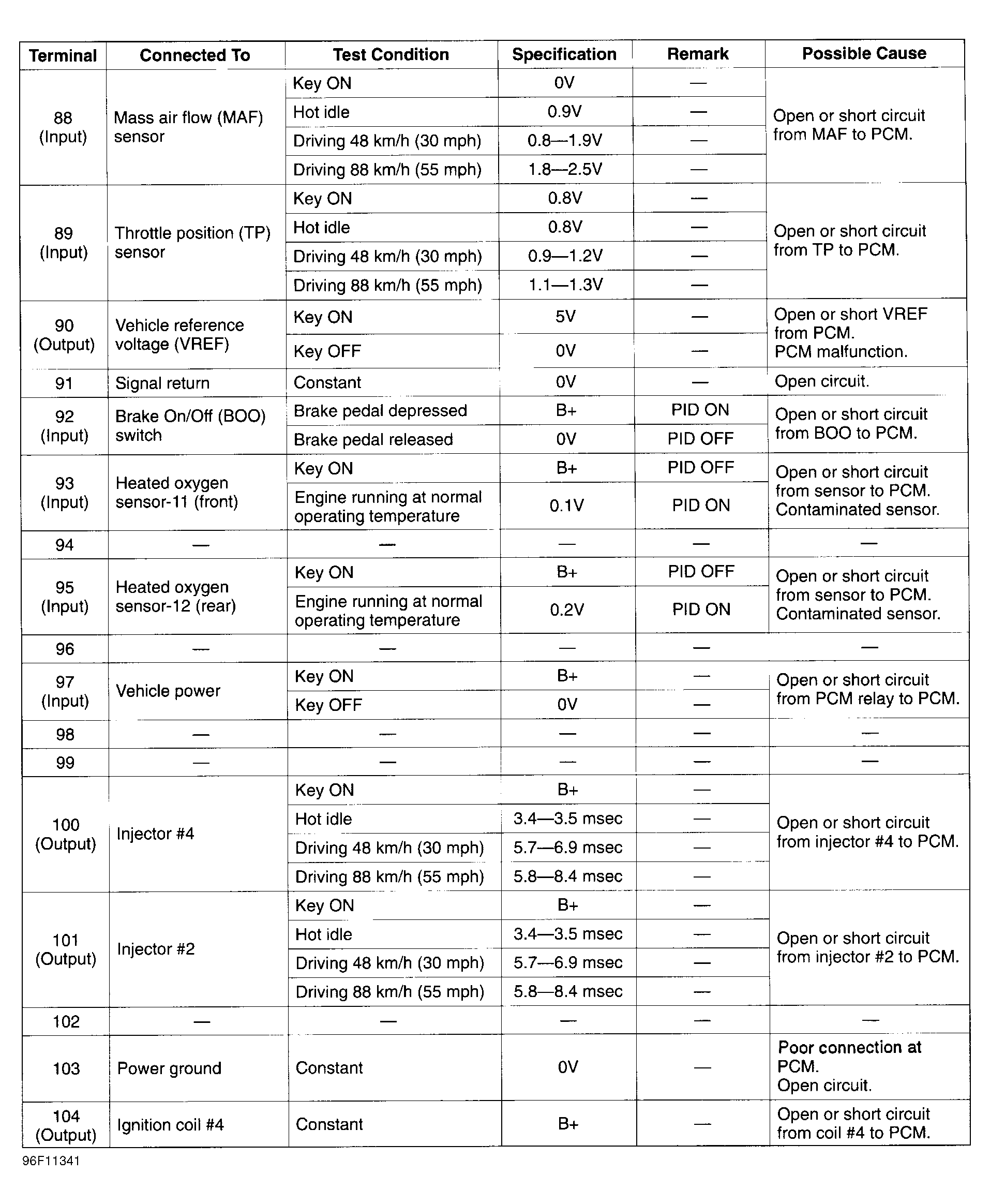

Fig 5: PCM Pin Voltage Chart (5 Of 5)
Courtesy of MAZDA MOTORS CORP.

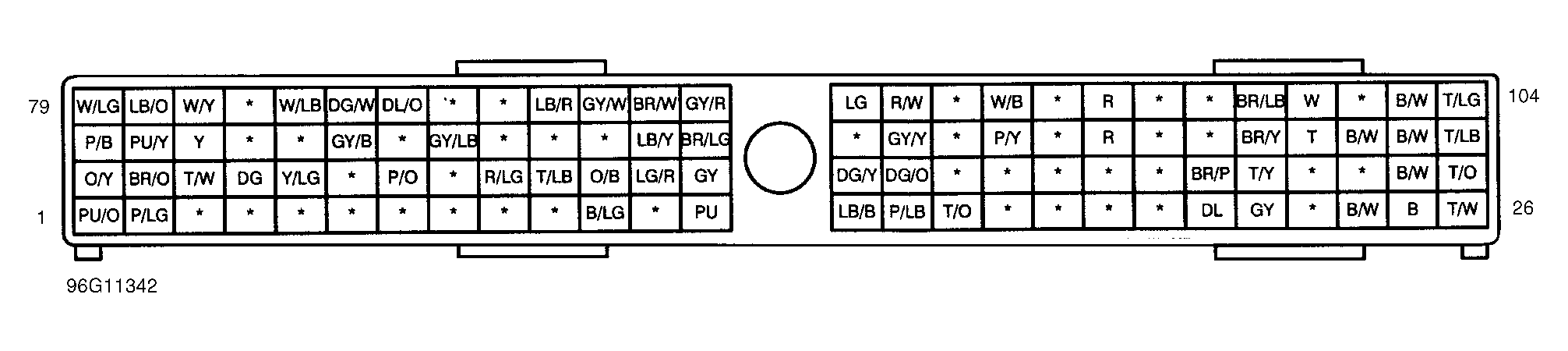

Fig 6: PCM Connector Terminal Identification
Courtesy of MAZDA MOTORS CORP.
