Clutch Assembly: Notes
CLUTCH RUNOUT (MAXIMUM)
Application
In. (mm)
Disc
0.024 (0.6)
Flywheel
0.008 (0.20)

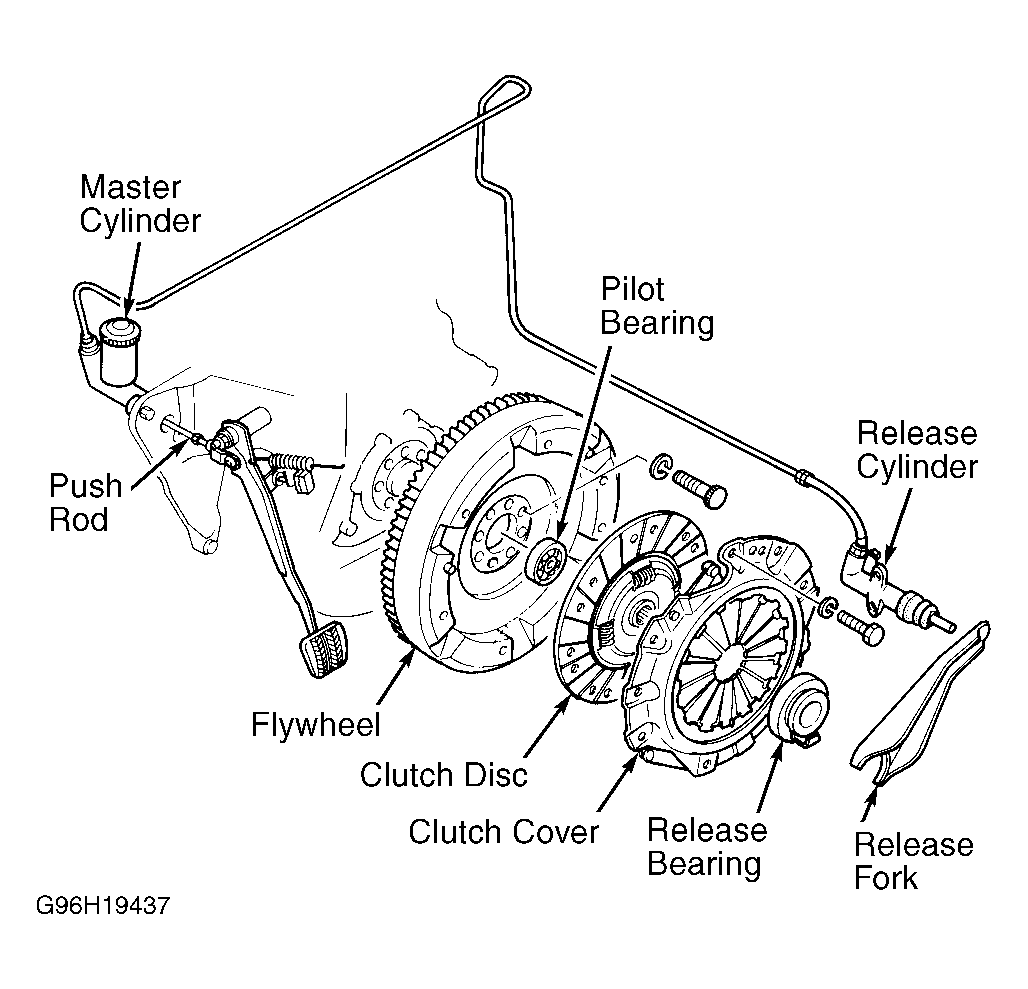

Fig 1: Exploded View Of Clutch Assembly (Typical)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
