Code 71: Fuel Injector - Front Secondary

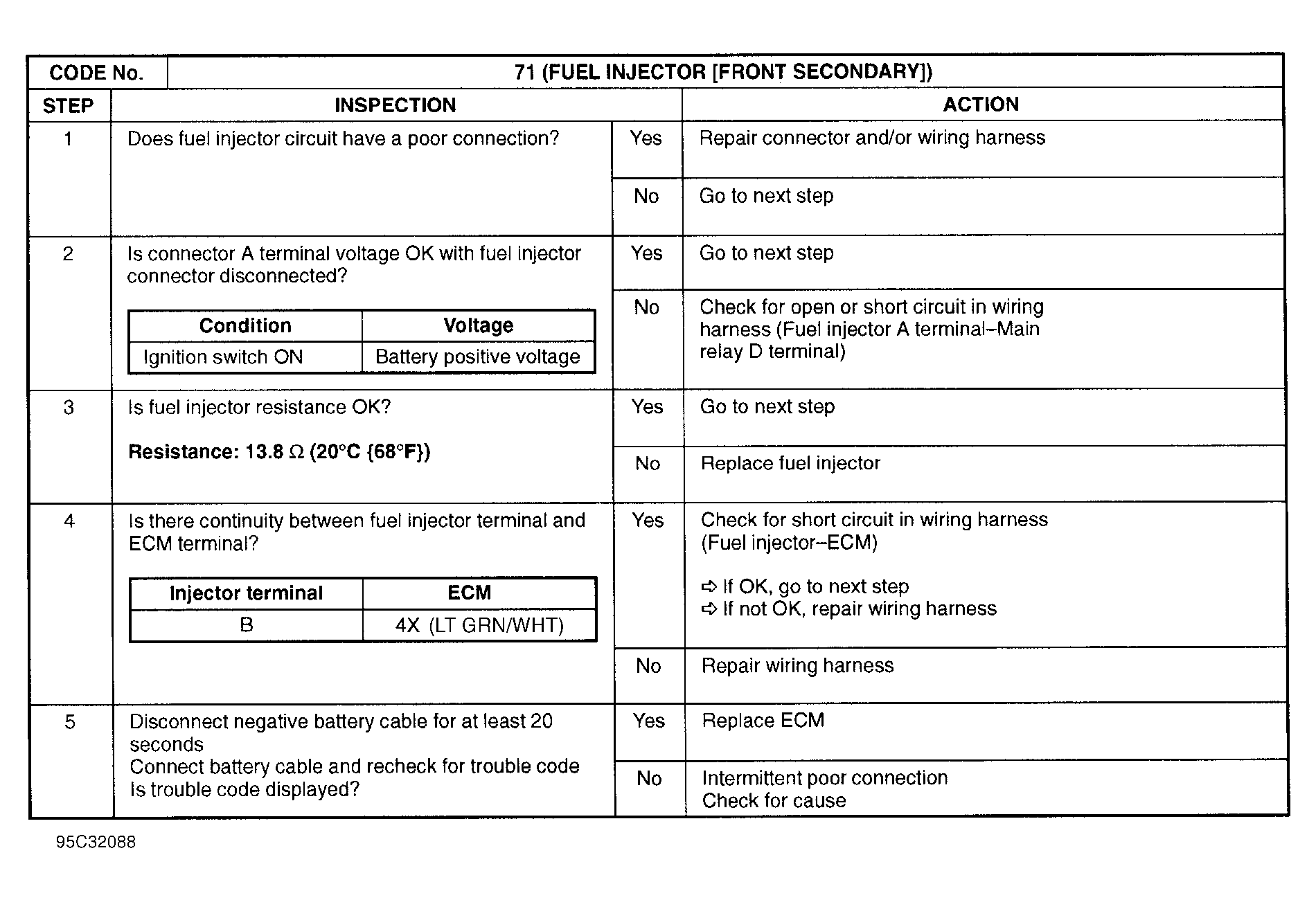

Fig 1: Trouble Code No. 71 Fuel Injector - Front Secondary

G95C32088

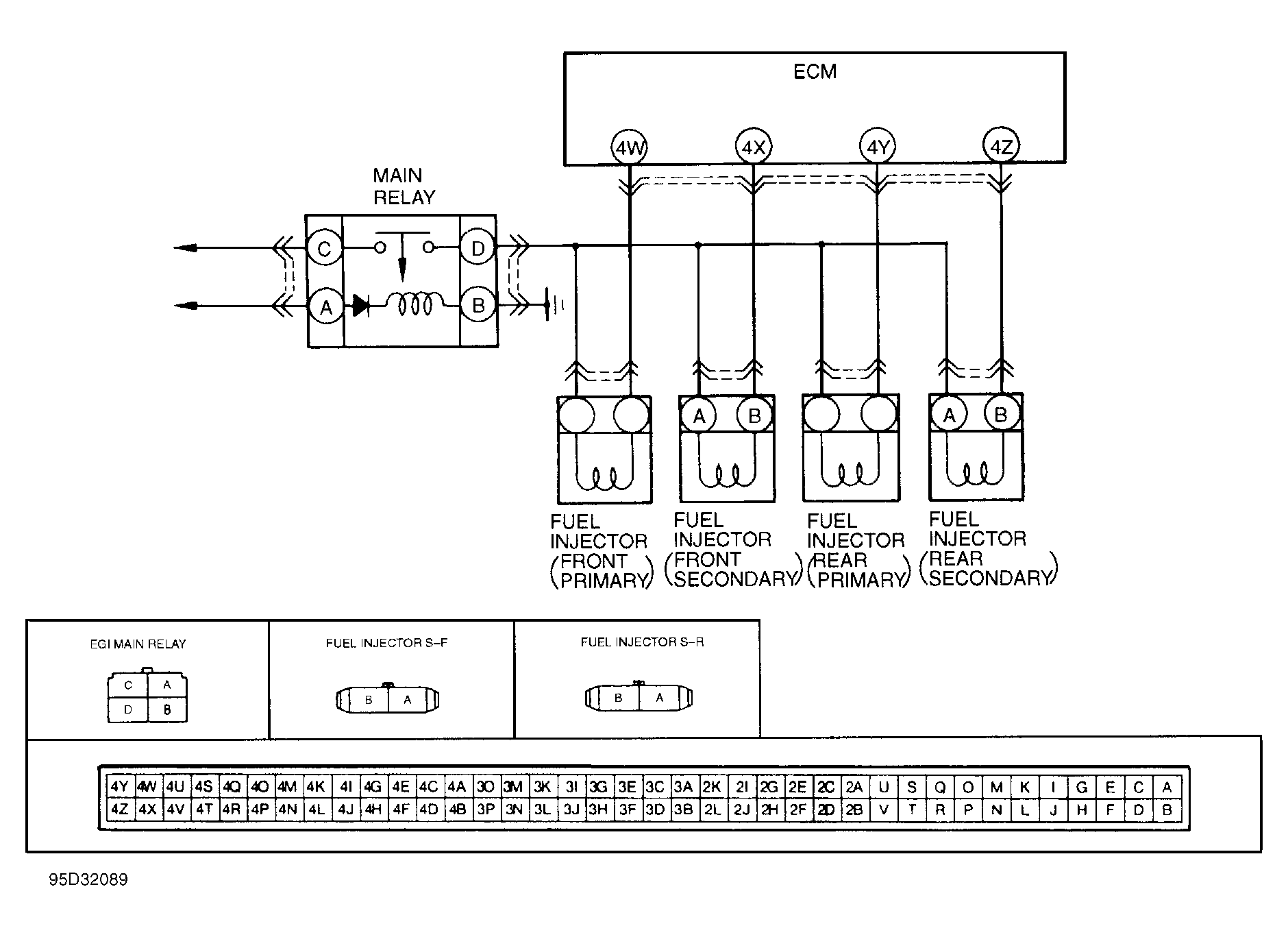

Fig 2: Trouble Code No. 71 Fuel Injector Circuit Diagram

G95D32089
