Code 46: Charge Relief Solenoid Valve

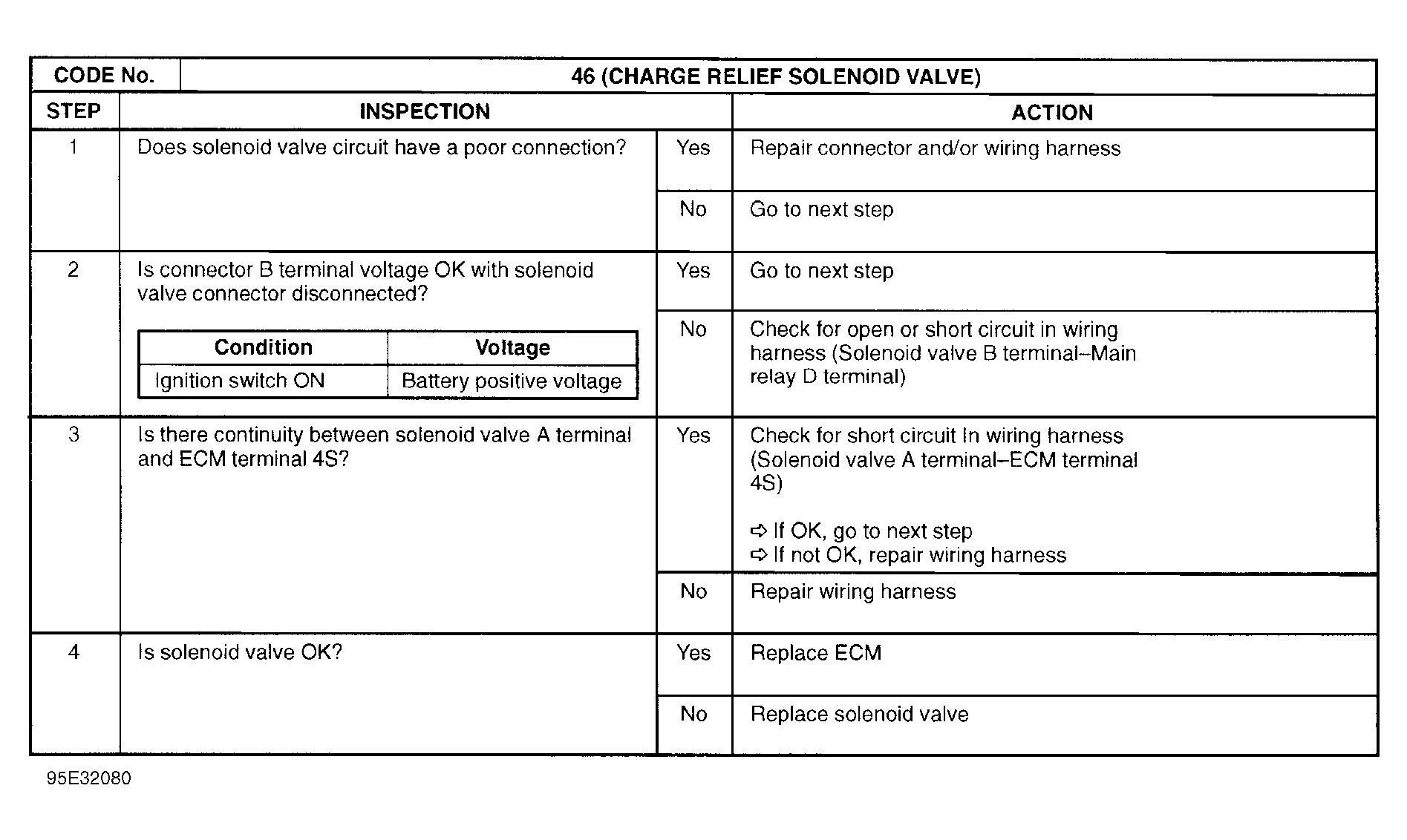

Fig 1: Trouble Code No. 46 Charge Relief Solenoid Valve

G95E32080

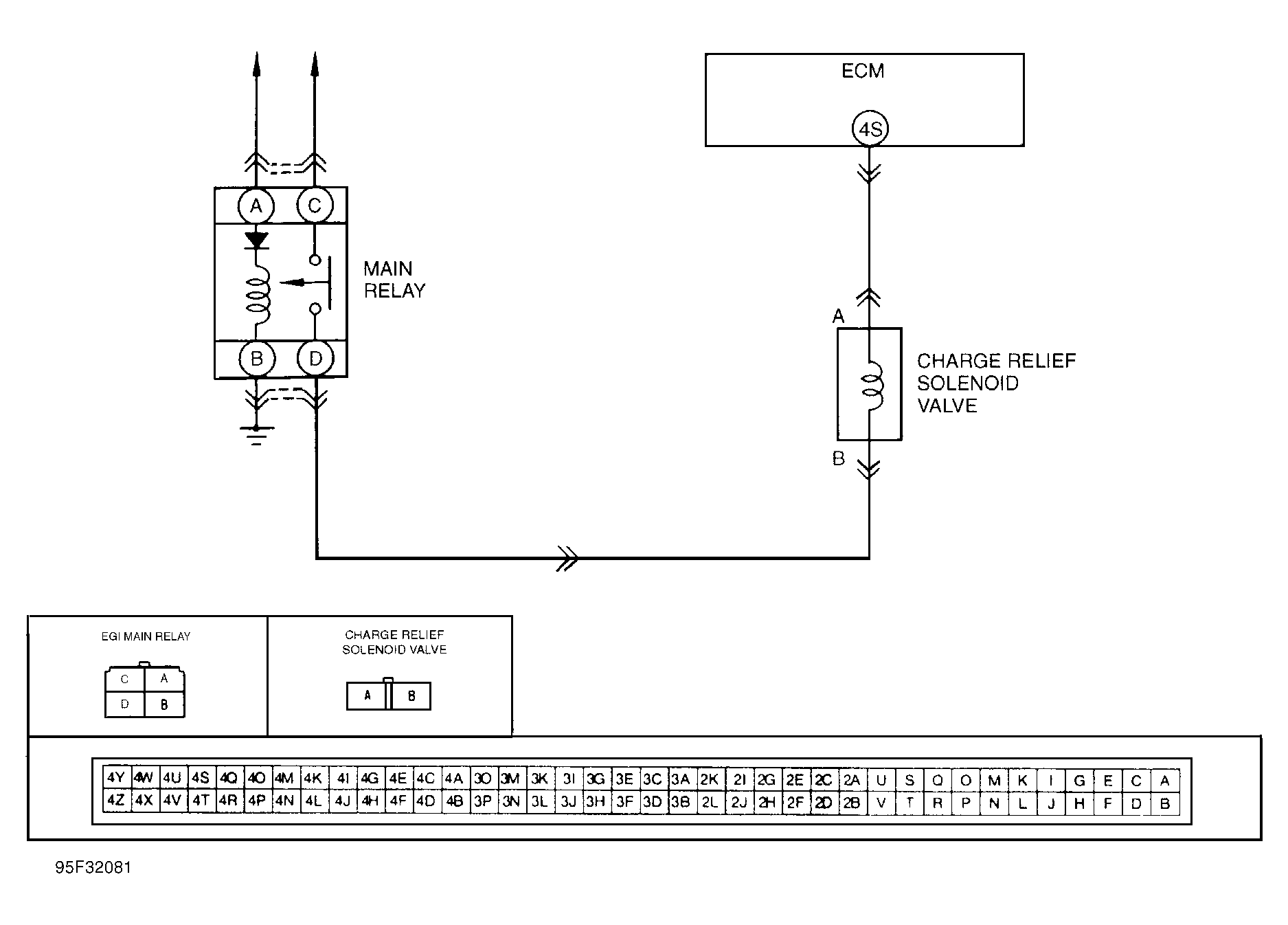

Fig 2: Trouble Code No. 46 Charge Relief Solenoid Valve Circuit Diagram

G95F32081
