Code P0510: Closed Throttle Position Switch Malfunction

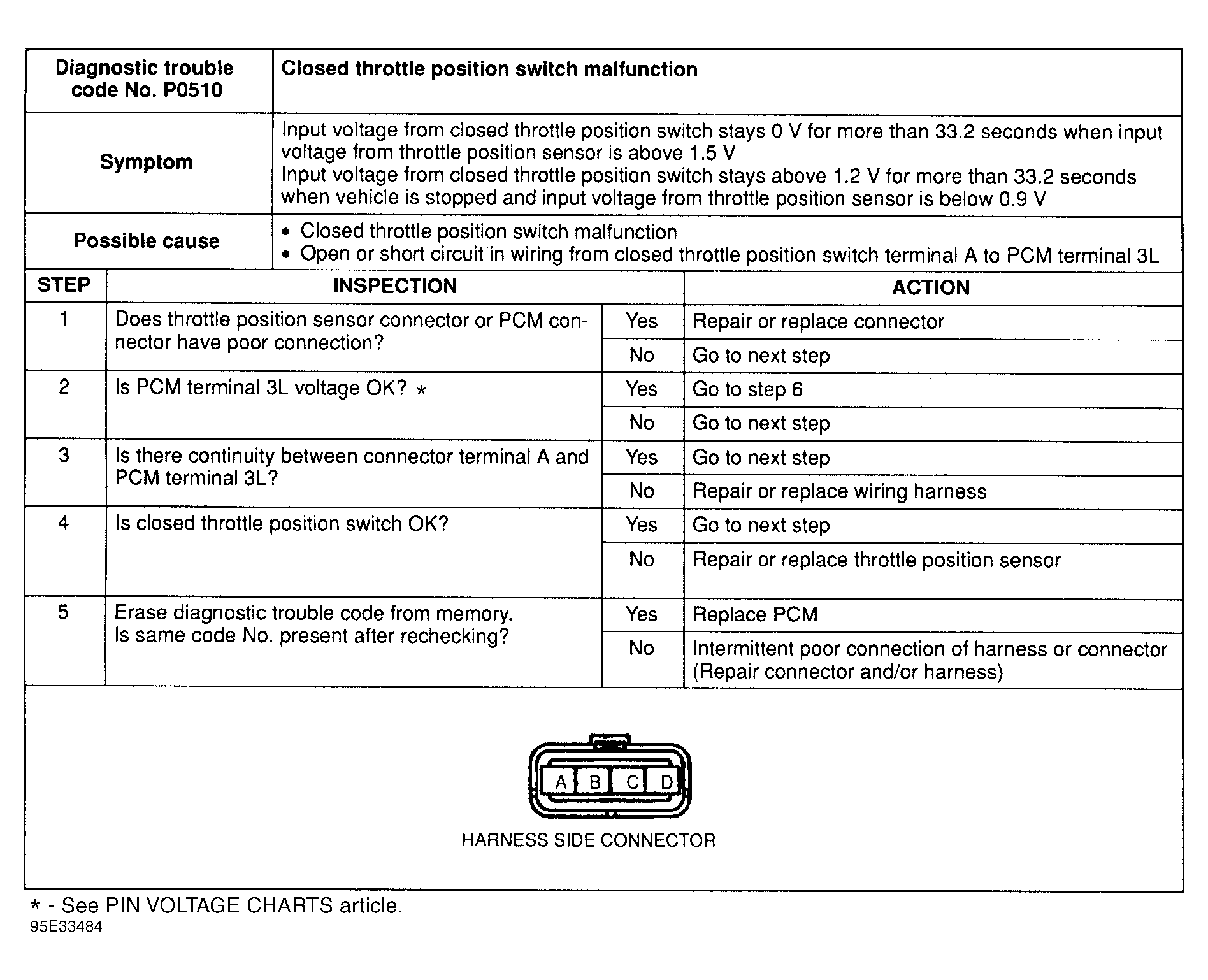

Fig 1: Trouble Code No. P0510 Closed Throttle Position Switch Malfunction

G95E33484
