Code P0120: Throttle Position Circuit Malfunction

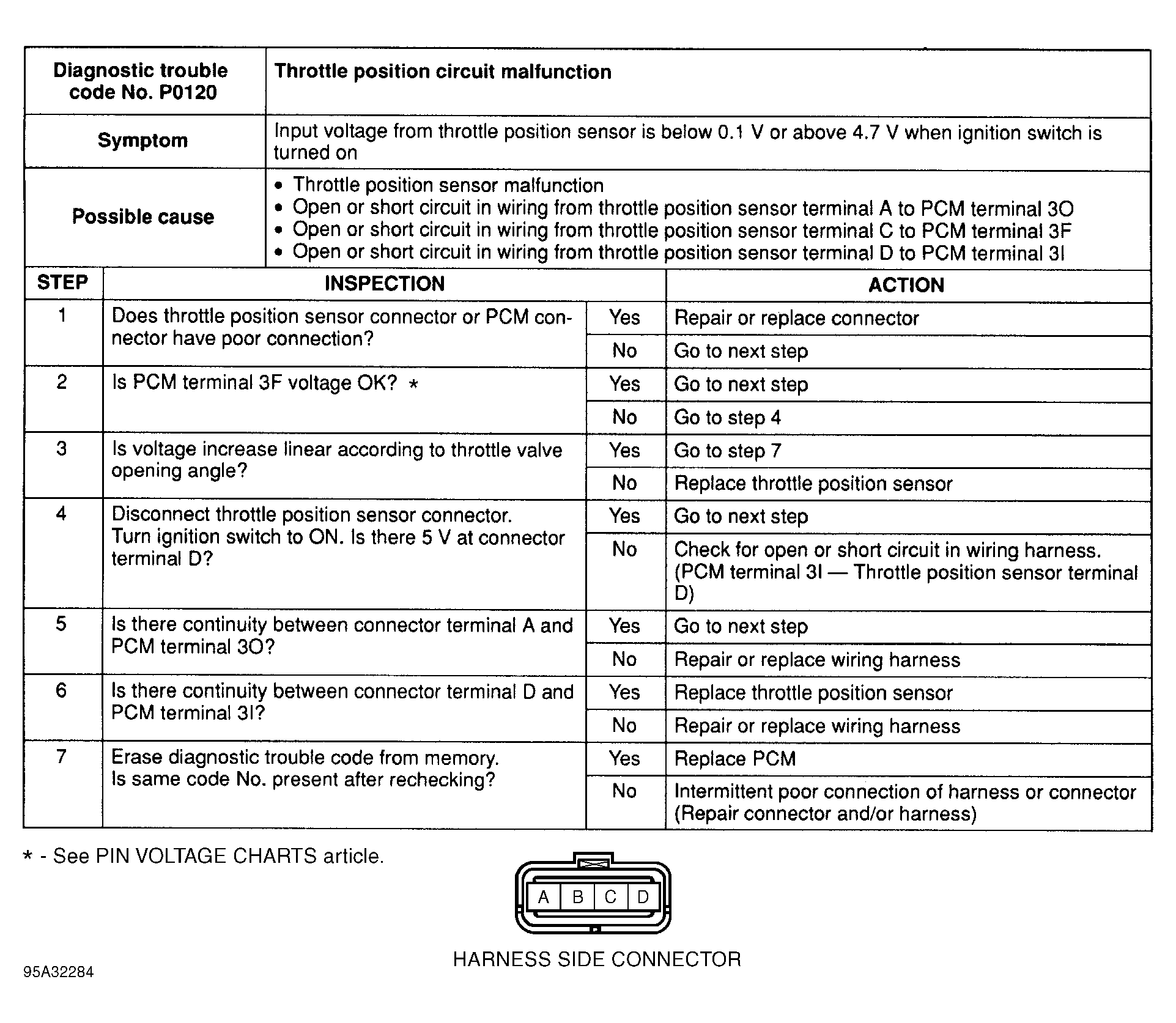

Fig 1: Trouble Code No. P0120 Throttle Position Circuit Malfunction

G95A32284
