Engine Controls - Tests W/Codes - 1.5L
>>
Trouble Code Charts
>>
Code P1797: A/T P Or N Position Signal
Code P1797: A/T P Or N Position Signal

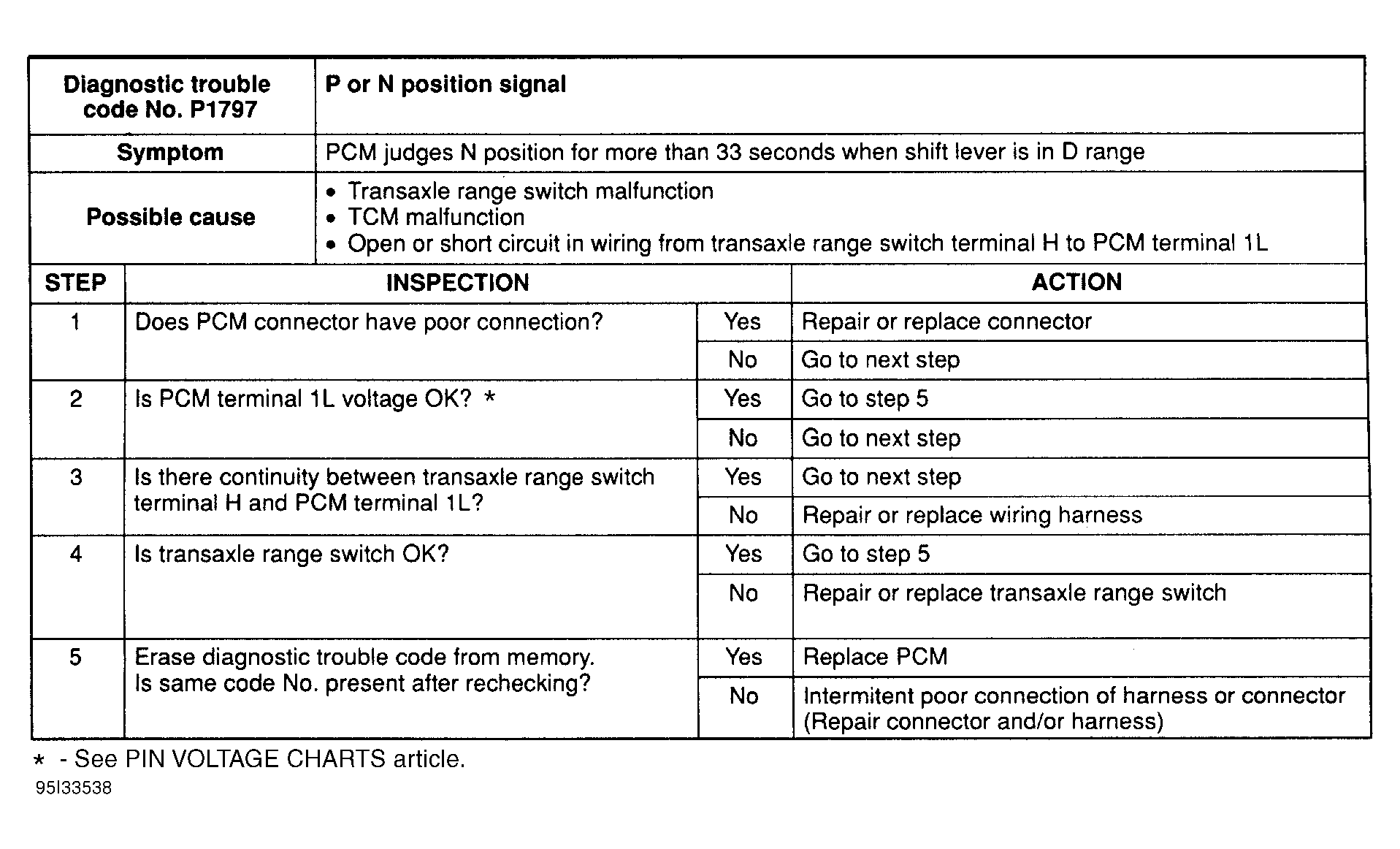

Fig 1: Trouble Code No. P1797 (A/T) P Or N Position Signal
