Engine Controls - Tests W/Codes - 2.3L
>>
Trouble Code Charts
>>
Code P1110: Intake Air Temperature Sensor - Dynamic Chamber
Code P1110: Intake Air Temperature Sensor - Dynamic Chamber

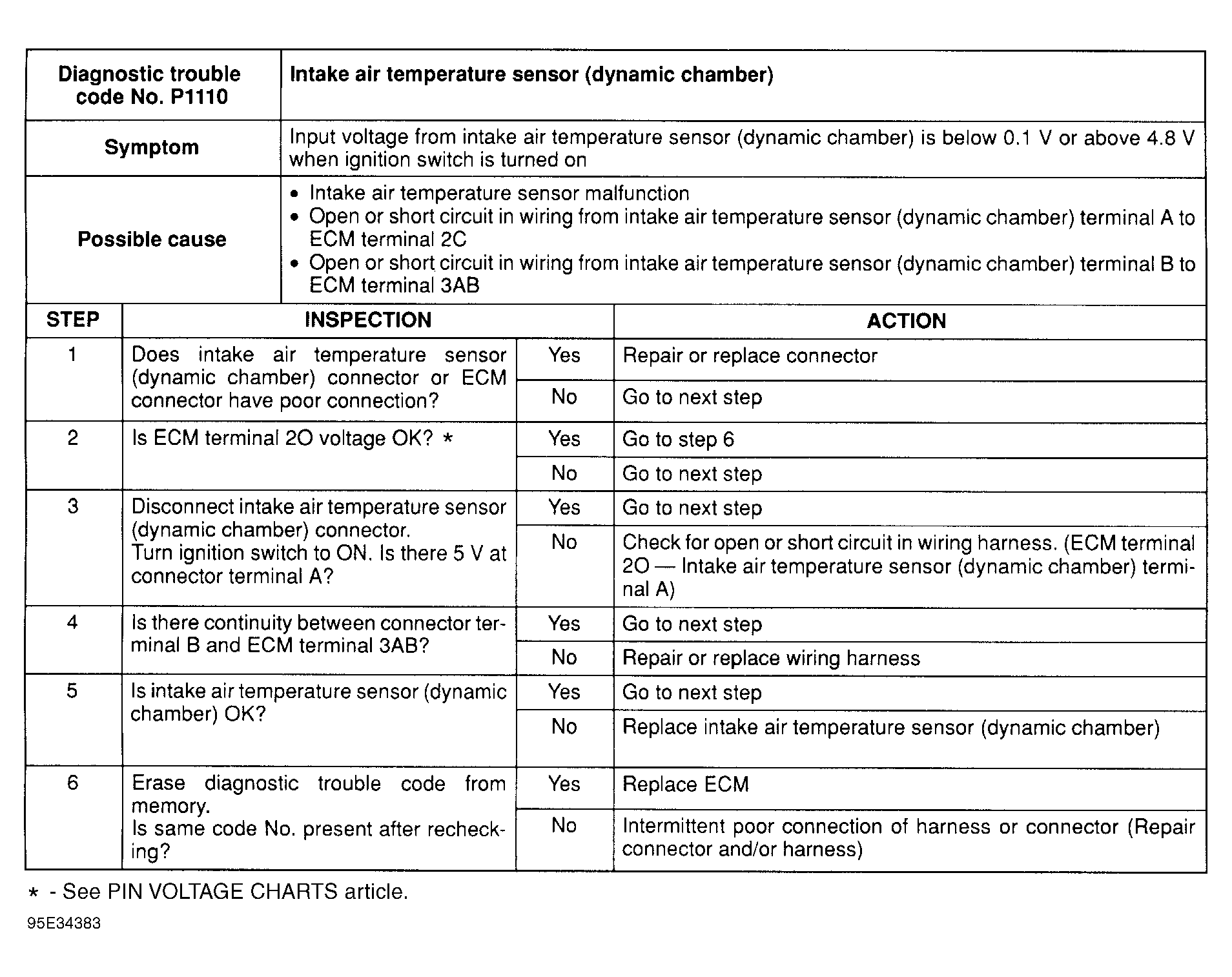

Fig 1: Trouble Code No. P1110 Intake Air Temperature Sensor - Dynamic Chamber
