Engine Controls - Tests W/Codes - 2.5L
>>
Trouble Code Charts
>>
Code P1170: Front Right Heated Oxygen Sensor - Inversion
Code P1170: Front Right Heated Oxygen Sensor - Inversion

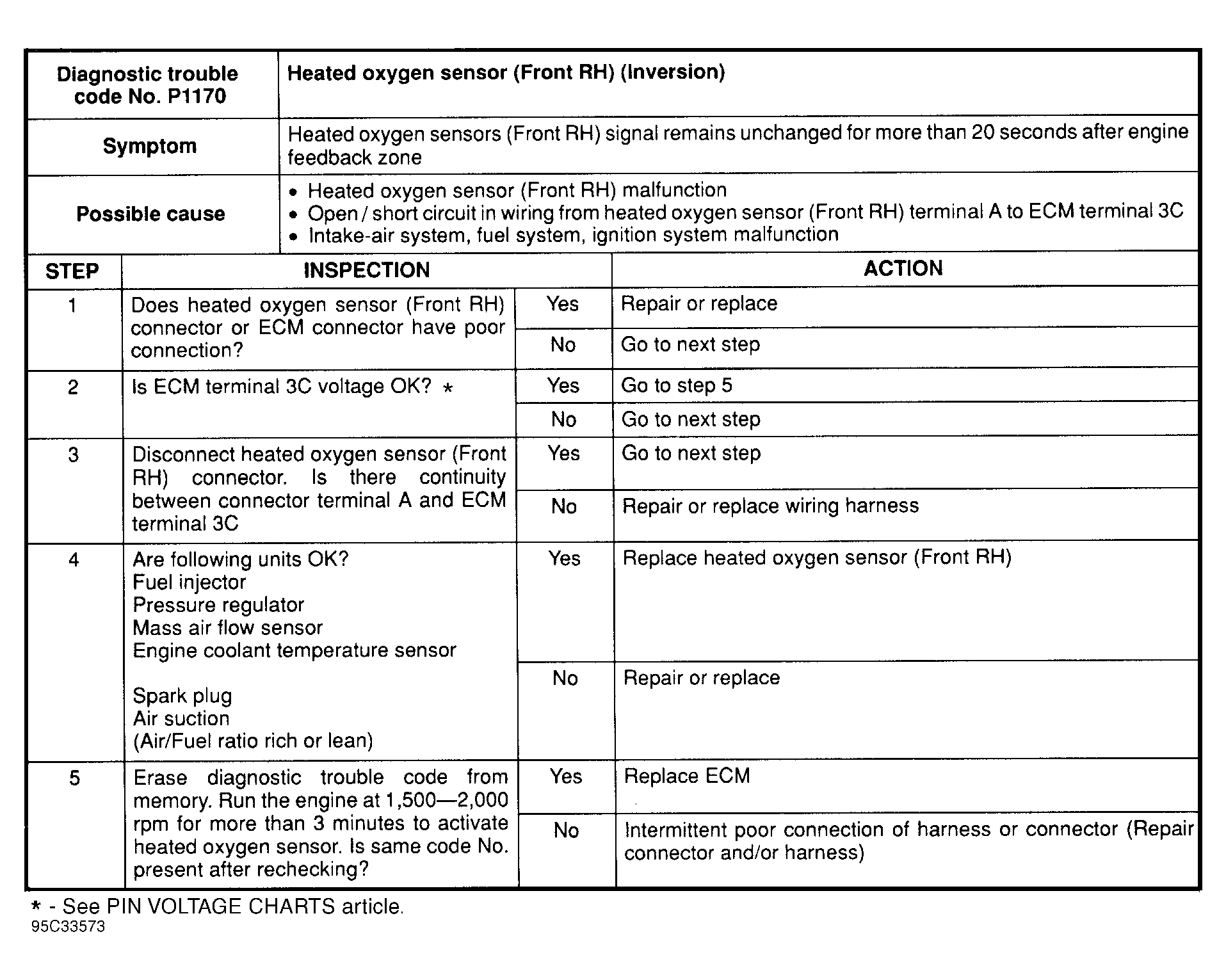

Fig 1: Trouble Code No. P1170 Front Right Heated Oxygen Sensor - Inversion
