Code P0325: Knock Sensor No. 1 Circuit Malfunction
Code P0325: Knock Sensor No. 1 Circuit Malfunction

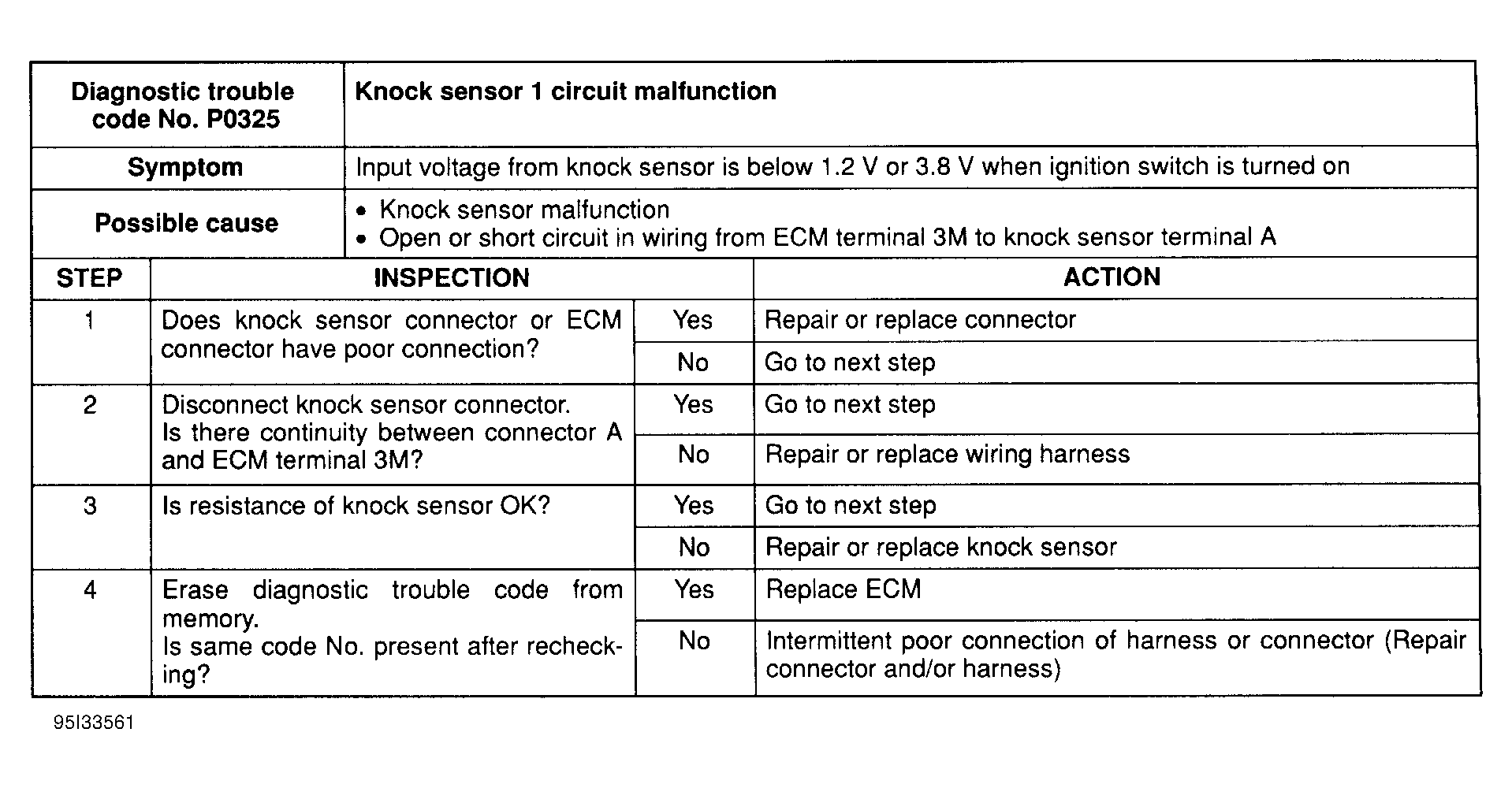

Fig 1: Trouble Code No. P0325 Knock Sensor No. 1 Circuit Malfunction
