Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |
| ABS Relay Box |
On left front inner fender panel, near main fuse block, in engine compartment. |
| Joint Box |

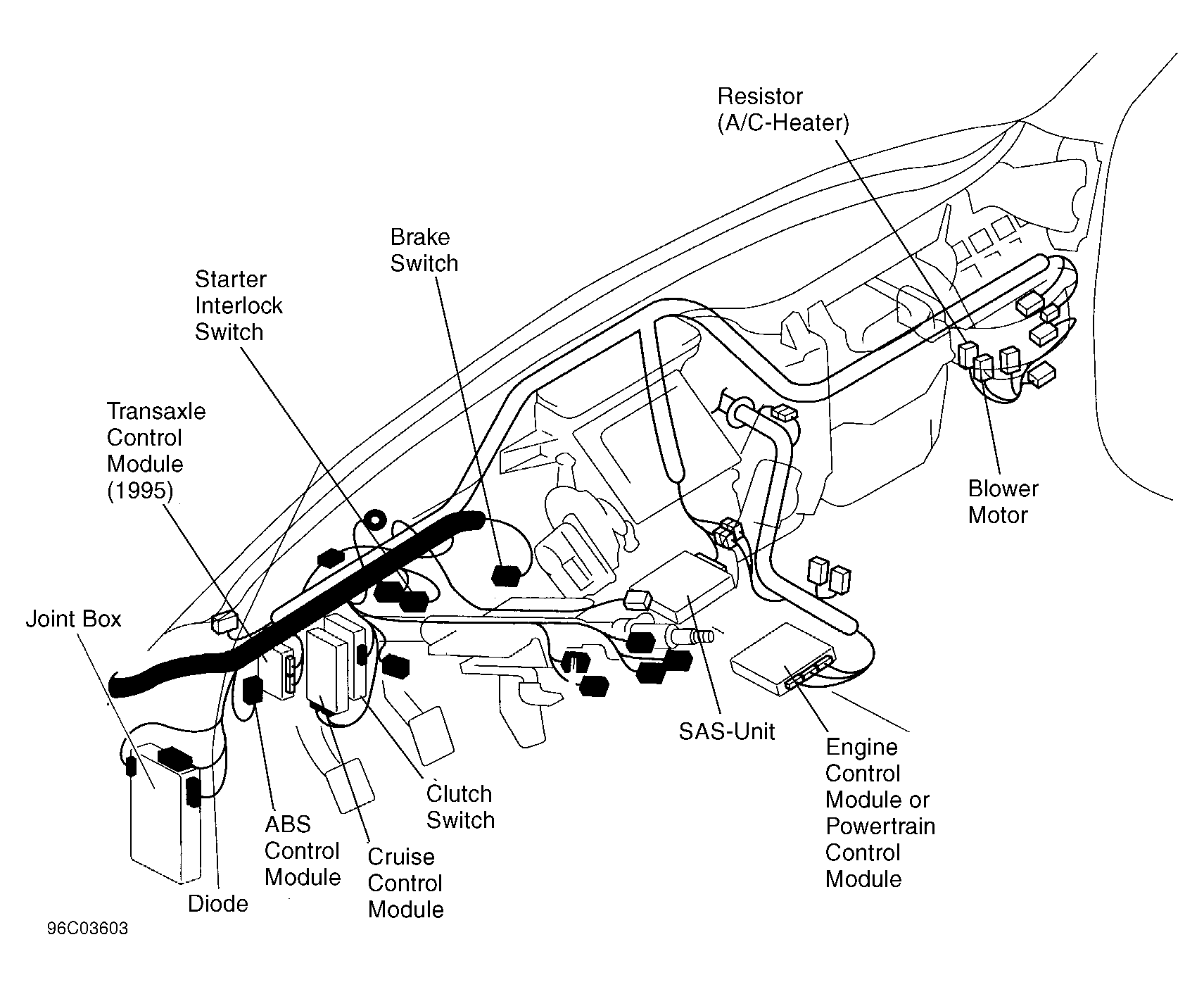

Behind left side of dash. See Figure
. |
| Main Fuse Block |

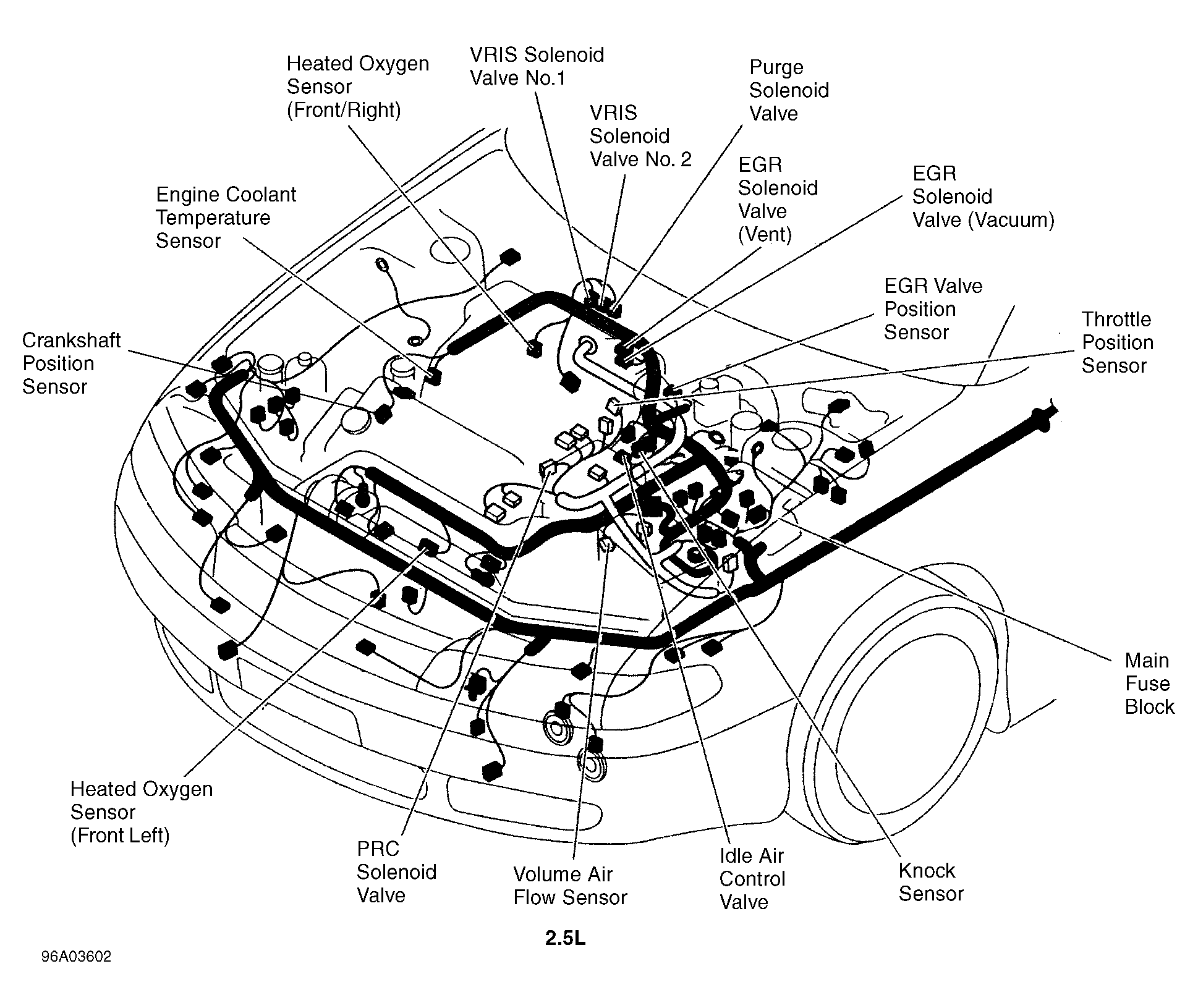

On left front inner fender panel, in engine compartment. See Figure
. |
