Home >> Mazda >> 1995 >> MX-6 Base, Standard >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Controls - Tests W/Codes - 2.0L M/T >> Trouble Code Identification Charts >> Notes

Trouble Code Identification Charts: Notes

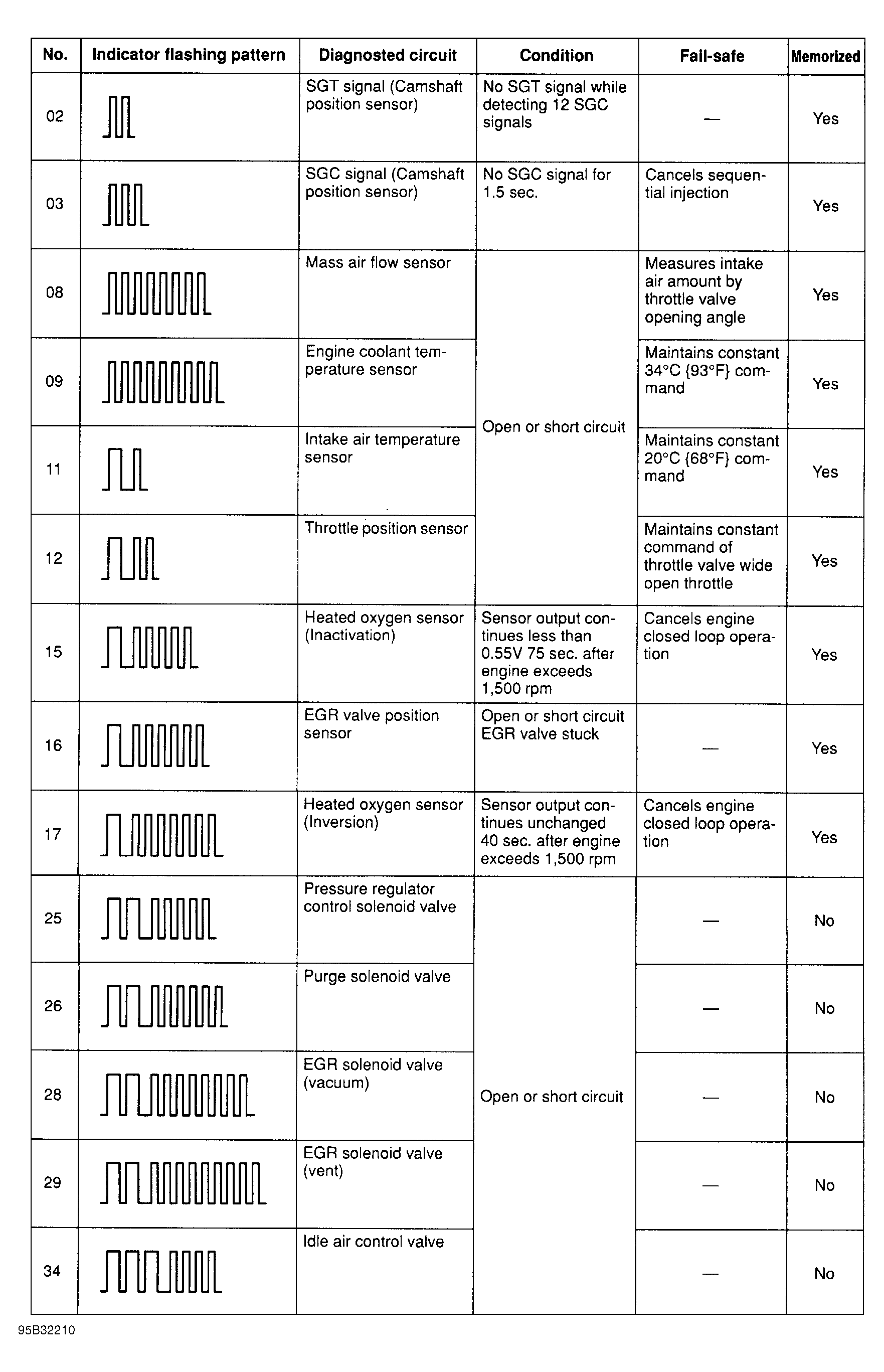

Fig 1: Diagnostic Trouble Code Definition Chart

G95B32210

Courtesy of MAZDA MOTORS CORP.
