Engine Controls - Tests W/Codes - 2.0L M/T
>>
Trouble Code Charts
>>
Code 9: Engine Coolant Temperature Sensor
Code 9: Engine Coolant Temperature Sensor

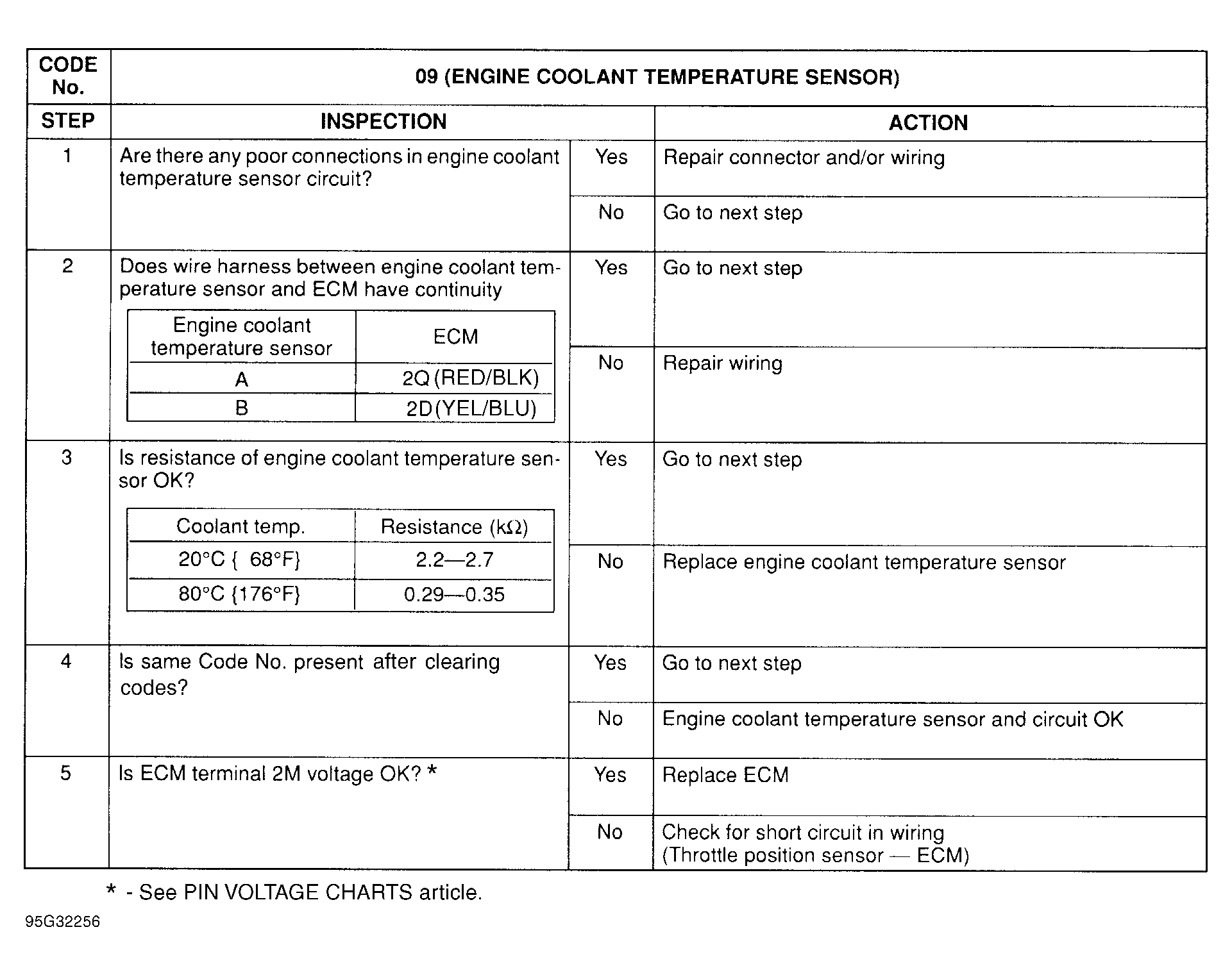

Fig 1: Trouble Code No. 9 Engine Coolant Temperature Sensor

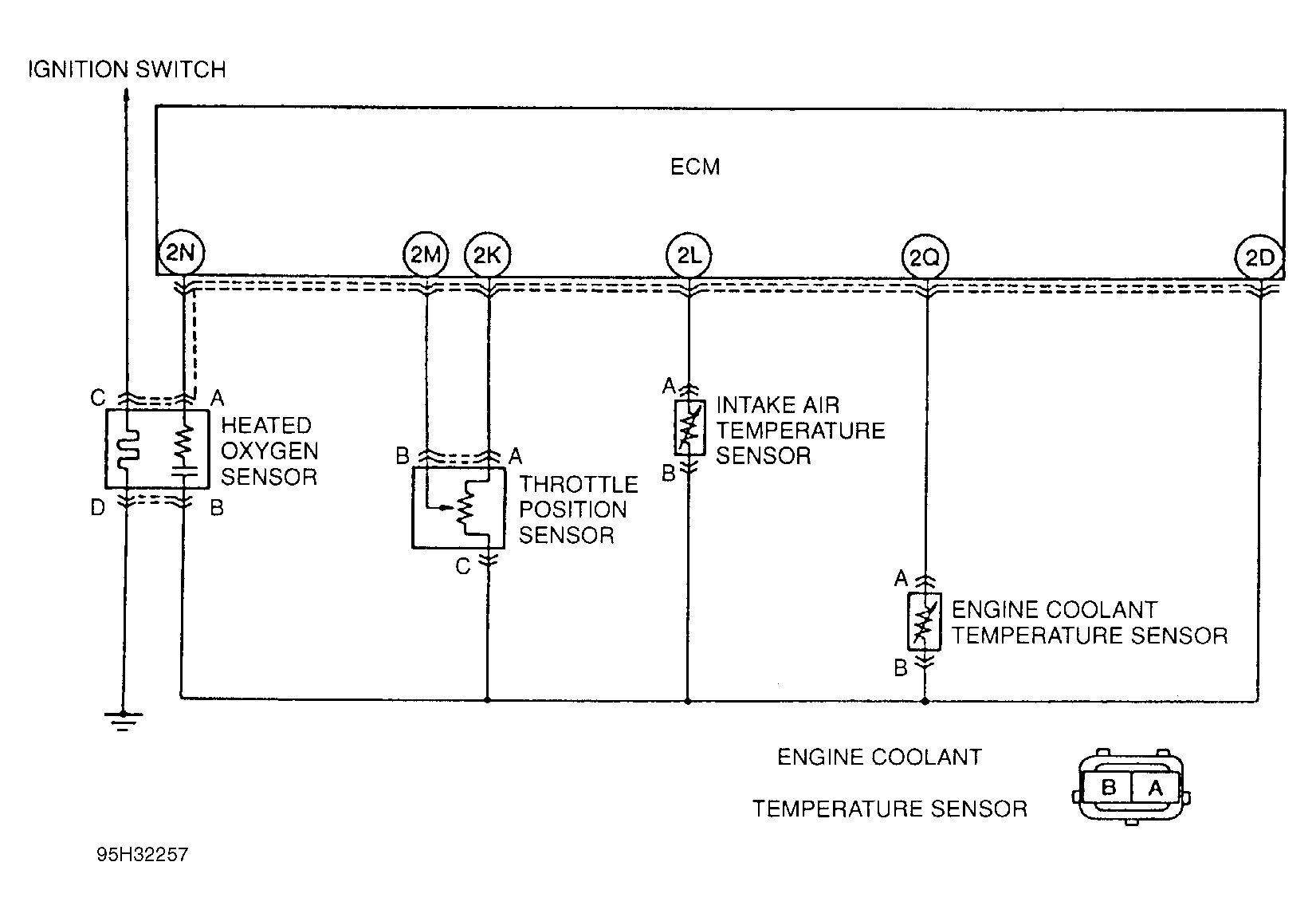

Fig 2: Trouble Code No. 9 Engine Coolant Temperature Sensor Circuit Diagram
