Code 3: Distributor - SGC Signal

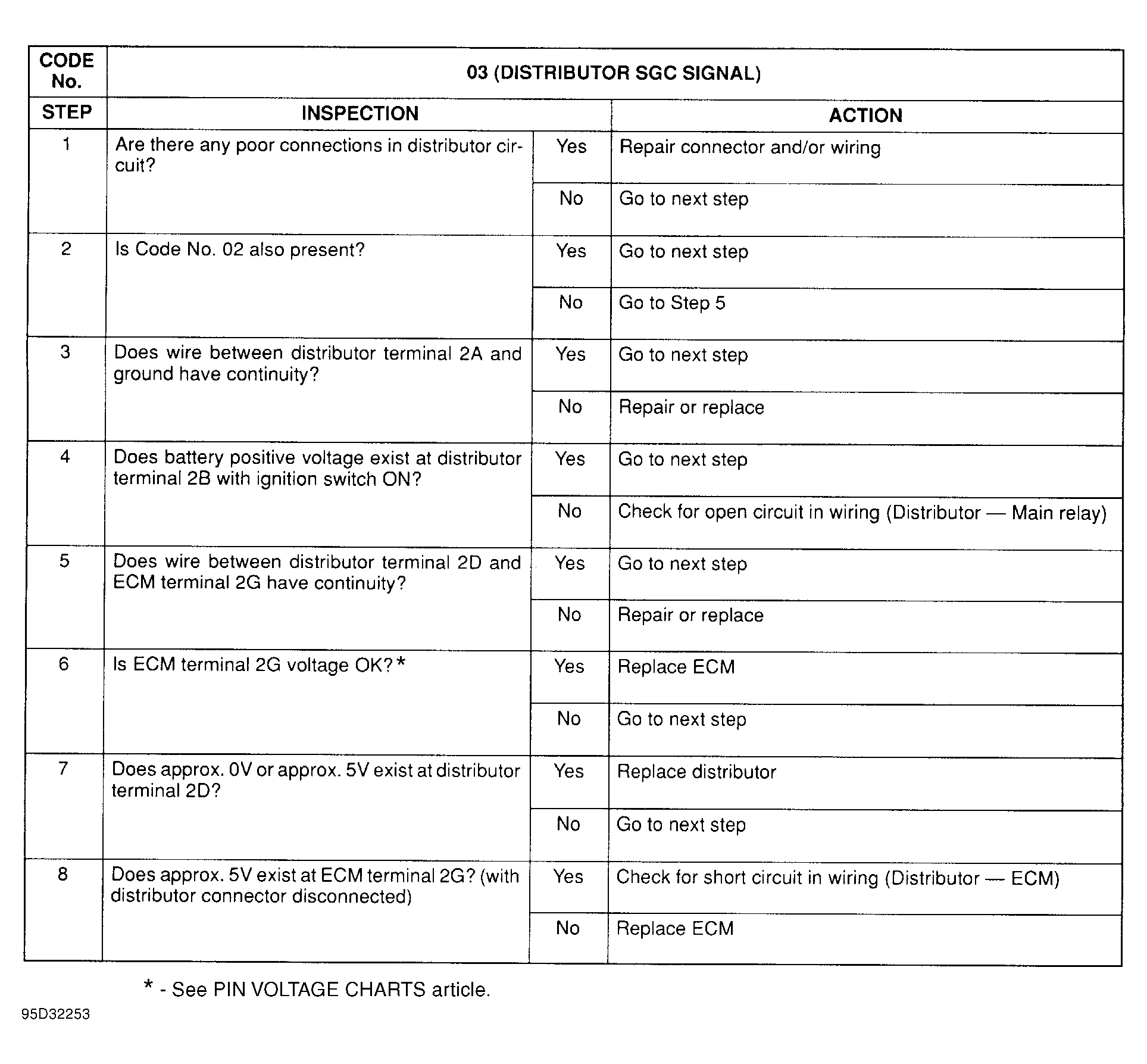

Fig 1: Trouble Code No. 3 Distributor - SGC Signal0

G95D32253

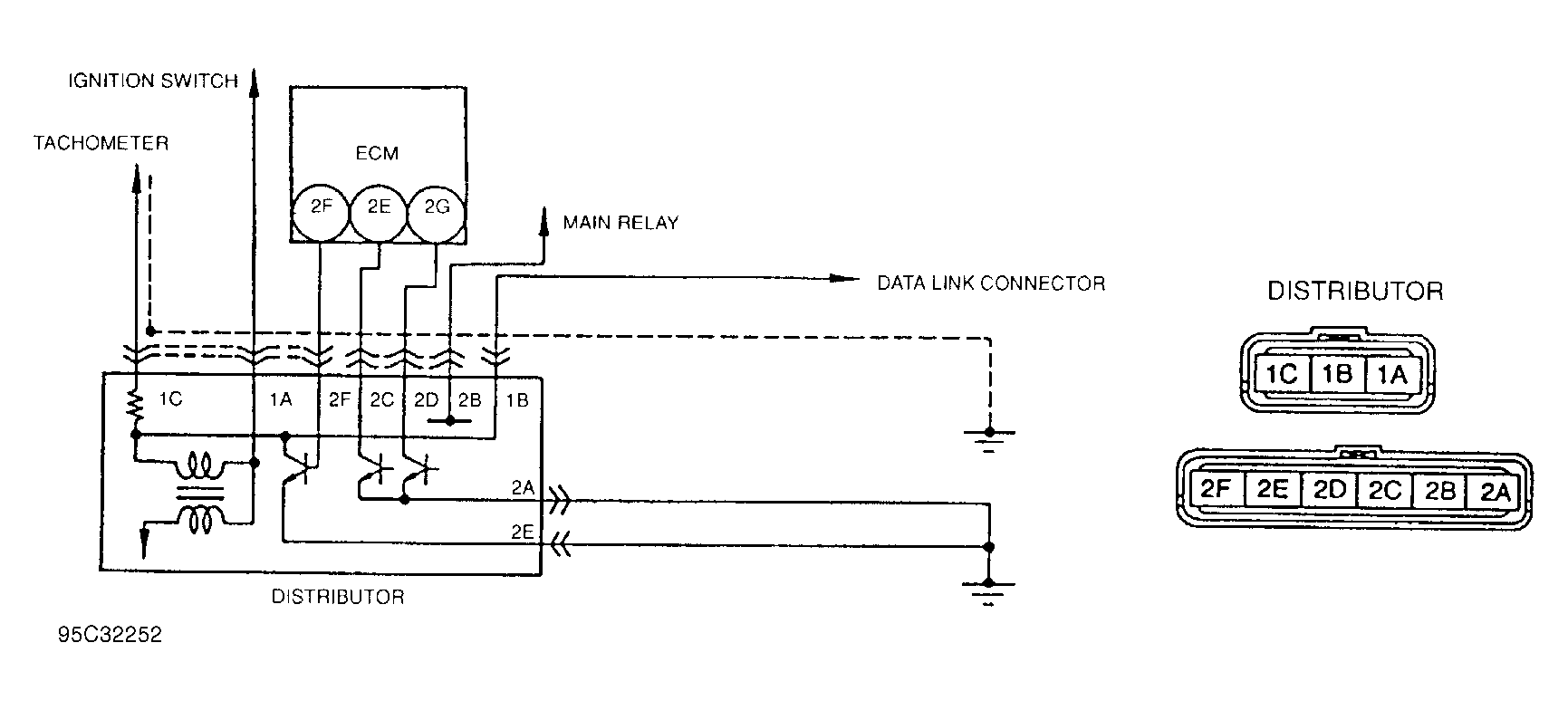

Fig 2: Trouble Code No. 3 Distributor Circuit Diagram

G95C32252
