Code 12: Throttle Position Sensor

WARNING: This page is about a different variant/trim than selected.

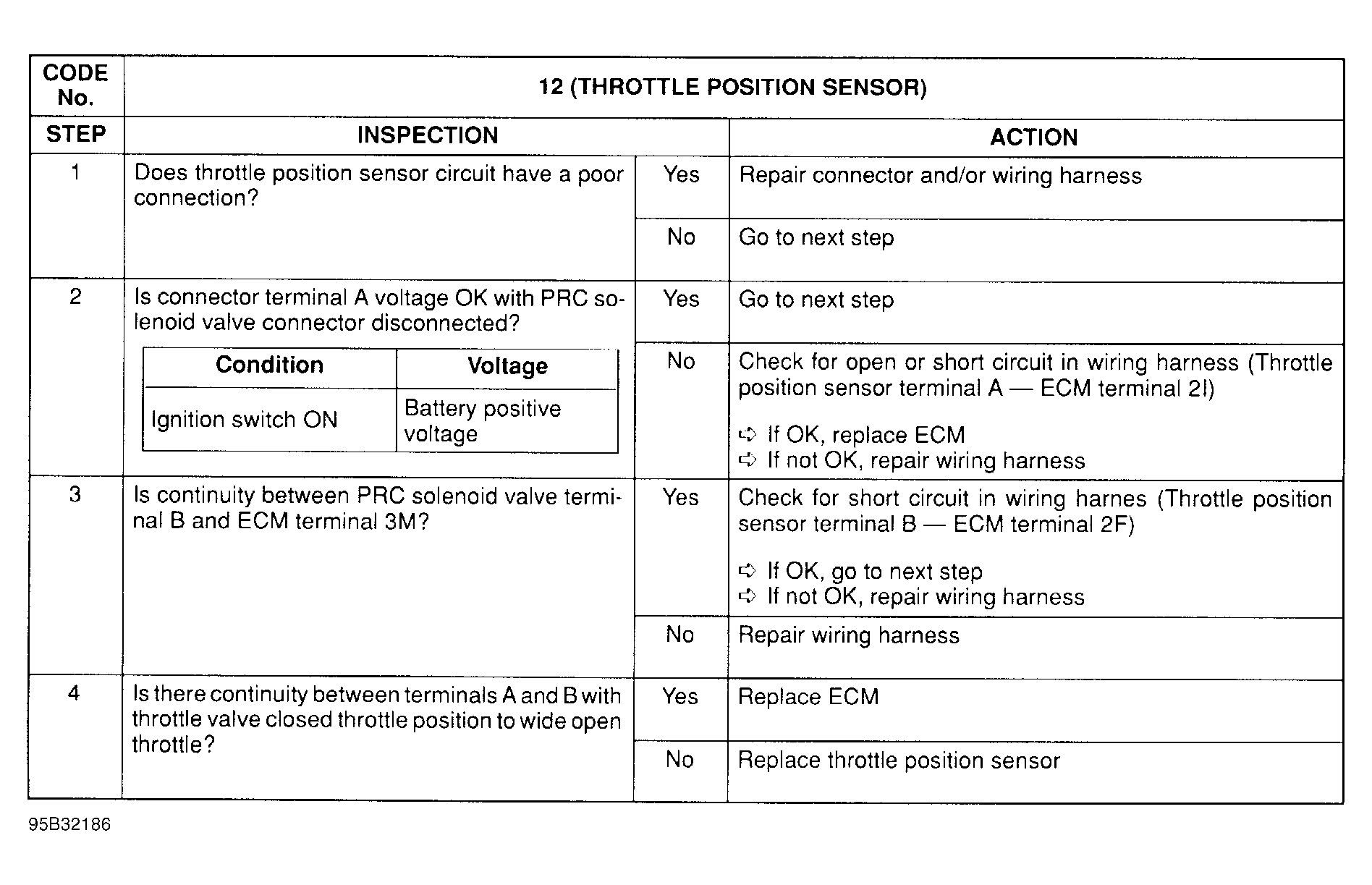

Fig 1: Trouble Code No. 12 Throttle Position Sensor
G95B32186

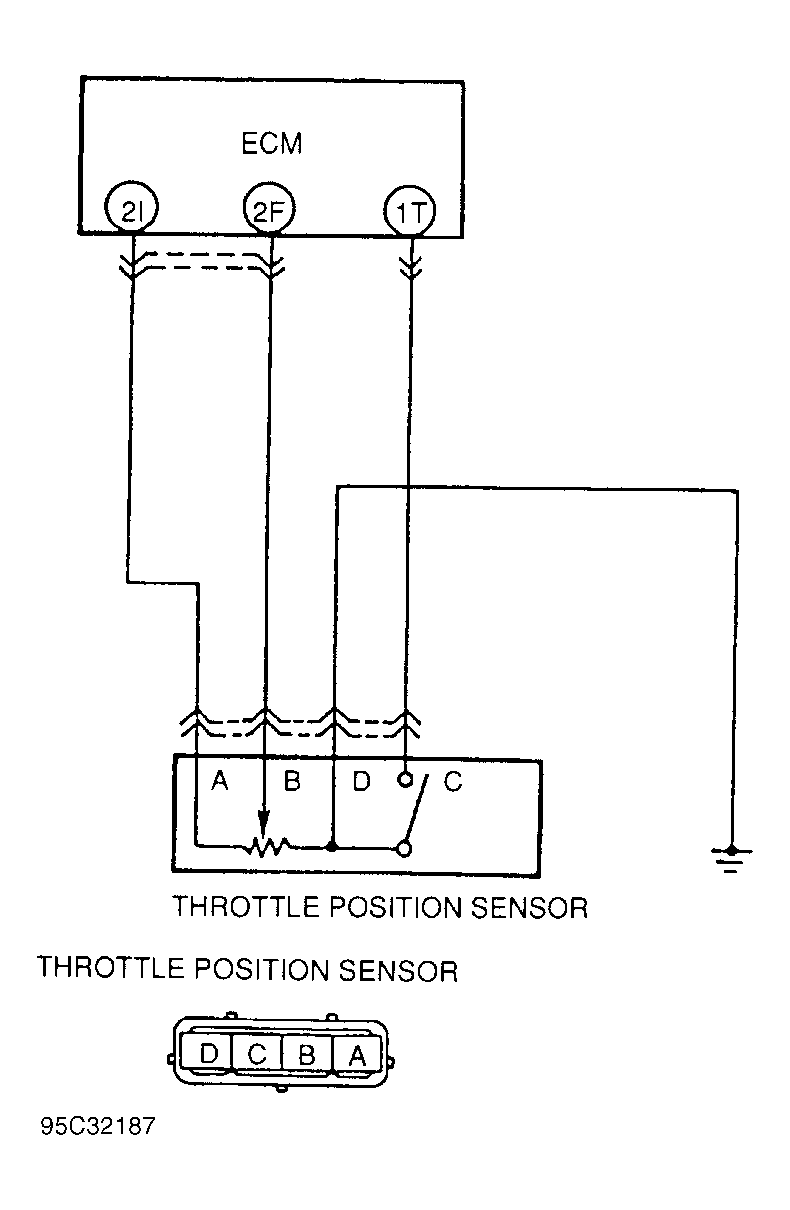

Fig 2: Trouble Code No. 12 Throttle Position Sensor Circuit Diagram
G95C32187
