Code 4: SGC Signal - Camshaft Position Sensor

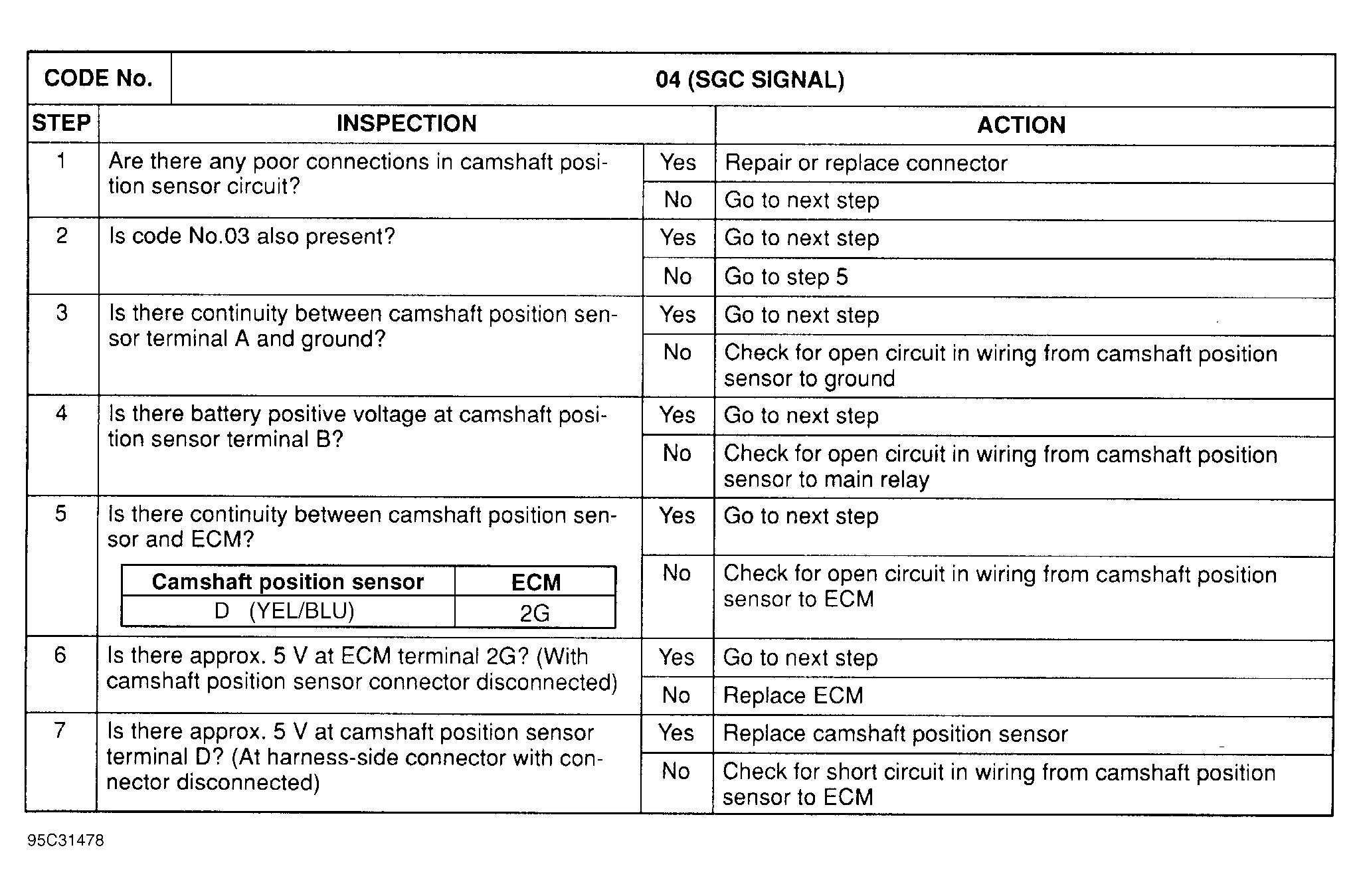

Fig 1: Trouble Code No. 4 SGC Signal - Camshaft Position Sensor

G95C31478

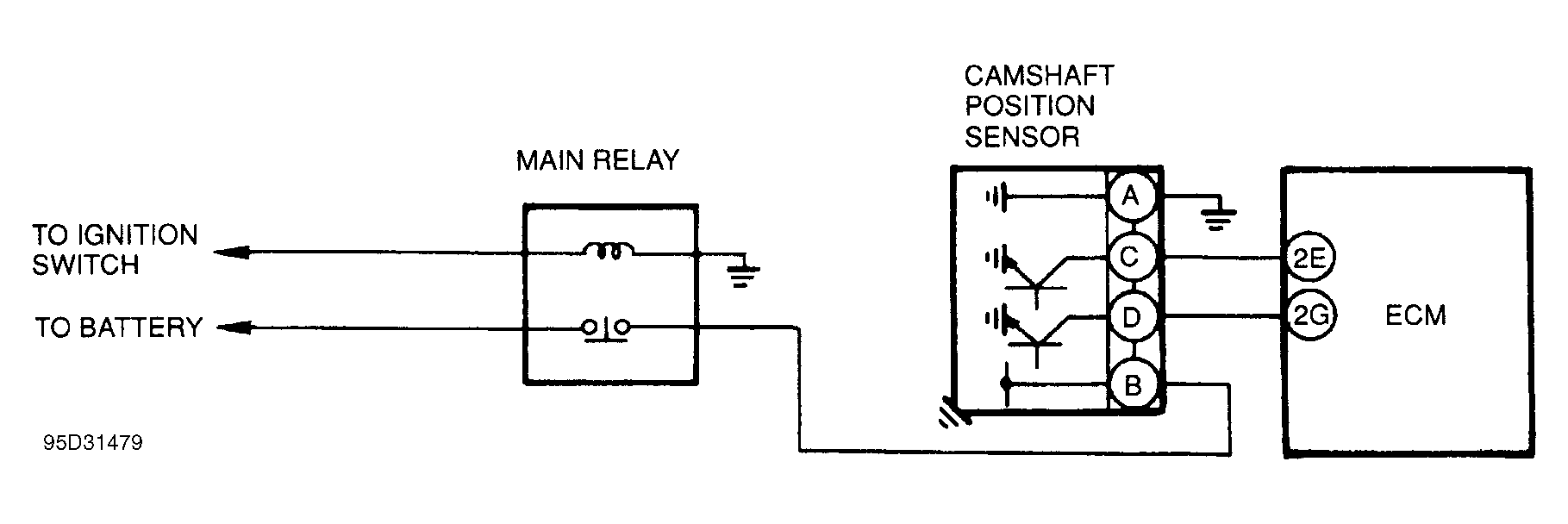

Fig 2: Trouble Code No. 4 Camshaft Position Sensor Circuit Diagram

G95D31479
