Rear Wiper/Washer Switch

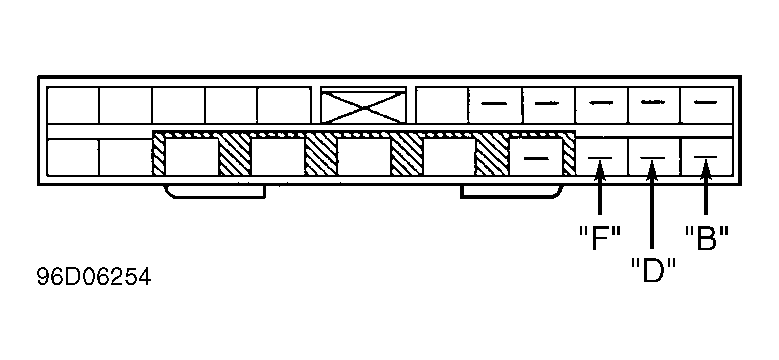

Remove steering column shrouds. Remove combination switch from steering column. Check for continuity at indicated terminals with rear wiper/washer switch in specified position. See REAR WIPER/WASHER SWITCH TEST . SeeFig 1 . If continuity is not as specified, replace rear wiper switch.
REAR WIPER/WASHER SWITCH TEST
| Switch Position | Continuity Between Terminals | |
|---|---|---|
| Wiper | ||
| Off | "F" & "B" | |
| On | "F" & "B" | |
| Washer ON | "A" & "B"; "F" & "G" | |
| Top | "B" & "D" | |
| Bottom | "B" & "D"; "C" & "F" | |
