Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

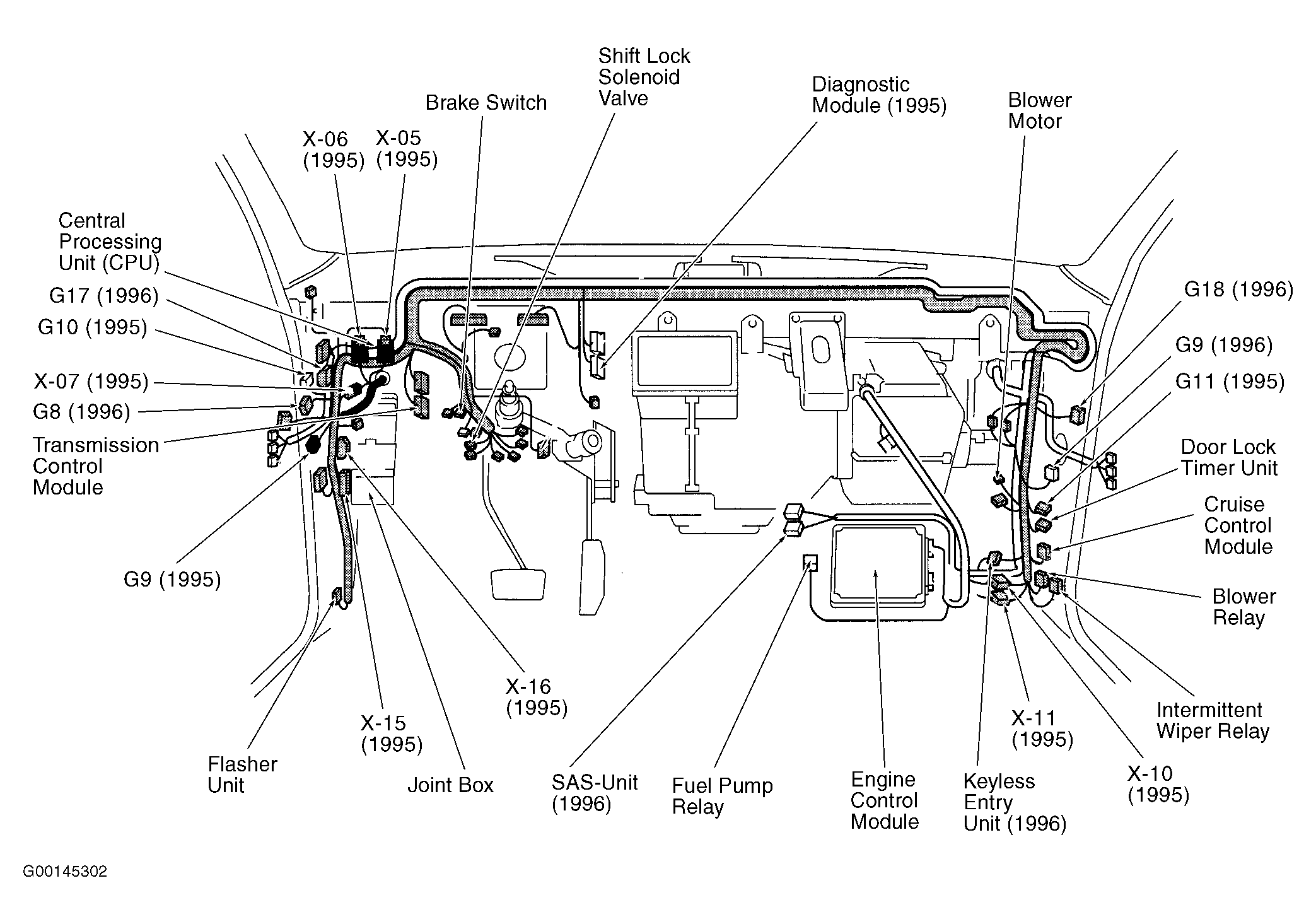

Joint Box Behind left side of dash. See Figure .
Main Fuse Box On rear of right front inner fender panel. See Figure .
Relay Box On left front inner fender panel. See Figure .
