Control Valve Housing: Disassembly

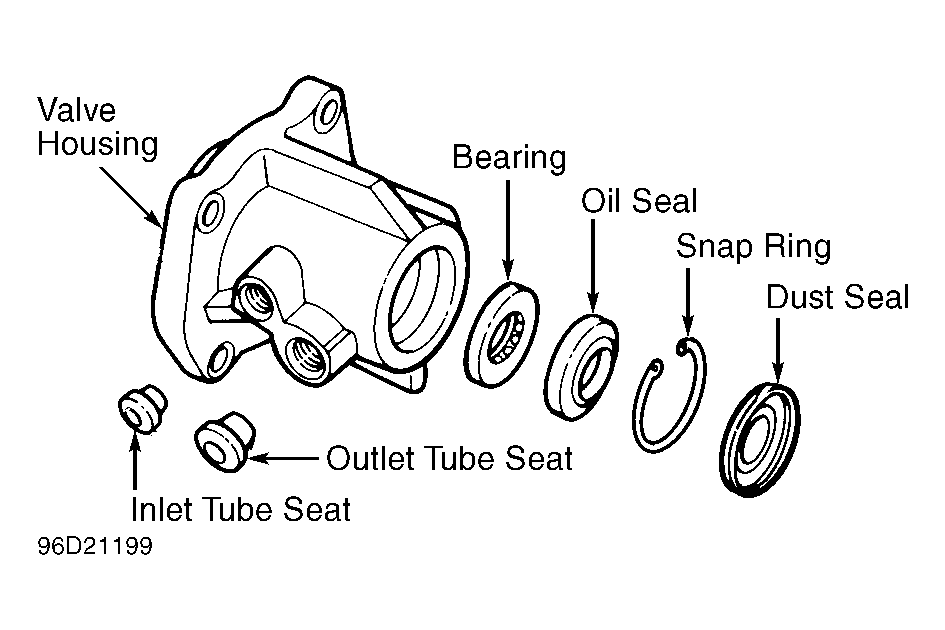

  1. Using Puller Attachment (T58L-101-B ) and Slide Hammer (T59L-100-B ), remove dust seal from rear of valve housing. Discard seal. Remove snap ring from valve housing. See Figure .
  2. Turn valve housing over. Insert Driver Handle (T65P-3524-A2 ) and Bearing/Seal Remover (T65-3524-A3 ) in valve housing opposite oil seal. Tap bearing and seal out of housing. Discard seal. If damaged, remove inlet and outlet tube seats using Tube Seat Remover (T74P-3504-L ).
