Codes P1444 & P1445: Purge Flow Sensor Circuit Malfunction

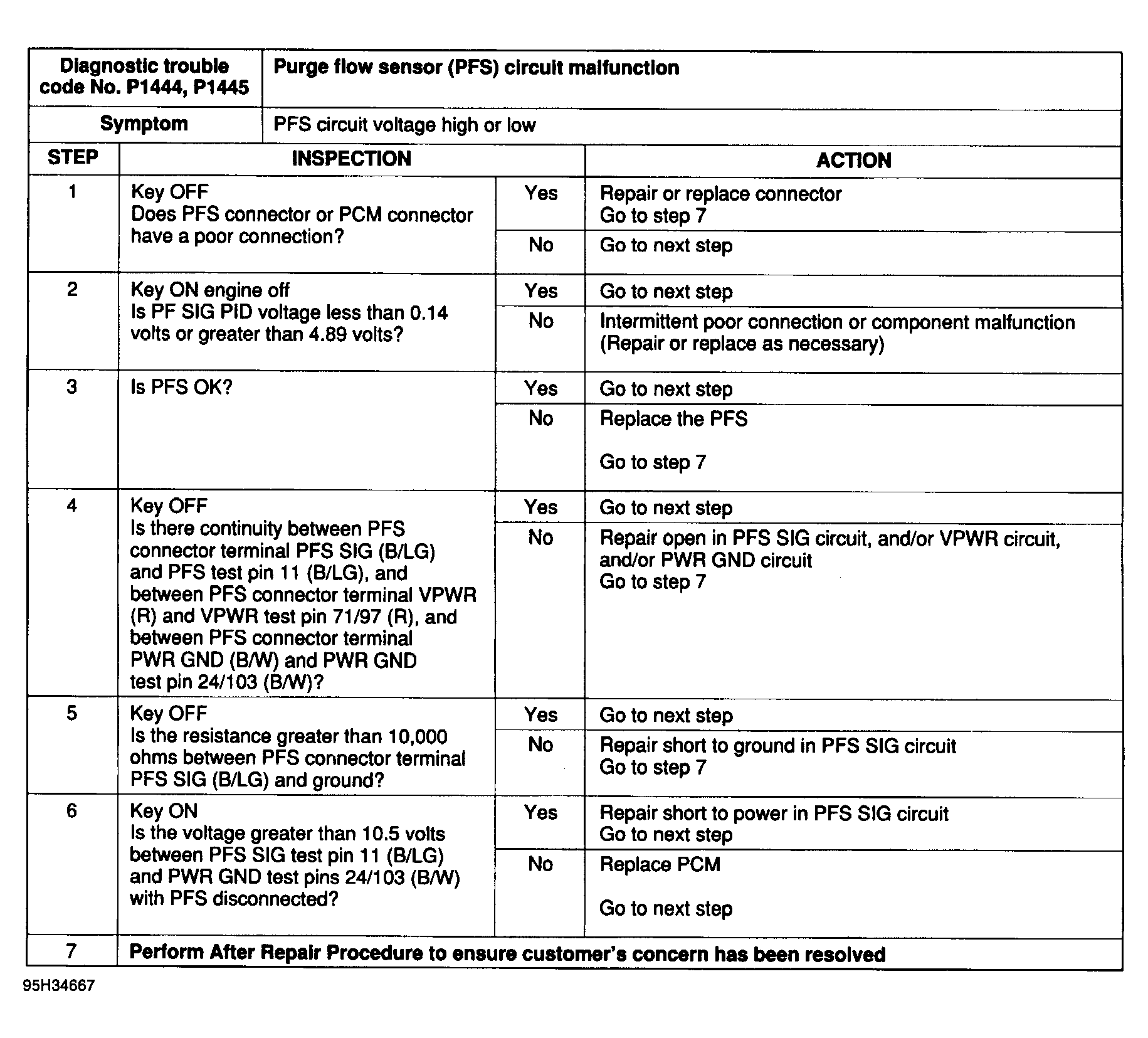

Fig 1: Trouble Codes No. P1444 & P1445 Purge Flow Sensor Circuit Malfunction
G95H34667
Fig 2: Trouble Codes No. P1444 & P1445 Purge Flow Sensor (PFS) Circuit Diagram
G95A34637
