Code P1460: Wide Open Throttle Cut-Off Relay Or A/C Circuit Malfunction

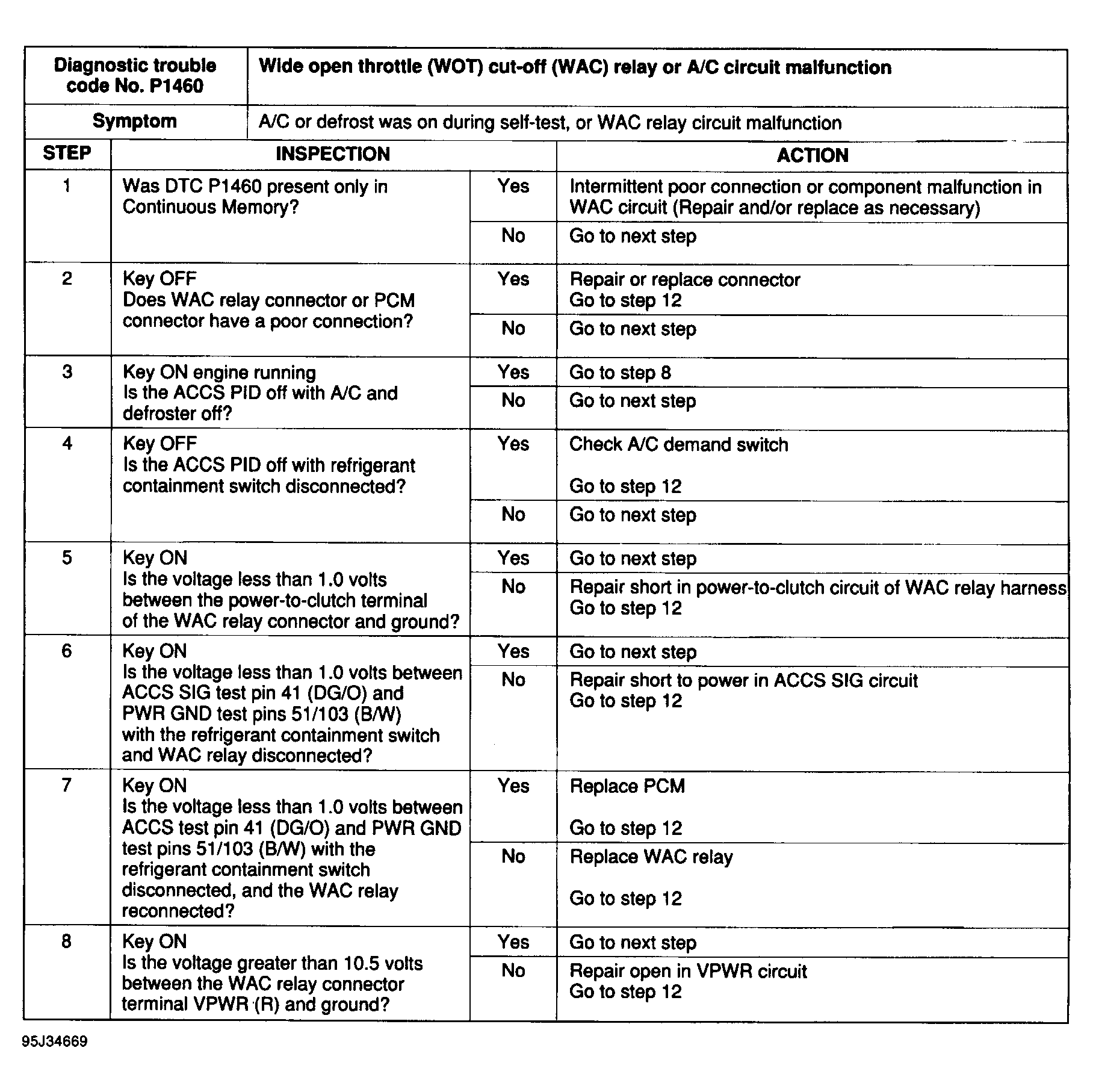

Fig 1: Trouble Code No. P1460 Wide Open Throttle Cut-Off Relay Or A/C Circuit Malfunction (1 Of 2)
G95J34669

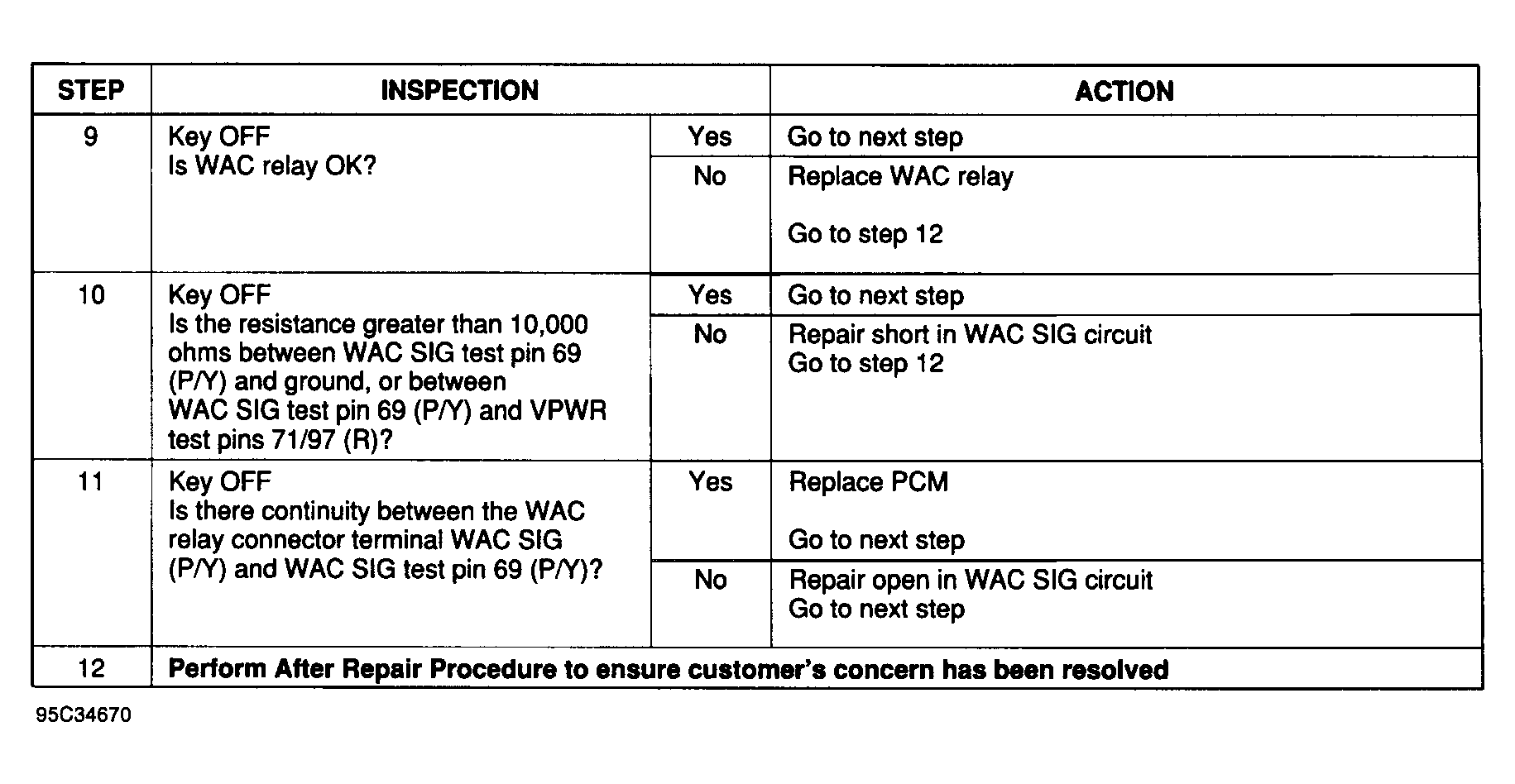

Fig 2: Trouble Code No. P1460 Wide Open Throttle Cut-Off Relay Or A/C Circuit Malfunction (2 Of 2)
G95C34670

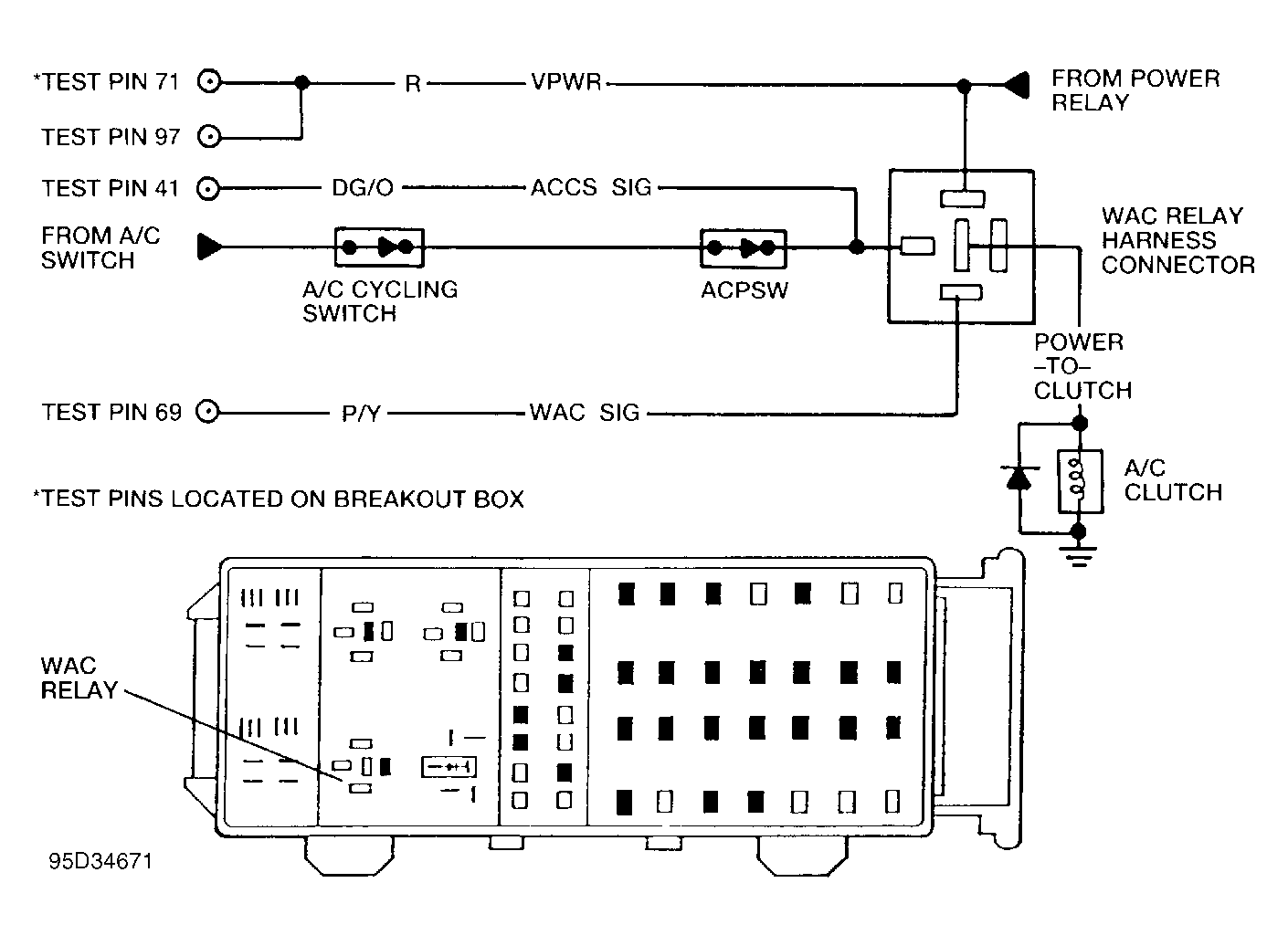

Fig 3: Trouble Code No. P1460 Wide Open Throttle (WOT) Cut-Off (WAC) Relay Or A/C Circuit Diagram
G95D34671
