Home >> Mazda >> 1995 >> 929 >> Repair and Diagnosis >> Engine Performance >> Engine Controls - Specifications >> Ignition System >> Firing Order

Firing Order

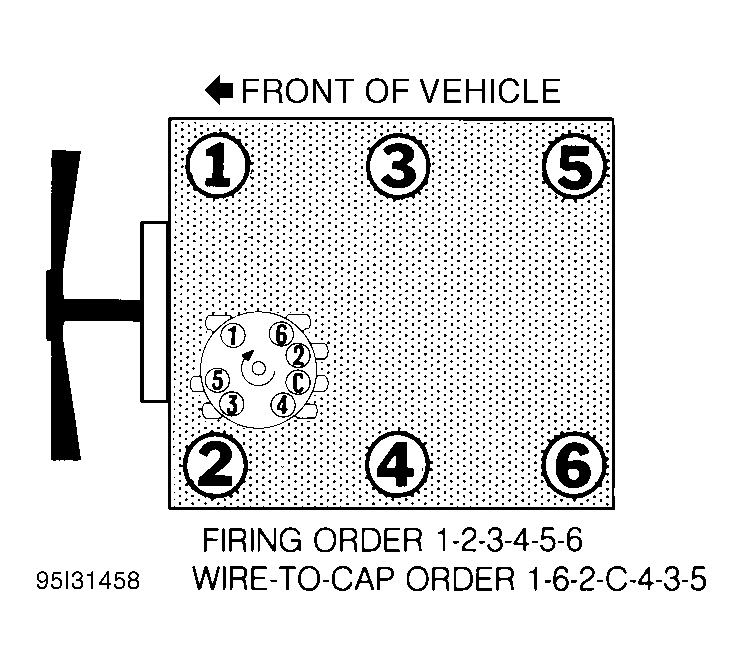

Fig 1: Firing Order & Distributor Rotation

G95I31458
