Code 2: Crankshaft Position Sensor - Ne Signal

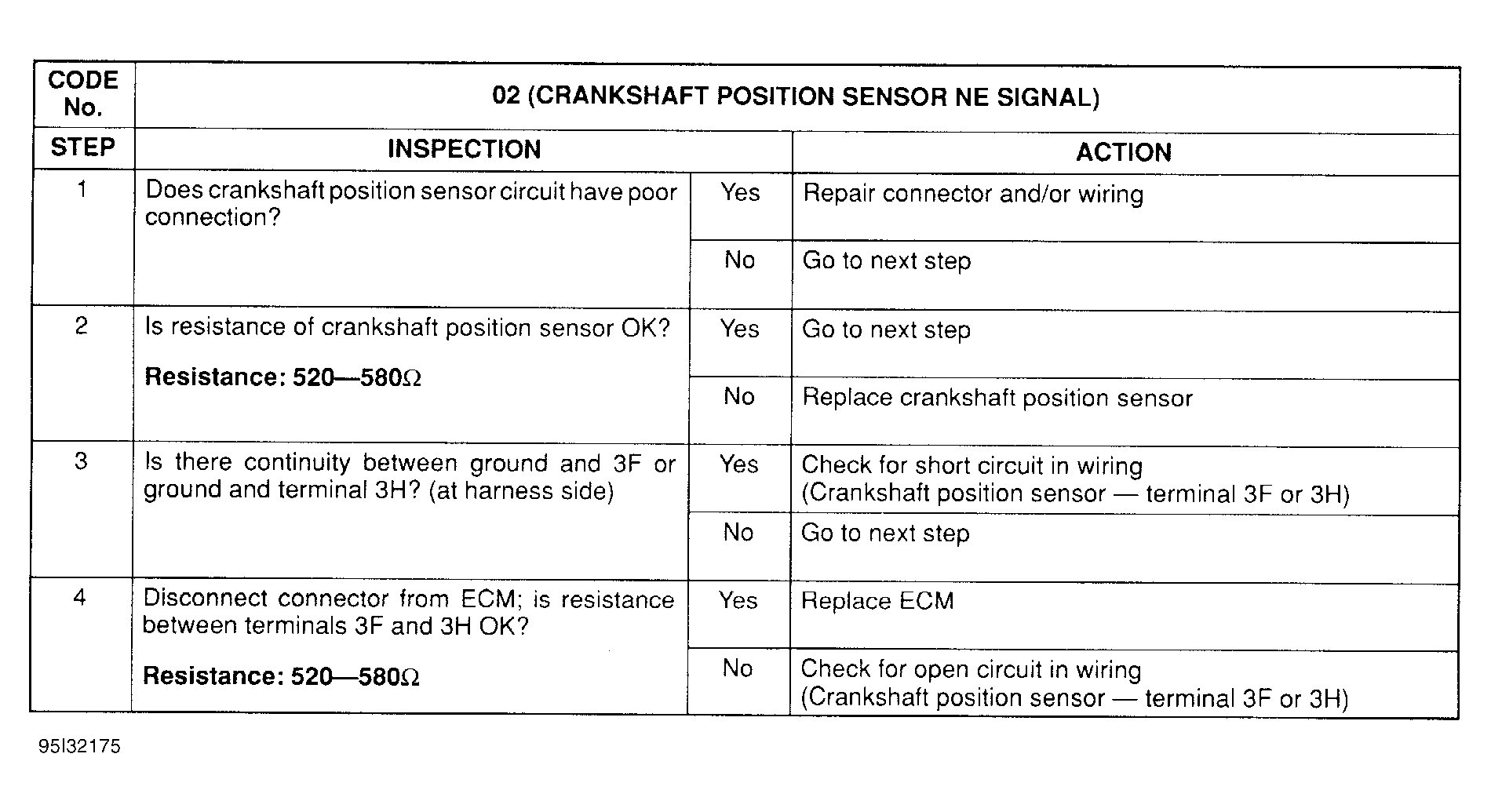

Fig 1: Trouble Code No. 2 Crankshaft Position Sensor - NE Signal

G95I32175

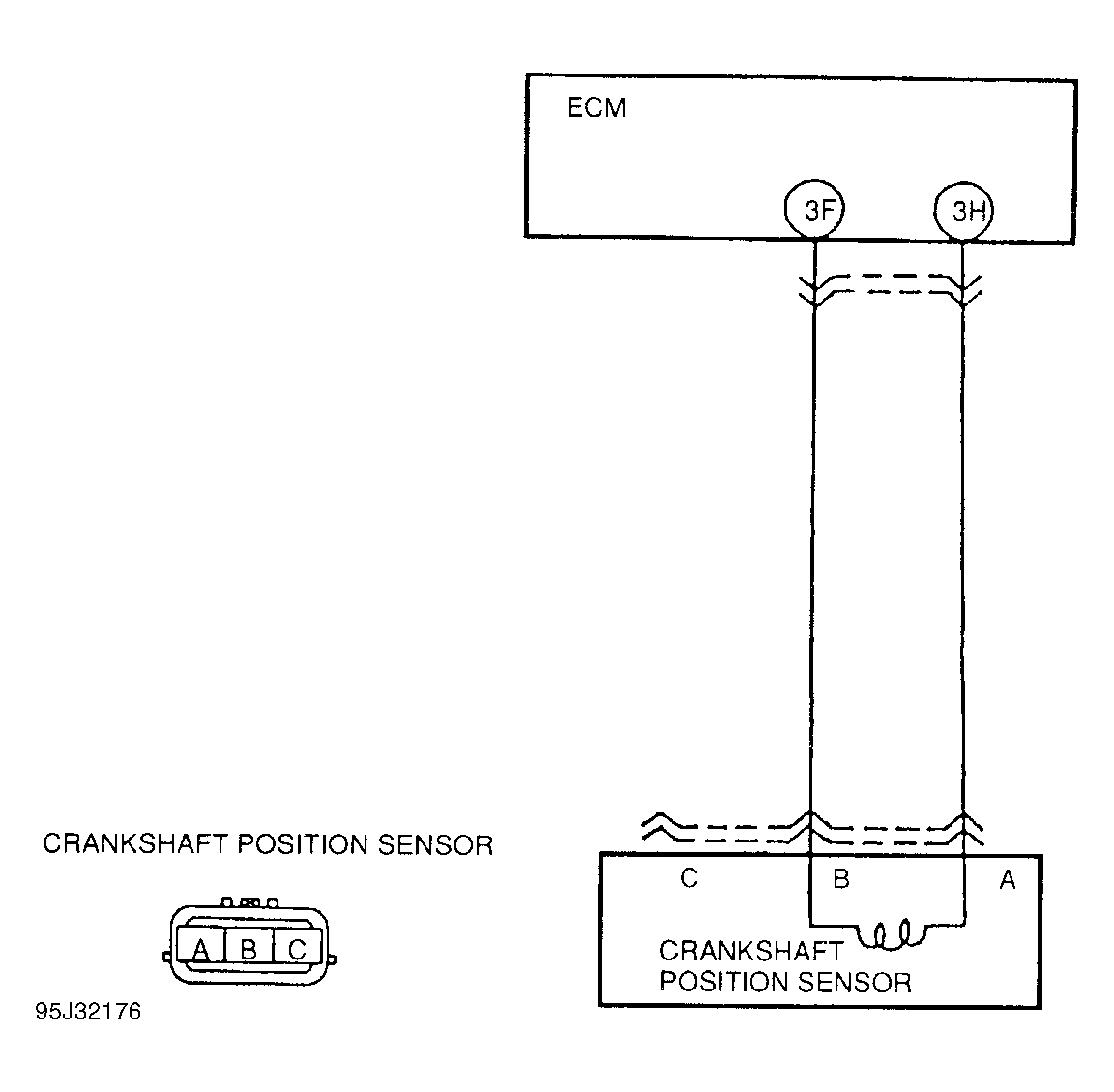

Fig 2: Trouble Code No. 2 Crankshaft Position Sensor Circuit Diagram

G95J32176
