Code 17 & 24: Heated Oxygen Sensor - Inversion

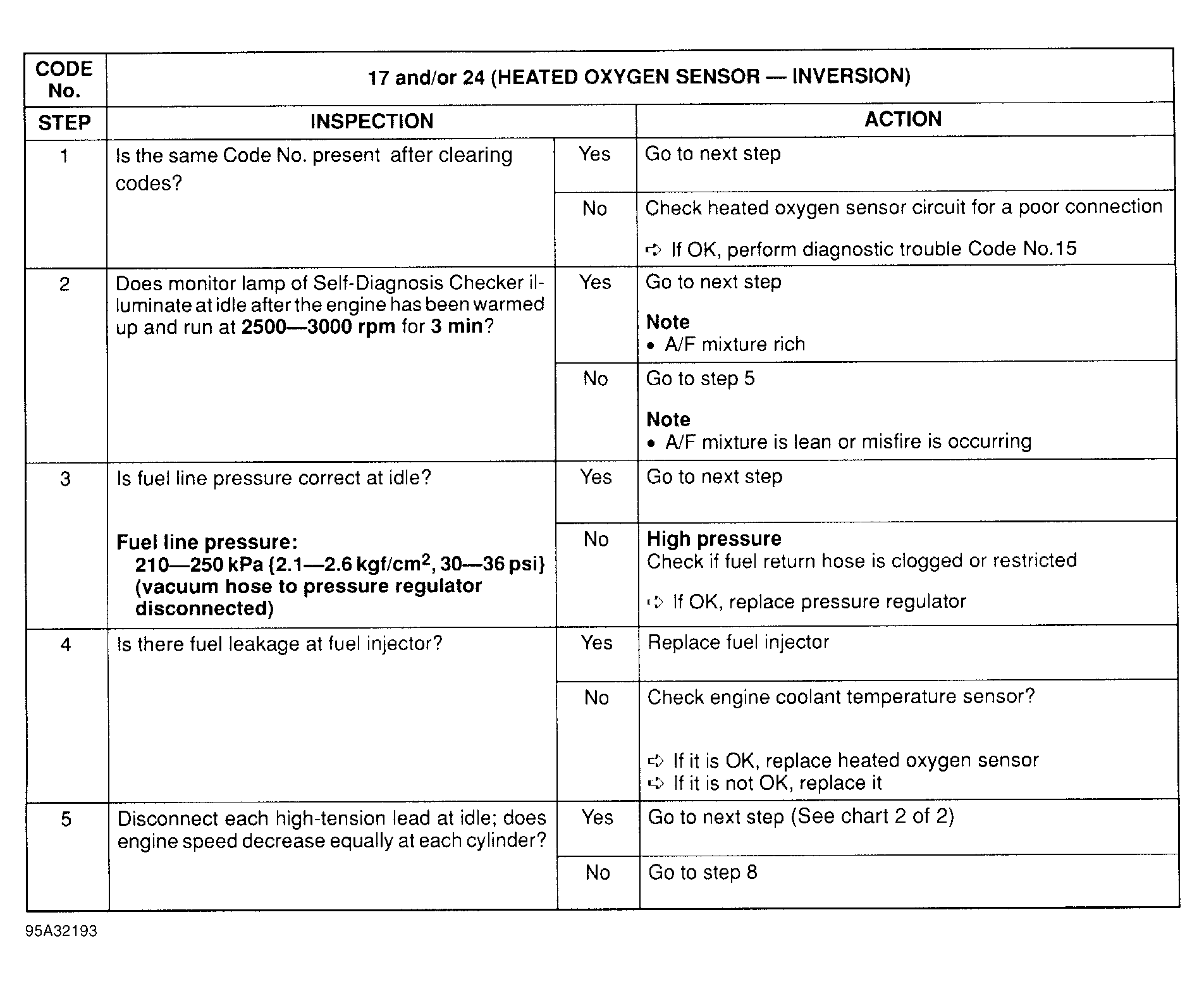

Fig 1: Trouble Code No. 17/24 Heated Oxygen Sensor - Inversion (1 Of 2)
G95A32193

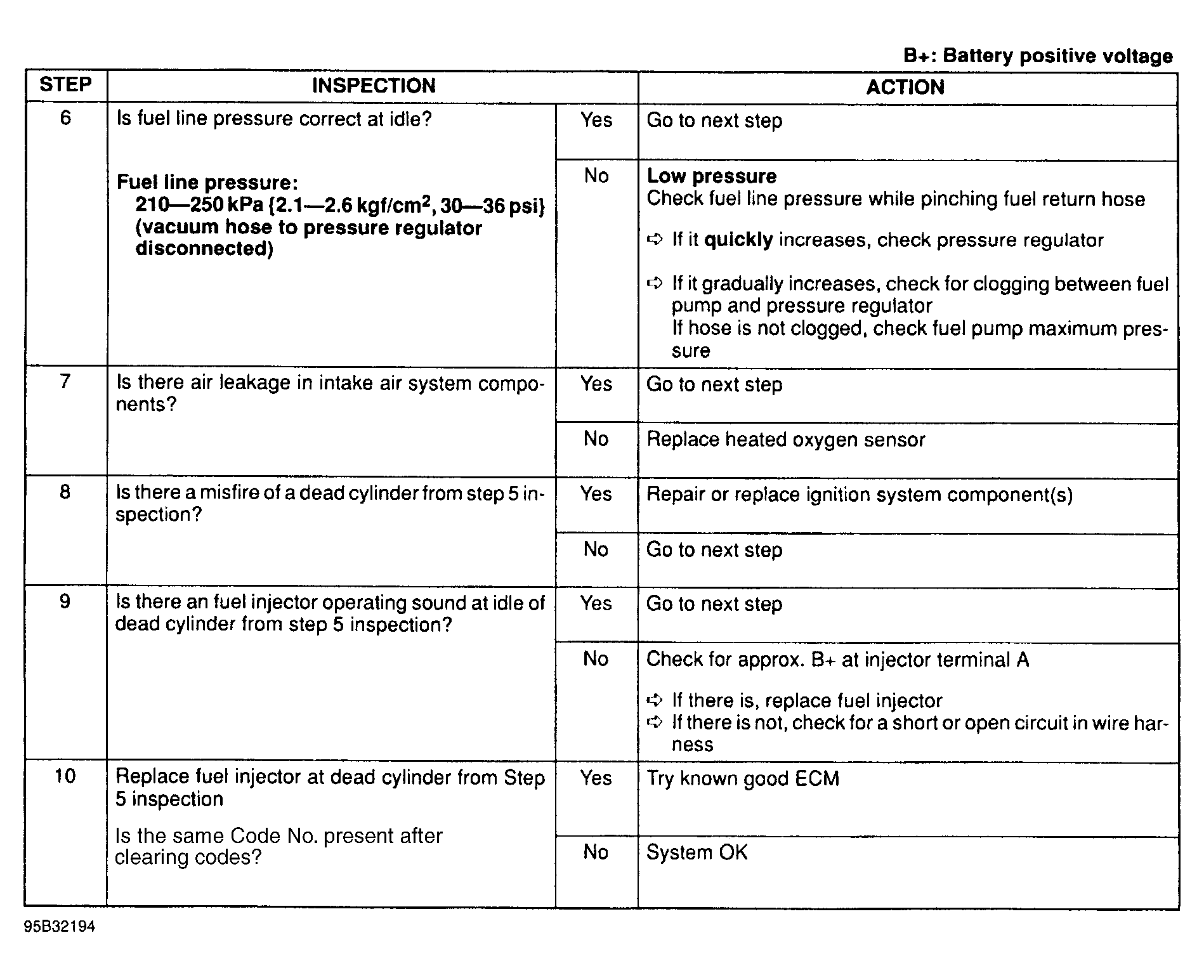

Fig 2: Trouble Code No. 17/24 Heated Oxygen Sensor - Inversion (2 Of 2)
G95B32194

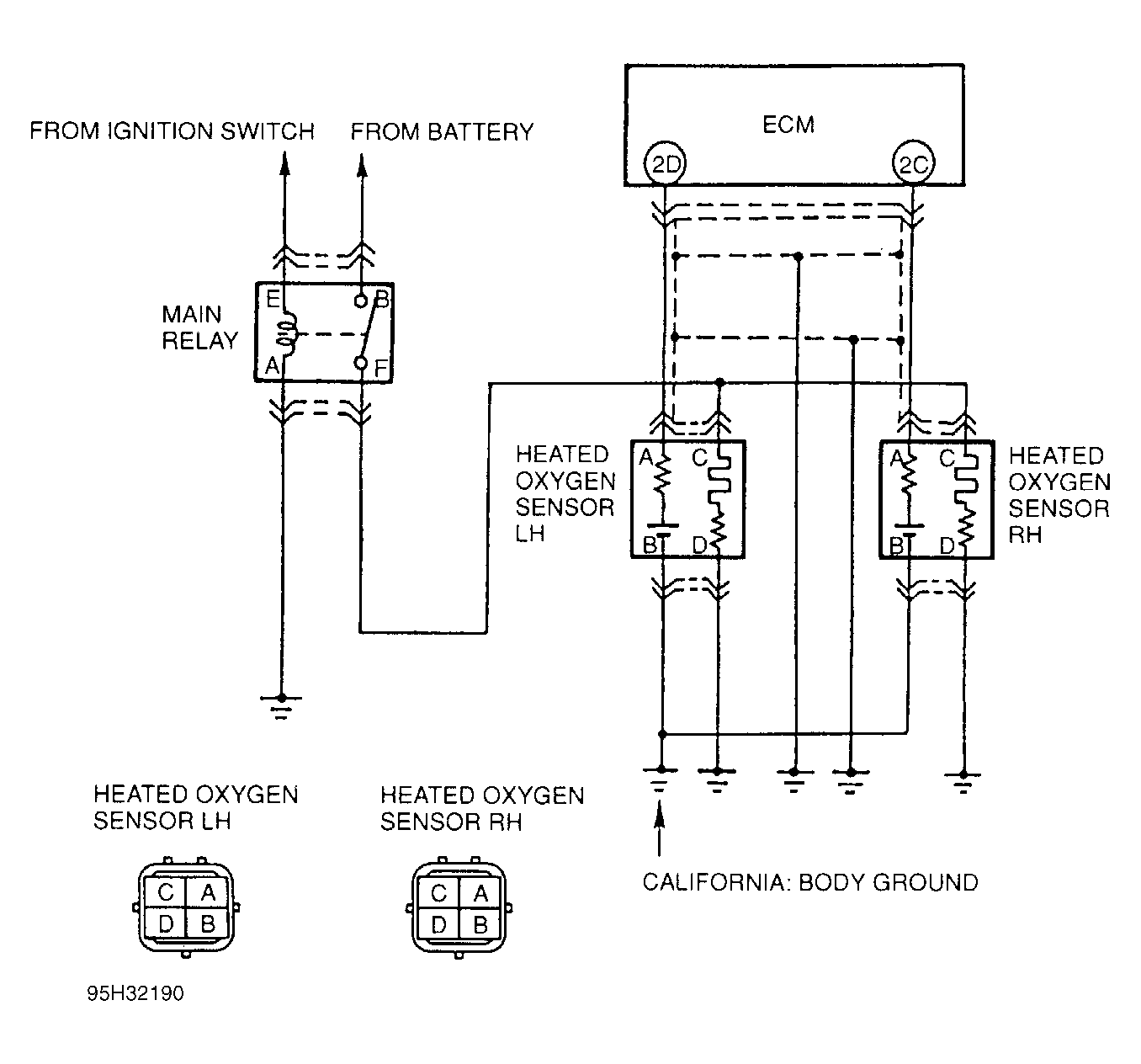

Fig 3: Trouble Code No. 17/24 Heated Oxygen Sensor Circuit Diagram
G95H32190
