Home >> Mazda >> 1995 >> 626 DX, Standard >> Repair and Diagnosis >> Steering >> Steering Column >> Air Bag Disabling & Activating >> Disabling System

Disabling System

  1. Obtain radio code from customer and deactivate audio anti-theft function (if equipped). Turn ignition off. Disconnect and shield negative battery cable. Wait at least one minute for back-up power supply to be depleted. Remove lower cover panel(s) below left side of instrument panel.

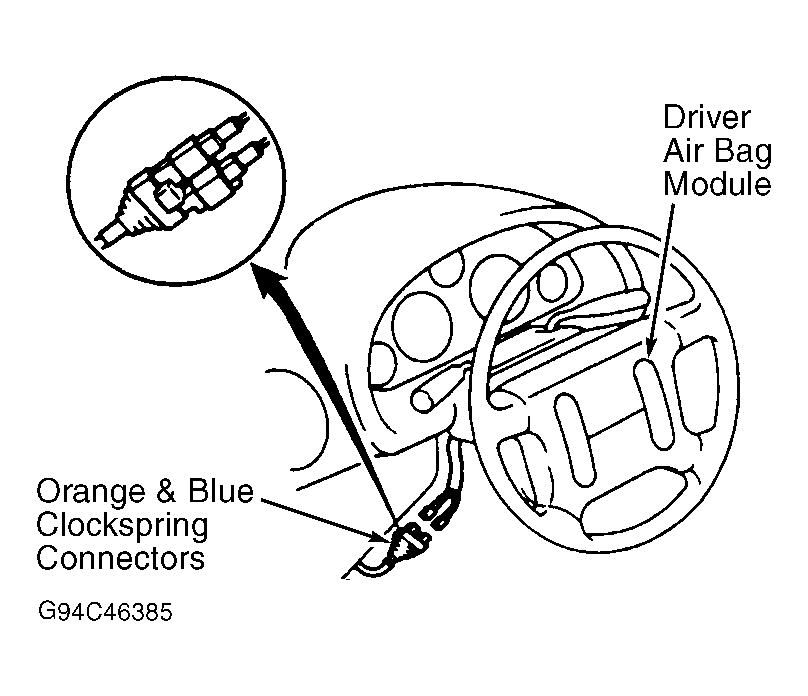

  2. Disconnect Orange and Blue clockspring connectors for driver air bag module. See Figure . Remove glove box compartment. Disconnect Orange and Blue connectors for passenger air bag module. See Figure .
