Code 8: Volume Air Flow Sensor

WARNING: This page is about a different variant/trim than selected.

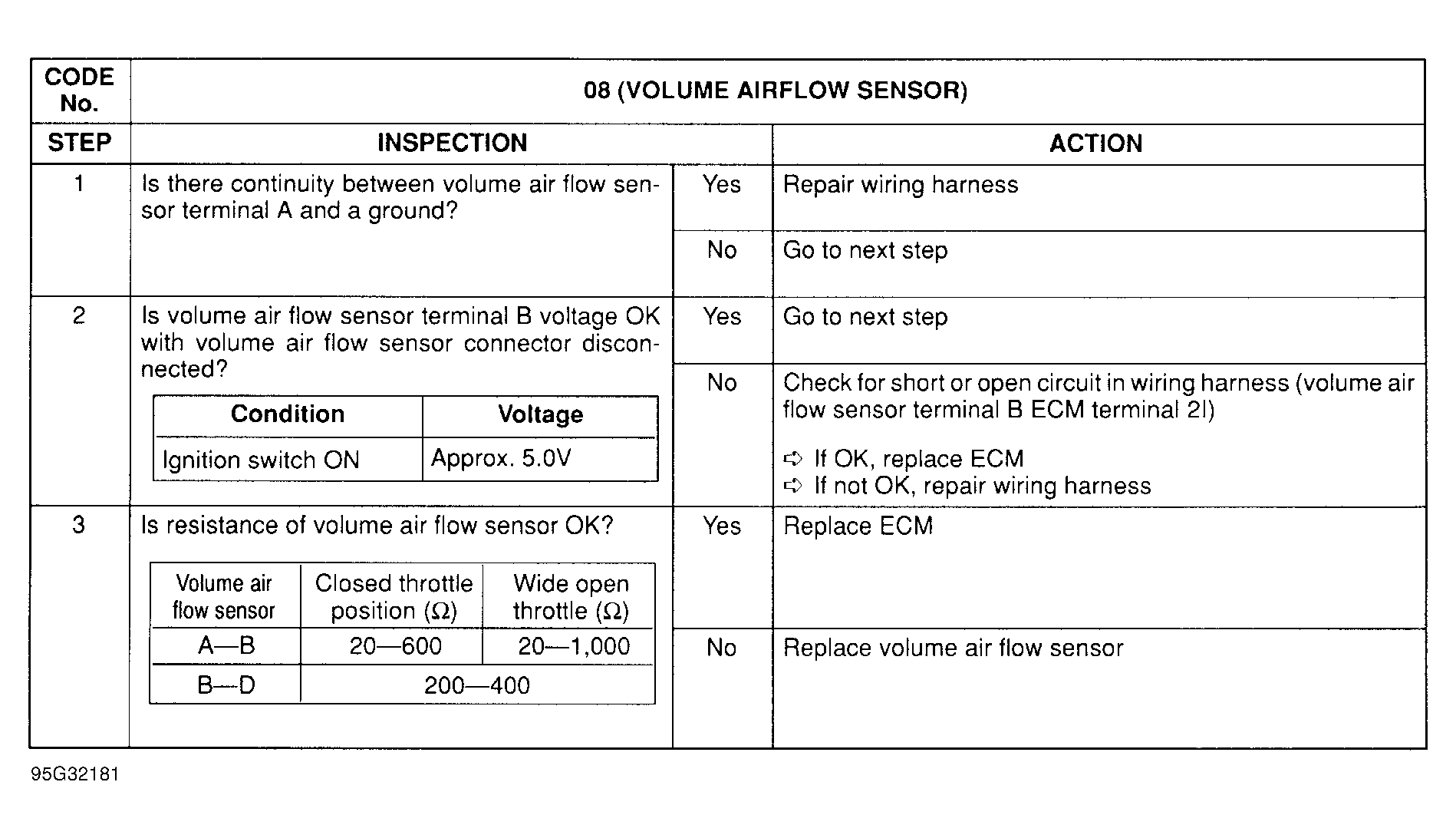

Fig 1: Trouble Code No. 8 Volume Air Flow Sensor
G95G32181
Fig 2: Trouble Code No. 8 Volume Air Flow Sensor Circuit Diagram
G95H32182
