Intake Manifold: Installation

WARNING: This page is about a different variant/trim than selected.
  1. To install fuel injectors, install NEW "O" rings on fuel injector. Coat "O" rings with engine oil. Using twisting motion, install fuel injector in fuel rail so notch on side of fuel injector engages notch in fuel rail.
  2. Install NEW insulators and "O" rings on fuel rail. Install and tighten retaining bolts to specification. See TORQUE SPECIFICATIONS . To install remaining components, reverse removal procedure. Install all intake manifold retaining bolts and nuts before tightening to specification. Tighten all fasteners evenly to specification.
  3. Fill and bleed cooling system. See COOLING SYSTEM BLEEDING  under REMOVAL & INSTALLATION. Ensure accelerator cable has .06-.16" (1.5-4.0 mm) deflection at throttle body when installed. If deflection is not as specified, rotate nut on end of cable at throttle body until specified deflection is obtained.

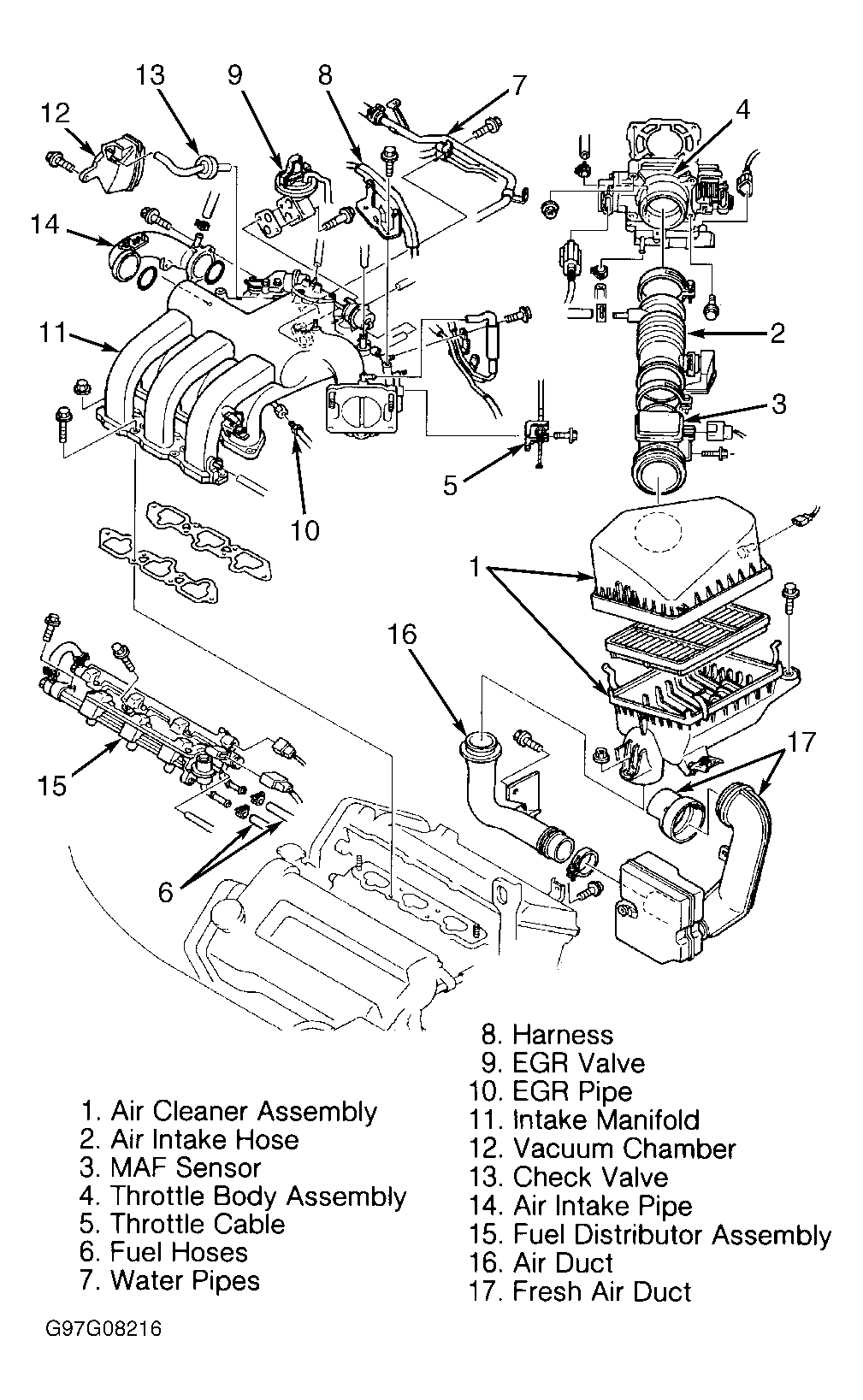

Fig 1: Exploded View Of Intake Manifold & Related Components (Typical)
G97G08216Courtesy of MAZDA MOTORS CORP.
