Code 73: (Injector - Rear Secondary)

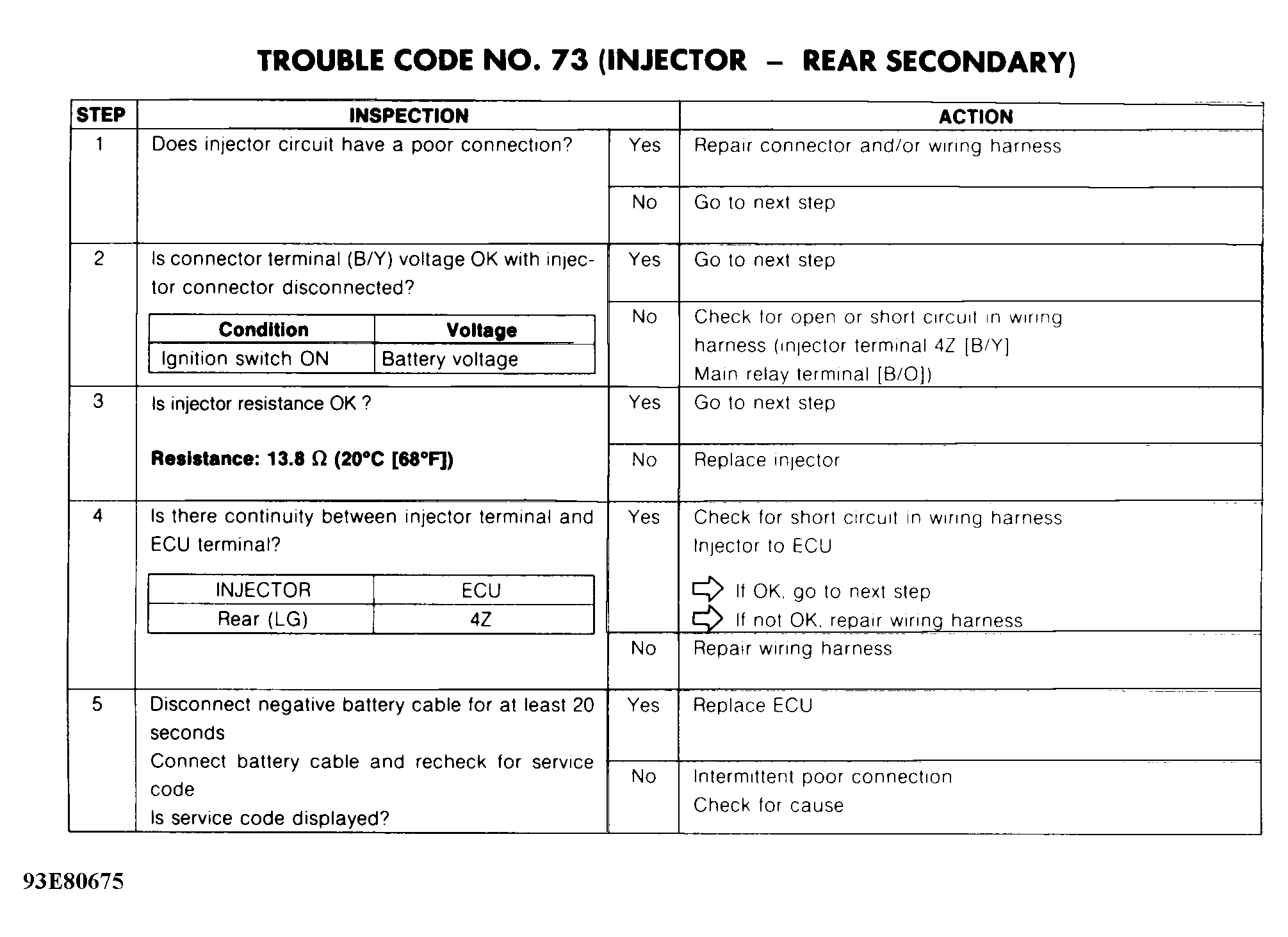

Fig 1: Trouble Code No. 73 Diagnostic Chart) (Injector - Rear Secondary)

G93E80675

Fig 2: Trouble Code No. 73 Schematic (Injector - Rear Secondary)

G93D80674
