Fuel System: Turbocharger: Installation

Install turbocharger with NEW gaskets, "O" rings and exhaust manifold studs. Tighten nuts and bolts to specification. See Fig 2 . See TORQUE SPECIFICATIONS  . To complete installation, reverse removal procedure. Prime oil system.

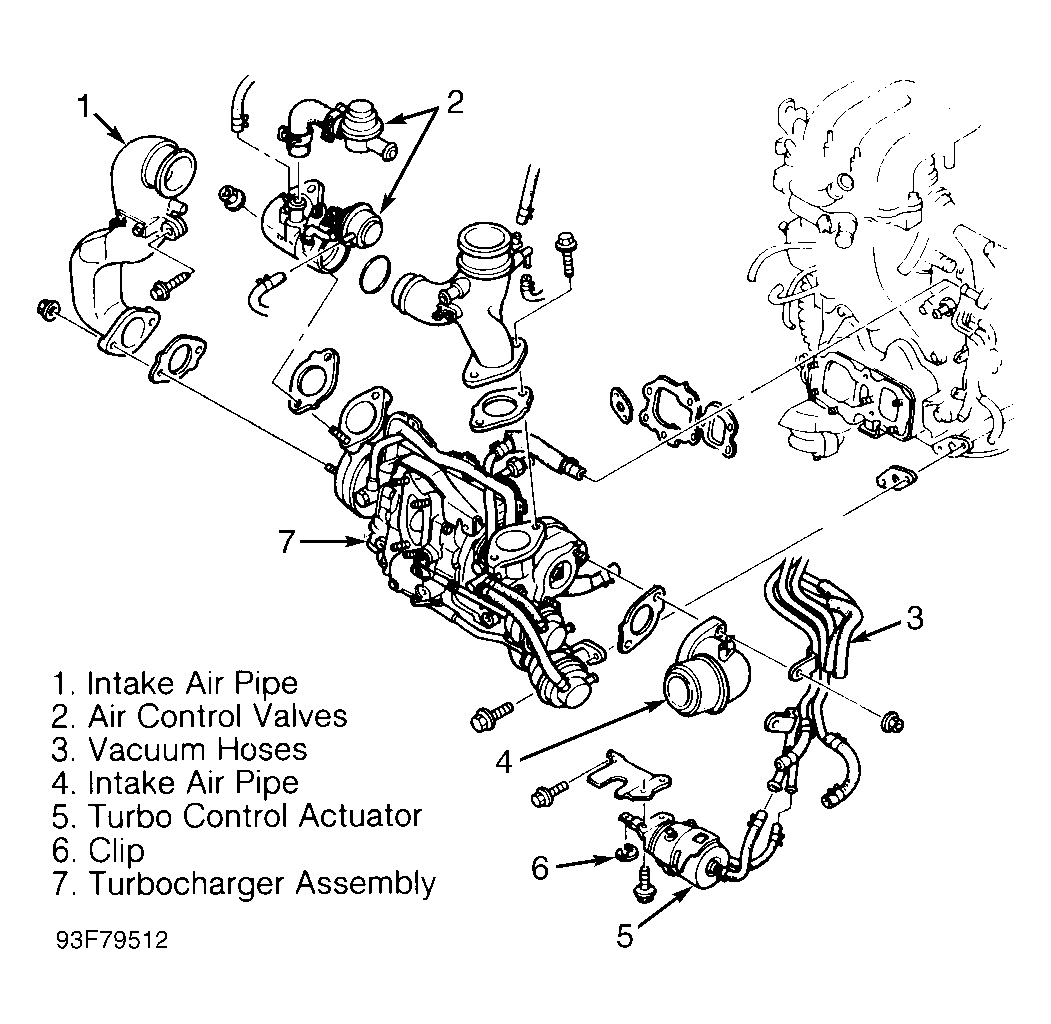

Fig 1: Exploded View Of Turbocharger Assembly

Courtesy of MAZDA MOTORS CORP.

Fig 2: Installing Turbocharger

Courtesy of MAZDA MOTORS CORP.
