Code 29: Diagnostic Chart (EGR Vent Valve Solenoid)
Code 29: Diagnostic Chart (EGR Vent Valve Solenoid)

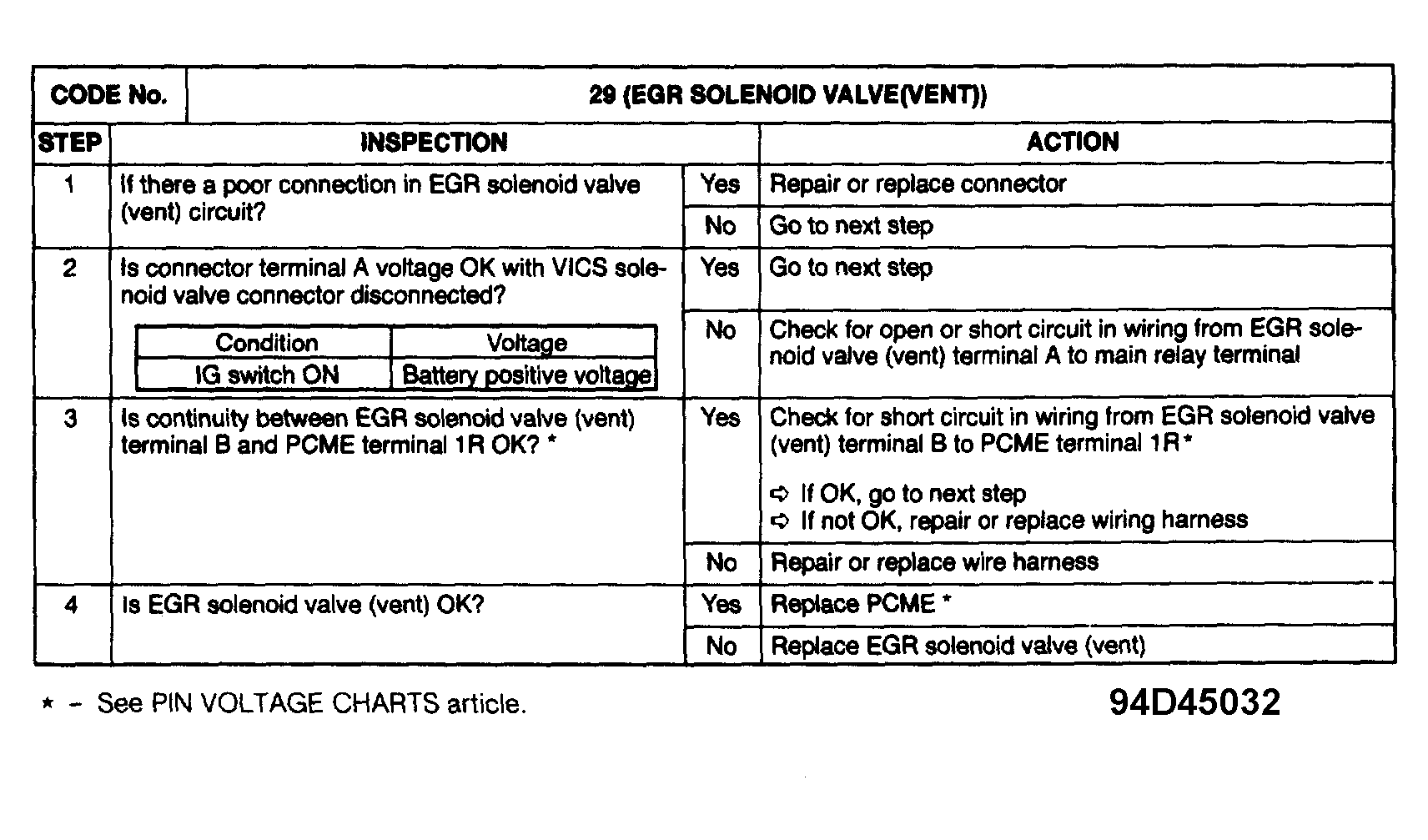

Fig 1: Trouble Code No. 29 Diagnostic Chart (EGR Vent Valve Solenoid)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
