Home >> Mazda >> 1994 >> Protege Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Trouble Code Identification >> Code 28: (EGR Vacuum Valve Solenoid)

Code 28: (EGR Vacuum Valve Solenoid)

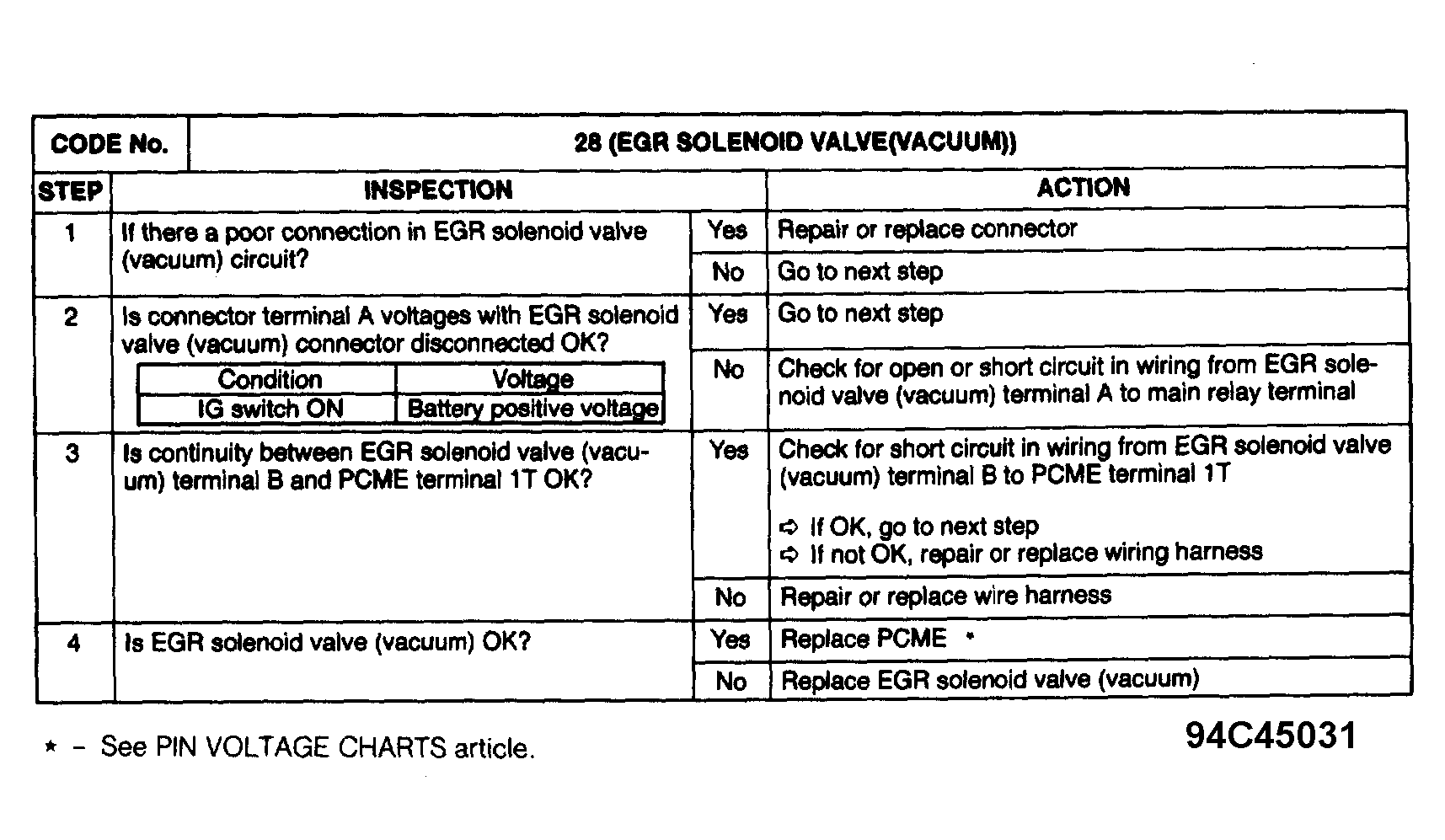

Fig 1: Trouble Code No. 28 Diagnostic Chart (EGR Vacuum Valve Solenoid )

G94C45031

Courtesy of MAZDA MOTORS CORP.
