Code 26: (Purge Control Solenoid Valve)

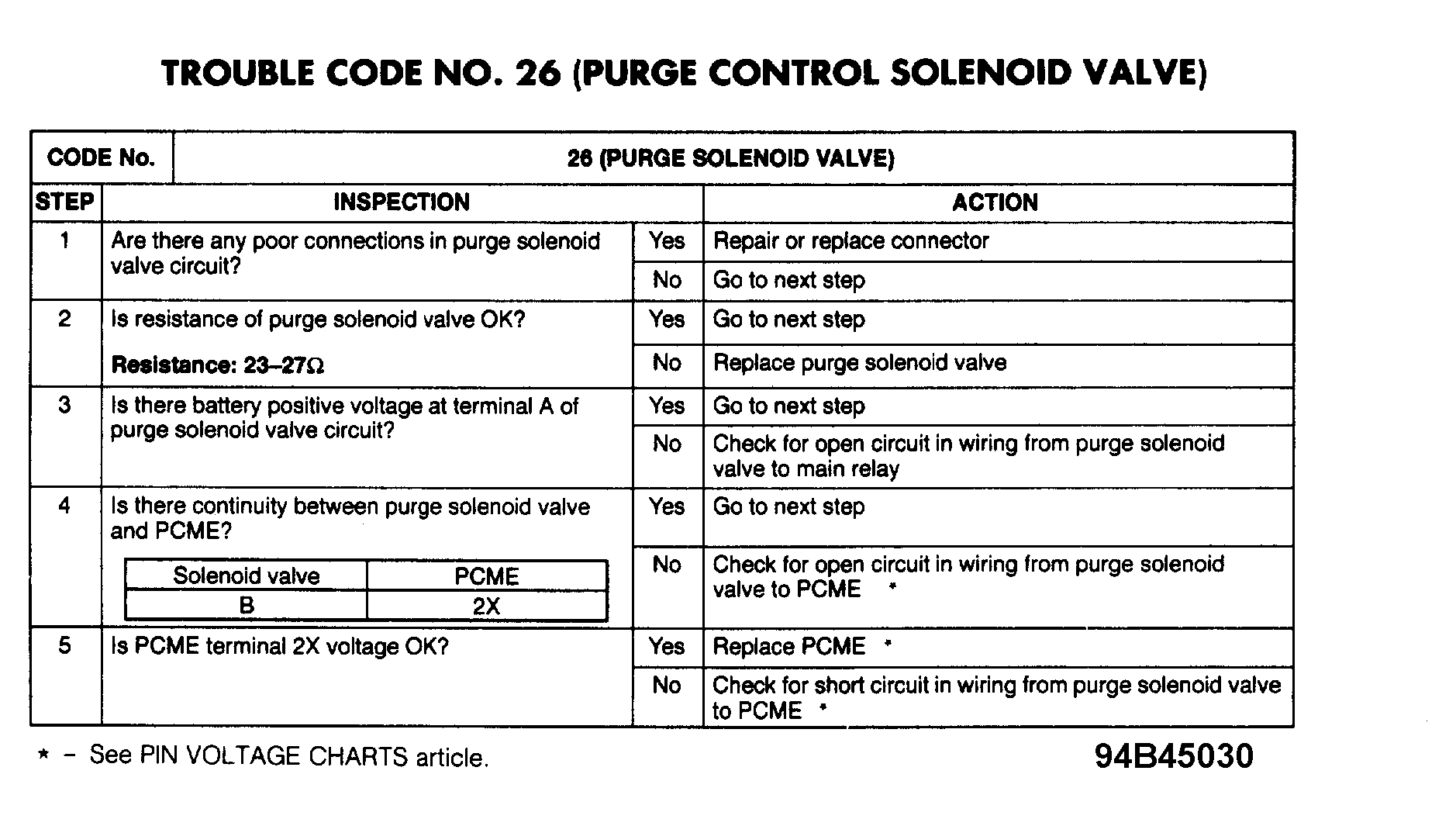

Fig 1: Trouble Code No. 26 Diagnostic Chart (Purge Control Solenoid Valve)

G94B45030

Courtesy of MAZDA MOTORS CORP.
