Code 17: (Oxygen Sensor - Inaccurate)

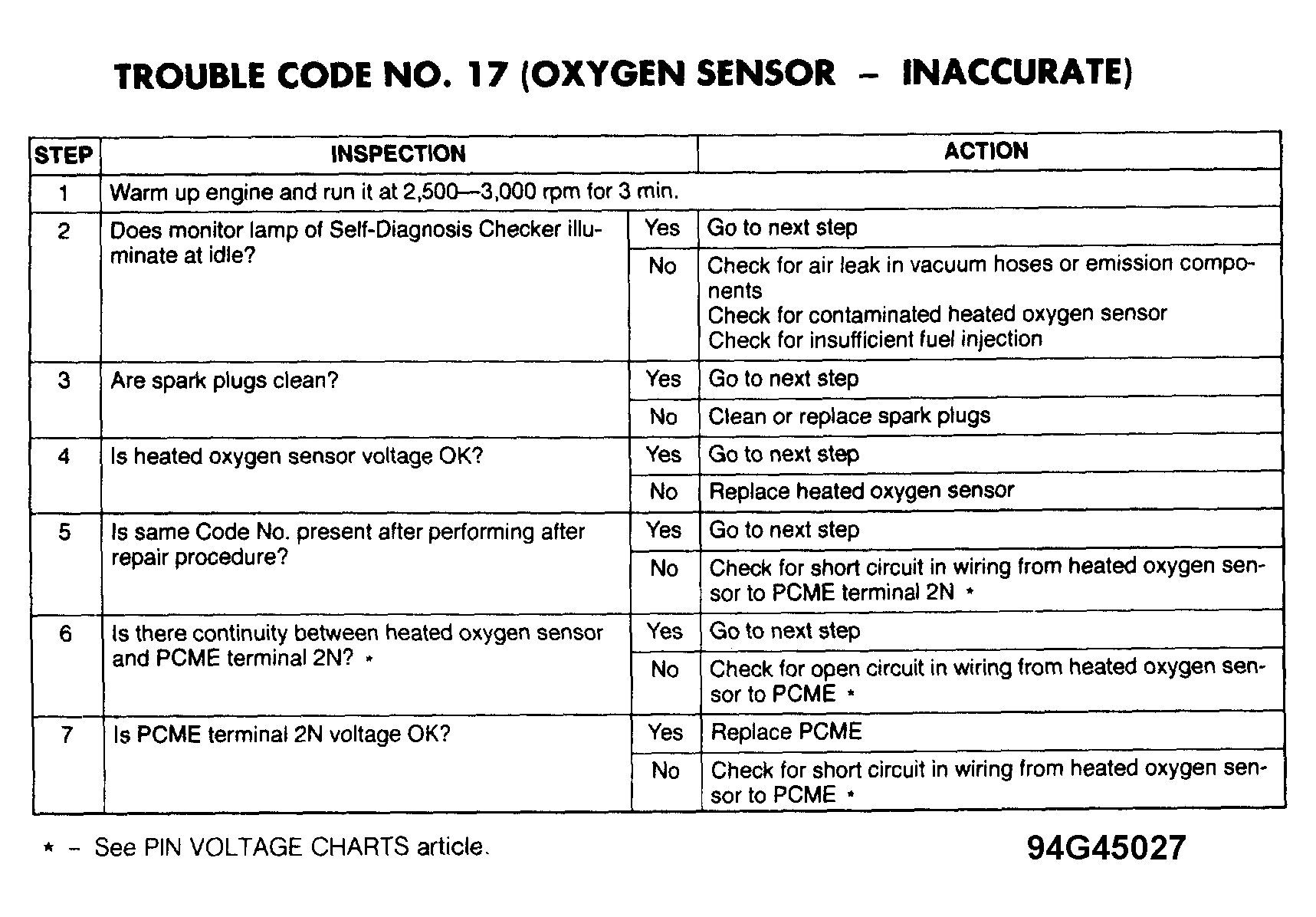

Fig 1: Trouble Code No. 17 Diagnostic Chart (Oxygen Sensor - Inaccurate )
G94G45027Courtesy of MAZDA MOTORS CORP.

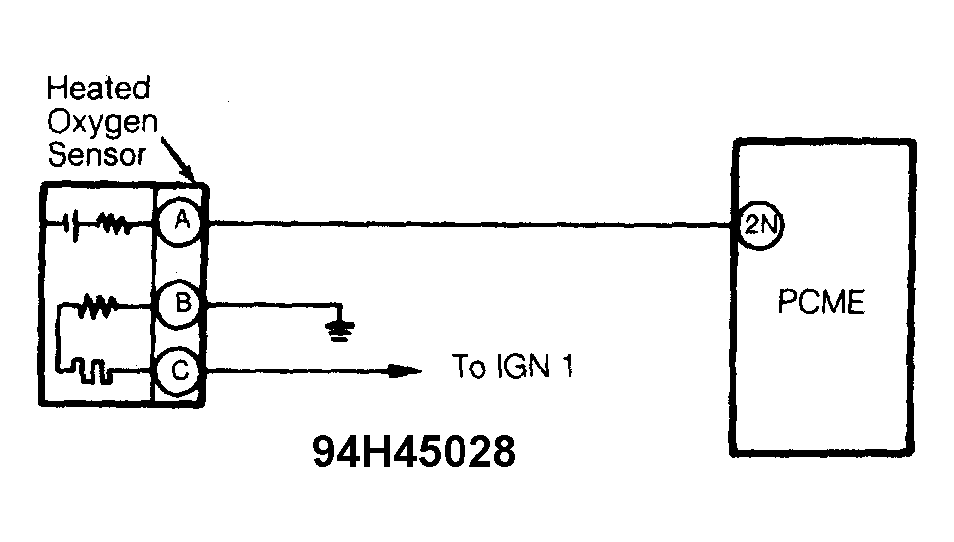

Fig 2: Trouble Code No. 17 Circuit Diagram
G94H45028Courtesy of MAZDA MOTORS CORP.
